MR.VoxelMetricParameters Class Reference

Parameters for building metric function Generated from class MR.VoxelMetricParameters. This is the non-const half of the class. More...

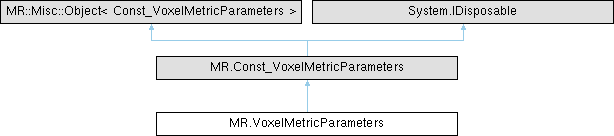

Inheritance diagram for MR.VoxelMetricParameters:

Public Member Functions
unsafe	VoxelMetricParameters ()
	Constructs an empty (default-constructed) instance.
unsafe	VoxelMetricParameters (ulong start, ulong stop, float maxDistRatio, MR.SlicePlane plane, MR.QuarterBit quatersMask)
	Constructs MR.VoxelMetricParameters elementwise.
unsafe	VoxelMetricParameters (MR.Const_VoxelMetricParameters _other)
	Generated from constructor MR.VoxelMetricParameters.VoxelMetricParameters.
	VoxelMetricParameters (VoxelMetricParameters _other)
	Generated from constructor MR.VoxelMetricParameters.VoxelMetricParameters.
unsafe MR.VoxelMetricParameters	assign (MR.Const_VoxelMetricParameters _other)
	Generated from method MR::VoxelMetricParameters::operator=.
Public Member Functions inherited from MR.Const_VoxelMetricParameters
virtual void	Dispose ()
unsafe	Const_VoxelMetricParameters ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_VoxelMetricParameters (ulong start, ulong stop, float maxDistRatio, MR.SlicePlane plane, MR.QuarterBit quatersMask)
	Constructs MR.VoxelMetricParameters elementwise.
unsafe	Const_VoxelMetricParameters (MR.Const_VoxelMetricParameters _other)
	Generated from constructor MR.VoxelMetricParameters.VoxelMetricParameters.
	Const_VoxelMetricParameters (VoxelMetricParameters _other)
	Generated from constructor MR.VoxelMetricParameters.VoxelMetricParameters.

Properties
new unsafe ref ulong	start [get]
	start voxel index
new unsafe ref ulong	stop [get]
	stop voxel index
new unsafe ref float	maxDistRatio [get]
	max distance ratio: if (dist^2(next,start) + dist^2(next,stop) > maxDistRatio^2*dist^2(start,stop)) - candidate is not processed
new unsafe ref MR.SlicePlane	plane [get]
	if not None - builds path in one slice of voxels (make sure start and stop has same main axis coordinate)
new unsafe ref MR.QuarterBit	quatersMask [get]
	quarter of building path, if plane is selected, it should be (LeftLeft | LeftRigth) or (RigthLeft | RightRight) or All
Properties inherited from MR.Const_VoxelMetricParameters
unsafe ulong	start [get]
	start voxel index
unsafe ulong	stop [get]
	stop voxel index
unsafe float	maxDistRatio [get]
	max distance ratio: if (dist^2(next,start) + dist^2(next,stop) > maxDistRatio^2*dist^2(start,stop)) - candidate is not processed
unsafe MR.SlicePlane	plane [get]
	if not None - builds path in one slice of voxels (make sure start and stop has same main axis coordinate)
unsafe MR.QuarterBit	quatersMask [get]
	quarter of building path, if plane is selected, it should be (LeftLeft | LeftRigth) or (RigthLeft | RightRight) or All

Additional Inherited Members
Protected Member Functions inherited from MR.Const_VoxelMetricParameters
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_VoxelMetricParameters
unsafe ulong *	__ref_storage_start
unsafe ulong *	__ref_storage_stop
unsafe float *	__ref_storage_maxDistRatio
unsafe MR.SlicePlane *	__ref_storage_plane
unsafe MR.QuarterBit *	__ref_storage_quatersMask

Detailed Description

Parameters for building metric function Generated from class MR.VoxelMetricParameters. This is the non-const half of the class.

Constructor & Destructor Documentation

VoxelMetricParameters() [1/4]

unsafe MR.VoxelMetricParameters.VoxelMetricParameters ( )

inline

Constructs an empty (default-constructed) instance.

VoxelMetricParameters() [2/4]

unsafe MR.VoxelMetricParameters.VoxelMetricParameters ( ulong start, ulong stop, float maxDistRatio, MR.SlicePlane plane, MR.QuarterBit quatersMask )

inline

Constructs MR.VoxelMetricParameters elementwise.

VoxelMetricParameters() [3/4]

unsafe MR.VoxelMetricParameters.VoxelMetricParameters ( MR.Const_VoxelMetricParameters _other )

inline

Generated from constructor MR.VoxelMetricParameters.VoxelMetricParameters.

VoxelMetricParameters() [4/4]

MR.VoxelMetricParameters.VoxelMetricParameters ( VoxelMetricParameters _other )

inline

Generated from constructor MR.VoxelMetricParameters.VoxelMetricParameters.

Member Function Documentation

assign()

unsafe MR.VoxelMetricParameters MR.VoxelMetricParameters.assign ( MR.Const_VoxelMetricParameters _other )

inline

Generated from method MR::VoxelMetricParameters::operator=.

Property Documentation

maxDistRatio

new unsafe ref float MR.VoxelMetricParameters.maxDistRatio

get

max distance ratio: if (dist^2(next,start) + dist^2(next,stop) > maxDistRatio^2*dist^2(start,stop)) - candidate is not processed

plane

new unsafe ref MR.SlicePlane MR.VoxelMetricParameters.plane

get

if not None - builds path in one slice of voxels (make sure start and stop has same main axis coordinate)

quatersMask

new unsafe ref MR.QuarterBit MR.VoxelMetricParameters.quatersMask

get

quarter of building path, if plane is selected, it should be (LeftLeft | LeftRigth) or (RigthLeft | RightRight) or All

start

new unsafe ref ulong MR.VoxelMetricParameters.start

get

start voxel index

stop

new unsafe ref ulong MR.VoxelMetricParameters.stop

get

stop voxel index

---

The documentation for this class was generated from the following file:

• MRVoxelPath.cs
