MR.WeightedShell.ParametersRegions Class Reference

Generated from class MR.WeightedShell.ParametersRegions. Base classes: Direct: (non-virtual) MR.WeightedShell.ParametersBase This is the non-const half of the class. More...

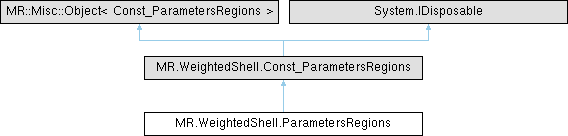

Inheritance diagram for MR.WeightedShell.ParametersRegions:

Public Member Functions
unsafe	ParametersRegions ()
	Constructs an empty (default-constructed) instance.
unsafe	ParametersRegions (MR.WeightedShell._ByValue_ParametersRegions _other)
	Generated from constructor MR.WeightedShell.ParametersRegions.ParametersRegions.
	ParametersRegions (Const_ParametersRegions _other)
	Generated from constructor MR.WeightedShell.ParametersRegions.ParametersRegions.
	ParametersRegions (ParametersRegions _other)
	Generated from constructor MR.WeightedShell.ParametersRegions.ParametersRegions.
unsafe MR.WeightedShell.ParametersRegions	assign (MR.WeightedShell._ByValue_ParametersRegions _other)
	Generated from method MR.WeightedShell.ParametersRegions.operator=.

Static Public Member Functions
static unsafe implicit	operator MR.WeightedShell.ParametersBase (ParametersRegions self)

Properties
new unsafe MR.Std.Vector_MRWeightedShellParametersRegionsRegion	regions [get, protected set]
new unsafe ref float	interpolationDist [get]
new unsafe ref bool	bidirectionalMode [get]
new unsafe ref float	offset [get]
	build iso-surface of minimal distance to points corresponding to this value
new unsafe ref float	voxelSize [get]
new unsafe ref float	numLayers [get]
	number of voxels to compute near the offset (should be left default unless used for debugging)
new unsafe MR.Std.Function_BoolFuncFromFloat	progress [get, protected set]
	Progress callback.

Detailed Description

Generated from class MR.WeightedShell.ParametersRegions. Base classes: Direct: (non-virtual) MR.WeightedShell.ParametersBase This is the non-const half of the class.

Constructor & Destructor Documentation

ParametersRegions() [1/4]

unsafe MR.WeightedShell.ParametersRegions.ParametersRegions ( )

inline

Constructs an empty (default-constructed) instance.

ParametersRegions() [2/4]

unsafe MR.WeightedShell.ParametersRegions.ParametersRegions ( MR.WeightedShell._ByValue_ParametersRegions _other )

inline

Generated from constructor MR.WeightedShell.ParametersRegions.ParametersRegions.

ParametersRegions() [3/4]

MR.WeightedShell.ParametersRegions.ParametersRegions ( Const_ParametersRegions _other )

inline

Generated from constructor MR.WeightedShell.ParametersRegions.ParametersRegions.

ParametersRegions() [4/4]

MR.WeightedShell.ParametersRegions.ParametersRegions ( ParametersRegions _other )

inline

Generated from constructor MR.WeightedShell.ParametersRegions.ParametersRegions.

Member Function Documentation

assign()

unsafe MR.WeightedShell.ParametersRegions MR.WeightedShell.ParametersRegions.assign ( MR.WeightedShell._ByValue_ParametersRegions _other )

inline

Generated from method MR.WeightedShell.ParametersRegions.operator=.

operator MR.WeightedShell.ParametersBase()

static unsafe implicit MR.WeightedShell.ParametersRegions.operator MR.WeightedShell.ParametersBase ( ParametersRegions self )

inlinestatic

Property Documentation

bidirectionalMode

new unsafe ref bool MR.WeightedShell.ParametersRegions.bidirectionalMode

get

if true the distances grow in both directions from each triangle, reaching minimum in the triangle; if false the distances grow to infinity in the direction of triangle's normals, and decrease to minus infinity in the opposite direction

interpolationDist

new unsafe ref float MR.WeightedShell.ParametersRegions.interpolationDist

get

interpolation distance between the weights of the regions determines the sharpness of transitions between different regions

numLayers

new unsafe ref float MR.WeightedShell.ParametersRegions.numLayers

get

number of voxels to compute near the offset (should be left default unless used for debugging)

offset

new unsafe ref float MR.WeightedShell.ParametersRegions.offset

get

build iso-surface of minimal distance to points corresponding to this value

progress

new unsafe MR.Std.Function_BoolFuncFromFloat MR.WeightedShell.ParametersRegions.progress

getprotected set

Progress callback.

regions

new unsafe MR.Std.Vector_MRWeightedShellParametersRegionsRegion MR.WeightedShell.ParametersRegions.regions

getprotected set

list of regions (overlappings are allowed) with corresponding offsets the additional offset in overlaps is set to the average of the regions

voxelSize

new unsafe ref float MR.WeightedShell.ParametersRegions.voxelSize

get

Size of voxel in grid conversions; The user is responsible for setting some positive value here

---

The documentation for this class was generated from the following file:

• MRWeightedPointsShell.cs
