MR.ZCompensateParams Class Reference

Generated from class MR.ZCompensateParams. This is the non-const half of the class. More...

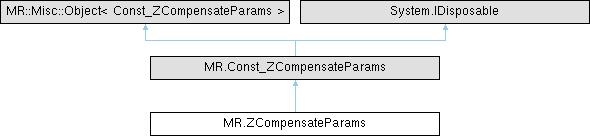

Inheritance diagram for MR.ZCompensateParams:

Public Member Functions
unsafe	ZCompensateParams ()
	Constructs an empty (default-constructed) instance.
unsafe	ZCompensateParams (float maxShift, bool reduceSelfIntersections, float minThickness, MR.Std._ByValue_Function_BoolFuncFromFloat progress)
	Constructs MR.ZCompensateParams elementwise.
unsafe	ZCompensateParams (MR._ByValue_ZCompensateParams _other)
	Generated from constructor MR.ZCompensateParams.ZCompensateParams.
	ZCompensateParams (Const_ZCompensateParams _other)
	Generated from constructor MR.ZCompensateParams.ZCompensateParams.
	ZCompensateParams (ZCompensateParams _other)
	Generated from constructor MR.ZCompensateParams.ZCompensateParams.
unsafe MR.ZCompensateParams	assign (MR._ByValue_ZCompensateParams _other)
	Generated from method MR.ZCompensateParams.operator=.

Properties
new unsafe ref float	maxShift [get]
new unsafe ref bool	reduceSelfIntersections [get]
	if true, limits the movement of each vertex to reduce self-intersections in the mesh
new unsafe ref float	minThickness [get]
	only if (reduceSelfIntersections = true), avoids moving a vertex closer than this distance to another triangle
new unsafe MR.Std.Function_BoolFuncFromFloat	progress [get, protected set]
	to report progress and cancel processing

Detailed Description

Generated from class MR.ZCompensateParams. This is the non-const half of the class.

Constructor & Destructor Documentation

ZCompensateParams() [1/5]

unsafe MR.ZCompensateParams.ZCompensateParams ( )

inline

Constructs an empty (default-constructed) instance.

ZCompensateParams() [2/5]

unsafe MR.ZCompensateParams.ZCompensateParams ( float maxShift, bool reduceSelfIntersections, float minThickness, MR.Std._ByValue_Function_BoolFuncFromFloat progress )

inline

Constructs MR.ZCompensateParams elementwise.

ZCompensateParams() [3/5]

unsafe MR.ZCompensateParams.ZCompensateParams ( MR._ByValue_ZCompensateParams _other )

inline

Generated from constructor MR.ZCompensateParams.ZCompensateParams.

ZCompensateParams() [4/5]

MR.ZCompensateParams.ZCompensateParams ( Const_ZCompensateParams _other )

inline

Generated from constructor MR.ZCompensateParams.ZCompensateParams.

ZCompensateParams() [5/5]

MR.ZCompensateParams.ZCompensateParams ( ZCompensateParams _other )

inline

Generated from constructor MR.ZCompensateParams.ZCompensateParams.

Member Function Documentation

assign()

unsafe MR.ZCompensateParams MR.ZCompensateParams.assign ( MR._ByValue_ZCompensateParams _other )

inline

Generated from method MR.ZCompensateParams.operator=.

Property Documentation

maxShift

new unsafe ref float MR.ZCompensateParams.maxShift

get

shift of mesh parts orthogonal to Z-axis with normal against Z-axis; for other mesh parts the shift will be less and will depend on the angle between point pseudo-normal and Z-axis

minThickness

new unsafe ref float MR.ZCompensateParams.minThickness

get

only if (reduceSelfIntersections = true), avoids moving a vertex closer than this distance to another triangle

progress

new unsafe MR.Std.Function_BoolFuncFromFloat MR.ZCompensateParams.progress

getprotected set

to report progress and cancel processing

reduceSelfIntersections

new unsafe ref bool MR.ZCompensateParams.reduceSelfIntersections

get

if true, limits the movement of each vertex to reduce self-intersections in the mesh

---

The documentation for this class was generated from the following file:

• MROffsetVerts.cs
