MR.AABBTreePolyline3 Class Reference

bounding volume hierarchy for line segments Generated from class MR.AABBTreePolyline3. Base classes: Direct: (non-virtual) MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box3f>> This is the non-const half of the class. More...

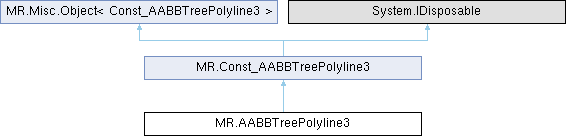

Inheritance diagram for MR.AABBTreePolyline3:

Public Member Functions
unsafe	AABBTreePolyline3 ()
	Constructs an empty (default-constructed) instance.
unsafe	AABBTreePolyline3 (MR._ByValue_AABBTreePolyline3 _other)
	Generated from constructor MR.AABBTreePolyline3.AABBTreePolyline3.
unsafe	AABBTreePolyline3 (MR.Const_Polyline3 polyline)
	creates tree for given polyline Generated from constructor MR.AABBTreePolyline3.AABBTreePolyline3.
unsafe	AABBTreePolyline3 (MR.Const_Mesh mesh, MR.Const_UndirectedEdgeBitSet edgeSet)
	creates tree for selected edges on the mesh (only for 3d tree) Generated from constructor MR.AABBTreePolyline3.AABBTreePolyline3.
unsafe MR.AABBTreePolyline3	assign (MR._ByValue_AABBTreePolyline3 _other)
	Generated from method MR::AABBTreePolyline3::operator=.
unsafe void	getLeafOrderAndReset (MR.UndirectedEdgeBMap leafMap)
	fills map: LeafId -> leaf#, then resets leaf order to 0,1,2,...; buffer in leafMap must be resized before the call, and caller is responsible for filling missing leaf elements Generated from method MR.AABBTreePolyline3.getLeafOrderAndReset.

Static Public Member Functions
static unsafe implicit	operator MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox3f (AABBTreePolyline3 self)

Detailed Description

bounding volume hierarchy for line segments Generated from class MR.AABBTreePolyline3. Base classes: Direct: (non-virtual) MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box3f>> This is the non-const half of the class.

Constructor & Destructor Documentation

AABBTreePolyline3() [1/4]

unsafe MR.AABBTreePolyline3.AABBTreePolyline3 ( )

inline

Constructs an empty (default-constructed) instance.

AABBTreePolyline3() [2/4]

unsafe MR.AABBTreePolyline3.AABBTreePolyline3 ( MR._ByValue_AABBTreePolyline3 _other )

inline

Generated from constructor MR.AABBTreePolyline3.AABBTreePolyline3.

AABBTreePolyline3() [3/4]

unsafe MR.AABBTreePolyline3.AABBTreePolyline3 ( MR.Const_Polyline3 polyline )

inline

creates tree for given polyline Generated from constructor MR.AABBTreePolyline3.AABBTreePolyline3.

AABBTreePolyline3() [4/4]

unsafe MR.AABBTreePolyline3.AABBTreePolyline3 ( MR.Const_Mesh mesh, MR.Const_UndirectedEdgeBitSet edgeSet )

inline

creates tree for selected edges on the mesh (only for 3d tree) Generated from constructor MR.AABBTreePolyline3.AABBTreePolyline3.

Member Function Documentation

assign()

unsafe MR.AABBTreePolyline3 MR.AABBTreePolyline3.assign ( MR._ByValue_AABBTreePolyline3 _other )

inline

Generated from method MR::AABBTreePolyline3::operator=.

getLeafOrderAndReset()

unsafe void MR.AABBTreePolyline3.getLeafOrderAndReset ( MR.UndirectedEdgeBMap leafMap )

inline

fills map: LeafId -> leaf#, then resets leaf order to 0,1,2,...; buffer in leafMap must be resized before the call, and caller is responsible for filling missing leaf elements Generated from method MR.AABBTreePolyline3.getLeafOrderAndReset.

operator MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox3f()

unsafe implicit MR.AABBTreePolyline3.operator MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox3f ( AABBTreePolyline3 self )

inlinestatic

---

The documentation for this class was generated from the following file:

• MRAABBTreePolyline.cs
