Box given by its min- and max- corners Generated from class MR.Box1f. Derived classes: Direct: (non-virtual) MR.SimpleVolumeMinMax MR.VdbVolume This is the non-const reference to the struct. More...

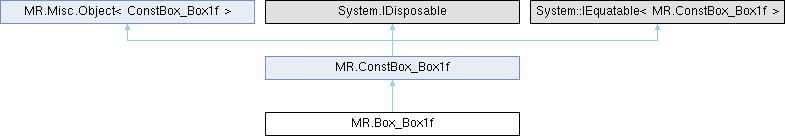

Inheritance diagram for MR.Box_Box1f:

Public Member Functions
unsafe	Box_Box1f (Box1f other)
	Make a copy of a struct. (Even though we initially pass `is_owning: false`, we then use the copy constructor to produce an owning instance.)

unsafe	Box_Box1f (ConstBox_Box1f _other)
	Generated copy constructor.

void	Assign (ConstBox_Box1f _other)
	Generated copy assignment.

unsafe	Box_Box1f ()
	Constructs an empty (default-constructed) instance.

unsafe	Box_Box1f (float min, float max)
	Generated from constructor `MR.Box1f.Box1f`.

unsafe	Box_Box1f (MR.Const_NoInit _1)
	Generated from constructor `MR.Box1f.Box1f`.

unsafe void	include (float pt)
	minimally increases the box to include given point Generated from method `MR.Box1f.include`.

unsafe void	include (in MR.Box1f b)
	minimally increases the box to include another box Generated from method `MR.Box1f.include`.

unsafe ref MR.Box1f	intersect (in MR.Box1f b)
	Generated from method `MR.Box1f.intersect`.

Public Member Functions inherited from MR.ConstBox_Box1f
virtual void	Dispose ()

unsafe	ConstBox_Box1f (Box1f other)
	Make a copy of a struct. (Even though we initially pass `is_owning: false`, we then use the copy constructor to produce an owning instance.)

unsafe	ConstBox_Box1f (ConstBox_Box1f _other)
	Generated copy constructor.

unsafe	ConstBox_Box1f ()
	Constructs an empty (default-constructed) instance.

unsafe	ConstBox_Box1f (float min, float max)
	Generated from constructor `MR.Box1f.Box1f`.

unsafe	ConstBox_Box1f (MR.Const_NoInit _1)
	Generated from constructor `MR.Box1f.Box1f`.

unsafe bool	valid ()
	true if the box contains at least one point Generated from method `MR.Box1f.valid`.

unsafe float	center ()
	computes center of the box Generated from method `MR.Box1f.center`.

unsafe float	corner (bool c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method `MR.Box1f.corner`.

unsafe float	size ()
	computes size of the box in all dimensions Generated from method `MR.Box1f.size`.

unsafe float	diagonal ()
	computes length from min to max Generated from method `MR.Box1f.diagonal`.

unsafe float	volume ()
	computes the volume of this box Generated from method `MR.Box1f.volume`.

unsafe bool	contains (float pt)
	checks whether given point is inside (including the surface) of this box Generated from method `MR.Box1f.contains`.

unsafe bool	contains (in MR.Box1f otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method `MR.Box1f.contains`.

unsafe float	getBoxClosestPointTo (float pt)
	returns closest point in the box to given point Generated from method `MR.Box1f.getBoxClosestPointTo`.

unsafe bool	intersects (in MR.Box1f b)
	checks whether this box intersects or touches given box Generated from method `MR.Box1f.intersects`.

unsafe MR.Box1f	intersection (in MR.Box1f b)
	computes intersection between this and other box Generated from method `MR.Box1f.intersection`.

unsafe float	getDistanceSq (in MR.Box1f b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method `MR.Box1f.getDistanceSq`.

unsafe float	getDistanceSq (float pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method `MR.Box1f.getDistanceSq`.

unsafe float	getProjection (float pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method `MR.Box1f.getProjection`.

unsafe MR.Box1f	expanded (float expansion)
	decreases min and increased max on given value Generated from method `MR.Box1f.expanded`.

unsafe MR.Box1f	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method `MR.Box1f.insignificantlyExpanded`.

bool	Equals (MR.ConstBox_Box1f? a)

override bool	Equals (object? other)

Properties
new ref float	min `[get]`

new ref float	max `[get]`

unsafe new ref float	this[int e] `[get]`
	Generated from method `MR.Box1f.operator[]`.

Properties inherited from MR.ConstBox_Box1f
ref readonly float	min `[get]`

ref readonly float	max `[get]`

static unsafe int	Elements `[get]`

unsafe float	this[int e] `[get]`
	min/max access by 0/1 index Generated from method `MR.Box1f.operator[]`.

Additional Inherited Members
Static Public Member Functions inherited from MR.ConstBox_Box1f
static implicit	operator ConstBox_Box1f (Box1f other)
	Convert from a struct by copying it. Note that only `ConstBox_Box1f` has this conversion, `Box_Box1f` intentionally doesn't.

static unsafe MR.Box1f	fromMinAndSize (float min, float size)
	Generated from method `MR.Box1f.fromMinAndSize`.

static unsafe bool	getMinBoxCorner (float n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method `MR.Box1f.getMinBoxCorner`.

static unsafe bool	getMaxBoxCorner (float n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method `MR.Box1f.getMaxBoxCorner`.

static unsafe bool	operator== (MR.ConstBox_Box1f _this, MR.ConstBox_Box1f a)
	Generated from method `MR.Box1f.operator==`.

static unsafe bool	operator!= (MR.ConstBox_Box1f _this, MR.ConstBox_Box1f a)

Protected Member Functions inherited from MR.ConstBox_Box1f
virtual unsafe void	Dispose (bool disposing)

Static Protected Attributes inherited from MR.ConstBox_Box1f
static unsafe int *	__ref_storage_Elements

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box1f. Derived classes: Direct: (non-virtual) MR.SimpleVolumeMinMax MR.VdbVolume This is the non-const reference to the struct.

Constructor & Destructor Documentation

◆ Box_Box1f() [1/5]

unsafe MR.Box_Box1f.Box_Box1f ( Box1f other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

◆ Box_Box1f() [2/5]

unsafe MR.Box_Box1f.Box_Box1f ( ConstBox_Box1f _other )

inline

Generated copy constructor.

◆ Box_Box1f() [3/5]

unsafe MR.Box_Box1f.Box_Box1f ( )

inline

Constructs an empty (default-constructed) instance.

◆ Box_Box1f() [4/5]

unsafe MR.Box_Box1f.Box_Box1f	(	float	min,
		float	max )

inline

Generated from constructor MR.Box1f.Box1f.

◆ Box_Box1f() [5/5]

unsafe MR.Box_Box1f.Box_Box1f ( MR.Const_NoInit _1 )

inline

Generated from constructor MR.Box1f.Box1f.

Member Function Documentation

◆ Assign()

void MR.Box_Box1f.Assign ( ConstBox_Box1f _other )

inline

Generated copy assignment.

◆ include() [1/2]

unsafe void MR.Box_Box1f.include ( float pt )

inline

minimally increases the box to include given point Generated from method MR.Box1f.include.

◆ include() [2/2]

unsafe void MR.Box_Box1f.include ( in MR.Box1f b )

inline

minimally increases the box to include another box Generated from method MR.Box1f.include.

◆ intersect()

unsafe ref MR.Box1f MR.Box_Box1f.intersect ( in MR.Box1f b )

inline

Generated from method MR.Box1f.intersect.

Property Documentation

◆ max

new ref float MR.Box_Box1f.max

get

◆ min

new ref float MR.Box_Box1f.min

get

◆ this[int e]

unsafe new ref float MR.Box_Box1f.this[int e]

get

Generated from method MR.Box1f.operator[].

The documentation for this class was generated from the following file:

MRBox.cs
