MR.VdbVolume Class Reference

represents a box in 3D space subdivided on voxels stored in T; and stores minimum and maximum values among all valid voxels Generated from class MR.VdbVolume. Base classes: Direct: (non-virtual) MR.VoxelsVolume<MR.FloatGrid> MR.Box1f This is the non-const half of the class. More...

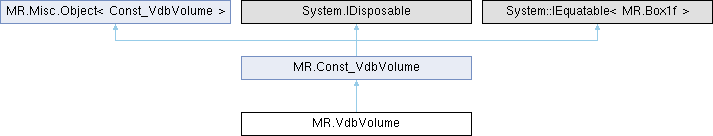

Inheritance diagram for MR.VdbVolume:

Public Member Functions
unsafe	VdbVolume ()
	Constructs an empty (default-constructed) instance.
unsafe	VdbVolume (MR._ByValue_VdbVolume _other)
	Generated from constructor MR.VdbVolume.VdbVolume.
unsafe MR.VdbVolume	assign (MR._ByValue_VdbVolume _other)
	Generated from method MR.VdbVolume.operator=.
unsafe ref MR.Box1f	intersect (in MR.Box1f b)
	Generated from method MR.VdbVolume.intersect.
Public Member Functions inherited from MR.Const_VdbVolume
virtual void	Dispose ()
unsafe	Const_VdbVolume ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_VdbVolume (MR._ByValue_VdbVolume _other)
	Generated from constructor MR.VdbVolume.VdbVolume.
unsafe ulong	heapBytes ()
	Generated from method MR.VdbVolume.heapBytes.
unsafe bool	valid ()
	true if the box contains at least one point Generated from method MR.VdbVolume.valid.
unsafe float	center ()
	computes center of the box Generated from method MR.VdbVolume.center.
unsafe float	corner (bool c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.VdbVolume.corner.
unsafe float	size ()
	computes size of the box in all dimensions Generated from method MR.VdbVolume.size.
unsafe float	diagonal ()
	computes length from min to max Generated from method MR.VdbVolume.diagonal.
unsafe float	volume ()
	computes the volume of this box Generated from method MR.VdbVolume.volume.
unsafe float	getBoxClosestPointTo (float pt)
	returns closest point in the box to given point Generated from method MR.VdbVolume.getBoxClosestPointTo.
unsafe bool	intersects (in MR.Box1f b)
	checks whether this box intersects or touches given box Generated from method MR.VdbVolume.intersects.
unsafe MR.Box1f	intersection (in MR.Box1f b)
	computes intersection between this and other box Generated from method MR.VdbVolume.intersection.
unsafe float	getProjection (float pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.VdbVolume.getProjection.
unsafe MR.Box1f	expanded (float expansion)
	decreases min and increased max on given value Generated from method MR.VdbVolume.expanded.
unsafe MR.Box1f	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method MR.VdbVolume.insignificantlyExpanded.
bool	Equals (MR.Box1f a)
override bool	Equals (object? other)

Static Public Member Functions
static unsafe implicit	operator MR.VoxelsVolume_MRFloatGrid (VdbVolume self)
static unsafe implicit	operator MR.Box_Box1f (VdbVolume self)
Static Public Member Functions inherited from MR.Const_VdbVolume
static unsafe implicit	operator MR.Const_VoxelsVolume_MRFloatGrid (Const_VdbVolume self)
static unsafe implicit	operator MR.ConstBox_Box1f (Const_VdbVolume self)
static unsafe MR.Box1f	fromMinAndSize (float min, float size)
	Generated from method MR.VdbVolume.fromMinAndSize.
static unsafe bool	getMinBoxCorner (float n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.VdbVolume.getMinBoxCorner.
static unsafe bool	getMaxBoxCorner (float n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.VdbVolume.getMaxBoxCorner.
static unsafe bool	operator== (MR.Const_VdbVolume _this, in MR.Box1f a)
	Generated from method MR.VdbVolume.operator==.
static unsafe bool	operator!= (MR.Const_VdbVolume _this, in MR.Box1f a)

Properties
new unsafe MR.FloatGrid	data [get]
new unsafe ref MR.Vector3i	dims [get]
new unsafe ref MR.Vector3f	voxelSize [get]
new unsafe ref float	min [get]
new unsafe ref float	max [get]
Properties inherited from MR.Const_VdbVolume
unsafe MR.Const_FloatGrid	data [get]
unsafe ref readonly MR.Vector3i	dims [get]
unsafe ref readonly MR.Vector3f	voxelSize [get]
static unsafe int	Elements [get]
unsafe float	min [get]
unsafe float	max [get]
Properties inherited from MR.Misc.Object< Const_VdbVolume >
virtual bool	_IsOwning [get]
	Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.

Additional Inherited Members
Protected Member Functions inherited from MR.Const_VdbVolume
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Misc.Object< Const_VdbVolume >
bool	_IsOwningVal

Detailed Description

represents a box in 3D space subdivided on voxels stored in T; and stores minimum and maximum values among all valid voxels Generated from class MR.VdbVolume. Base classes: Direct: (non-virtual) MR.VoxelsVolume<MR.FloatGrid> MR.Box1f This is the non-const half of the class.

---

The documentation for this class was generated from the following file:

• MRVoxelsVolume.cs
