MR.Box_Box3i Class Reference

Box given by its min- and max- corners Generated from class MR.Box3i. This is the non-const reference to the struct. More...

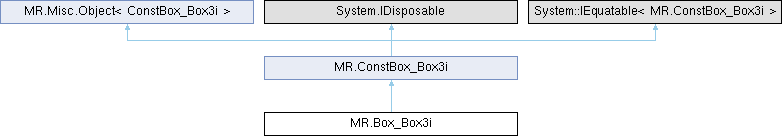

Inheritance diagram for MR.Box_Box3i:

Public Member Functions
unsafe	Box_Box3i (Box3i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	Box_Box3i (ConstBox_Box3i _other)
	Generated copy constructor.
void	Assign (ConstBox_Box3i _other)
	Generated copy assignment.
unsafe	Box_Box3i ()
	Constructs an empty (default-constructed) instance.
unsafe	Box_Box3i (in MR.Vector3i min, in MR.Vector3i max)
	Generated from constructor MR.Box3i.Box3i.
unsafe	Box_Box3i (MR.Const_NoInit _1)
	Generated from constructor MR.Box3i.Box3i.
unsafe void	include (in MR.Vector3i pt)
	minimally increases the box to include given point Generated from method MR.Box3i.include.
unsafe void	include (in MR.Box3i b)
	minimally increases the box to include another box Generated from method MR.Box3i.include.
unsafe ref MR.Box3i	intersect (in MR.Box3i b)
	Generated from method MR.Box3i.intersect.
Public Member Functions inherited from MR.ConstBox_Box3i
virtual void	Dispose ()
unsafe	ConstBox_Box3i (Box3i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	ConstBox_Box3i (ConstBox_Box3i _other)
	Generated copy constructor.
unsafe	ConstBox_Box3i ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Box3i (in MR.Vector3i min, in MR.Vector3i max)
	Generated from constructor MR.Box3i.Box3i.
unsafe	ConstBox_Box3i (MR.Const_NoInit _1)
	Generated from constructor MR.Box3i.Box3i.
unsafe bool	valid ()
	true if the box contains at least one point Generated from method MR.Box3i.valid.
unsafe MR.Vector3i	center ()
	computes center of the box Generated from method MR.Box3i.center.
unsafe MR.Vector3i	corner (in MR.Vector3b c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box3i.corner.
unsafe MR.Vector3i	size ()
	computes size of the box in all dimensions Generated from method MR.Box3i.size.
unsafe int	diagonal ()
	computes length from min to max Generated from method MR.Box3i.diagonal.
unsafe int	volume ()
	computes the volume of this box Generated from method MR.Box3i.volume.
unsafe bool	contains (in MR.Vector3i pt)
	checks whether given point is inside (including the surface) of this box Generated from method MR.Box3i.contains.
unsafe bool	contains (in MR.Box3i otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box3i.contains.
unsafe MR.Vector3i	getBoxClosestPointTo (in MR.Vector3i pt)
	returns closest point in the box to given point Generated from method MR.Box3i.getBoxClosestPointTo.
unsafe bool	intersects (in MR.Box3i b)
	checks whether this box intersects or touches given box Generated from method MR.Box3i.intersects.
unsafe MR.Box3i	intersection (in MR.Box3i b)
	computes intersection between this and other box Generated from method MR.Box3i.intersection.
unsafe int	getDistanceSq (in MR.Box3i b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box3i.getDistanceSq.
unsafe int	getDistanceSq (in MR.Vector3i pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box3i.getDistanceSq.
unsafe MR.Vector3i	getProjection (in MR.Vector3i pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box3i.getProjection.
unsafe MR.Box3i	expanded (in MR.Vector3i expansion)
	decreases min and increased max on given value Generated from method MR.Box3i.expanded.
unsafe MR.Box3i	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method MR.Box3i.insignificantlyExpanded.
bool	Equals (MR.ConstBox_Box3i? a)
override bool	Equals (object? other)

Properties
new ref MR.Vector3i	min [get]
new ref MR.Vector3i	max [get]
unsafe new ref MR.Vector3i	this[int e] [get]
	Generated from method MR.Box3i.operator[].
Properties inherited from MR.ConstBox_Box3i
ref readonly MR.Vector3i	min [get]
ref readonly MR.Vector3i	max [get]
static unsafe int	Elements [get]
unsafe ref readonly MR.Vector3i	this[int e] [get]
	min/max access by 0/1 index Generated from method MR.Box3i.operator[].

Additional Inherited Members
Static Public Member Functions inherited from MR.ConstBox_Box3i
static implicit	operator ConstBox_Box3i (Box3i other)
	Convert from a struct by copying it. Note that only ConstBox_Box3i has this conversion, Box_Box3i intentionally doesn't.
static unsafe MR.Box3i	fromMinAndSize (in MR.Vector3i min, in MR.Vector3i size)
	Generated from method MR.Box3i.fromMinAndSize.
static unsafe MR.Vector3b	getMinBoxCorner (in MR.Vector3i n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box3i.getMinBoxCorner.
static unsafe MR.Vector3b	getMaxBoxCorner (in MR.Vector3i n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box3i.getMaxBoxCorner.
static unsafe bool	operator== (MR.ConstBox_Box3i _this, MR.ConstBox_Box3i a)
	Generated from method MR.Box3i.operator==.
static unsafe bool	operator!= (MR.ConstBox_Box3i _this, MR.ConstBox_Box3i a)
Protected Member Functions inherited from MR.ConstBox_Box3i
virtual unsafe void	Dispose (bool disposing)
Static Protected Attributes inherited from MR.ConstBox_Box3i
static unsafe int *	__ref_storage_Elements

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box3i. This is the non-const reference to the struct.

Constructor & Destructor Documentation

Box_Box3i() [1/5]

unsafe MR.Box_Box3i.Box_Box3i ( Box3i other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

Box_Box3i() [2/5]

unsafe MR.Box_Box3i.Box_Box3i ( ConstBox_Box3i _other )

inline

Generated copy constructor.

Box_Box3i() [3/5]

unsafe MR.Box_Box3i.Box_Box3i ( )

inline

Constructs an empty (default-constructed) instance.

Box_Box3i() [4/5]

unsafe MR.Box_Box3i.Box_Box3i ( in MR.Vector3i min, in MR.Vector3i max )

inline

Generated from constructor MR.Box3i.Box3i.

Box_Box3i() [5/5]

unsafe MR.Box_Box3i.Box_Box3i ( MR.Const_NoInit _1 )

inline

Generated from constructor MR.Box3i.Box3i.

Member Function Documentation

Assign()

void MR.Box_Box3i.Assign ( ConstBox_Box3i _other )

inline

Generated copy assignment.

include() [1/2]

unsafe void MR.Box_Box3i.include ( in MR.Box3i b )

inline

minimally increases the box to include another box Generated from method MR.Box3i.include.

include() [2/2]

unsafe void MR.Box_Box3i.include ( in MR.Vector3i pt )

inline

minimally increases the box to include given point Generated from method MR.Box3i.include.

intersect()

unsafe ref MR.Box3i MR.Box_Box3i.intersect ( in MR.Box3i b )

inline

Generated from method MR.Box3i.intersect.

Property Documentation

max

new ref MR.Vector3i MR.Box_Box3i.max

get

min

new ref MR.Vector3i MR.Box_Box3i.min

get

this[int e]

unsafe new ref MR.Vector3i MR.Box_Box3i.this[int e]

get

Generated from method MR.Box3i.operator[].

---

The documentation for this class was generated from the following file:

• MRBox.cs
