Box given by its min- and max- corners Generated from class MR.Box3i. This is the const reference to the struct. More...

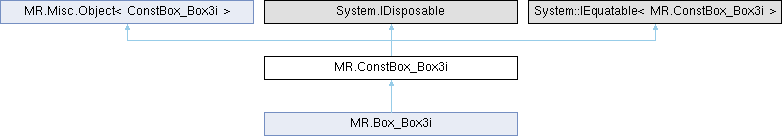

Inheritance diagram for MR.ConstBox_Box3i:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()

unsafe	ConstBox_Box3i (Box3i other)
	Make a copy of a struct. (Even though we initially pass `is_owning: false`, we then use the copy constructor to produce an owning instance.)

unsafe	ConstBox_Box3i (ConstBox_Box3i _other)
	Generated copy constructor.

unsafe	ConstBox_Box3i ()
	Constructs an empty (default-constructed) instance.

unsafe	ConstBox_Box3i (in MR.Vector3i min, in MR.Vector3i max)
	Generated from constructor `MR.Box3i.Box3i`.

unsafe	ConstBox_Box3i (MR.Const_NoInit _1)
	Generated from constructor `MR.Box3i.Box3i`.

unsafe bool	valid ()
	true if the box contains at least one point Generated from method `MR.Box3i.valid`.

unsafe MR.Vector3i	center ()
	computes center of the box Generated from method `MR.Box3i.center`.

unsafe MR.Vector3i	corner (in MR.Vector3b c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method `MR.Box3i.corner`.

unsafe MR.Vector3i	size ()
	computes size of the box in all dimensions Generated from method `MR.Box3i.size`.

unsafe int	diagonal ()
	computes length from min to max Generated from method `MR.Box3i.diagonal`.

unsafe int	volume ()
	computes the volume of this box Generated from method `MR.Box3i.volume`.

unsafe bool	contains (in MR.Vector3i pt)
	checks whether given point is inside (including the surface) of this box Generated from method `MR.Box3i.contains`.

unsafe bool	contains (in MR.Box3i otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method `MR.Box3i.contains`.

unsafe MR.Vector3i	getBoxClosestPointTo (in MR.Vector3i pt)
	returns closest point in the box to given point Generated from method `MR.Box3i.getBoxClosestPointTo`.

unsafe bool	intersects (in MR.Box3i b)
	checks whether this box intersects or touches given box Generated from method `MR.Box3i.intersects`.

unsafe MR.Box3i	intersection (in MR.Box3i b)
	computes intersection between this and other box Generated from method `MR.Box3i.intersection`.

unsafe int	getDistanceSq (in MR.Box3i b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method `MR.Box3i.getDistanceSq`.

unsafe int	getDistanceSq (in MR.Vector3i pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method `MR.Box3i.getDistanceSq`.

unsafe MR.Vector3i	getProjection (in MR.Vector3i pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method `MR.Box3i.getProjection`.

unsafe MR.Box3i	expanded (in MR.Vector3i expansion)
	decreases min and increased max on given value Generated from method `MR.Box3i.expanded`.

unsafe MR.Box3i	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method `MR.Box3i.insignificantlyExpanded`.

bool	Equals (MR.ConstBox_Box3i? a)

override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Box3i (Box3i other)
	Convert from a struct by copying it. Note that only `ConstBox_Box3i` has this conversion, `Box_Box3i` intentionally doesn't.

static unsafe MR.Box3i	fromMinAndSize (in MR.Vector3i min, in MR.Vector3i size)
	Generated from method `MR.Box3i.fromMinAndSize`.

static unsafe MR.Vector3b	getMinBoxCorner (in MR.Vector3i n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method `MR.Box3i.getMinBoxCorner`.

static unsafe MR.Vector3b	getMaxBoxCorner (in MR.Vector3i n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method `MR.Box3i.getMaxBoxCorner`.

static unsafe bool	operator== (MR.ConstBox_Box3i _this, MR.ConstBox_Box3i a)
	Generated from method `MR.Box3i.operator==`.

static unsafe bool	operator!= (MR.ConstBox_Box3i _this, MR.ConstBox_Box3i a)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Static Protected Attributes
static unsafe int *	__ref_storage_Elements

Properties
ref readonly MR.Vector3i	min `[get]`

ref readonly MR.Vector3i	max `[get]`

static unsafe int	Elements `[get]`

unsafe ref readonly MR.Vector3i	this[int e] `[get]`
	min/max access by 0/1 index Generated from method `MR.Box3i.operator[]`.

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box3i. This is the const reference to the struct.

Constructor & Destructor Documentation

◆ ConstBox_Box3i() [1/5]

unsafe MR.ConstBox_Box3i.ConstBox_Box3i ( Box3i other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

◆ ConstBox_Box3i() [2/5]

unsafe MR.ConstBox_Box3i.ConstBox_Box3i ( ConstBox_Box3i _other )

inline

Generated copy constructor.

◆ ConstBox_Box3i() [3/5]

unsafe MR.ConstBox_Box3i.ConstBox_Box3i ( )

inline

Constructs an empty (default-constructed) instance.

◆ ConstBox_Box3i() [4/5]

unsafe MR.ConstBox_Box3i.ConstBox_Box3i	(	in MR.Vector3i	min,
		in MR.Vector3i	max )

inline

Generated from constructor MR.Box3i.Box3i.

◆ ConstBox_Box3i() [5/5]

unsafe MR.ConstBox_Box3i.ConstBox_Box3i ( MR.Const_NoInit _1 )

inline

Generated from constructor MR.Box3i.Box3i.

Member Function Documentation

◆ center()

unsafe MR.Vector3i MR.ConstBox_Box3i.center ( )

inline

computes center of the box Generated from method MR.Box3i.center.

◆ contains() [1/2]

unsafe bool MR.ConstBox_Box3i.contains ( in MR.Box3i otherbox )

inline

checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box3i.contains.

◆ contains() [2/2]

unsafe bool MR.ConstBox_Box3i.contains ( in MR.Vector3i pt )

inline

checks whether given point is inside (including the surface) of this box Generated from method MR.Box3i.contains.

◆ corner()

unsafe MR.Vector3i MR.ConstBox_Box3i.corner ( in MR.Vector3b c )

inline

returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box3i.corner.

◆ diagonal()

unsafe int MR.ConstBox_Box3i.diagonal ( )

inline

computes length from min to max Generated from method MR.Box3i.diagonal.

◆ Dispose() [1/2]

virtual void MR.ConstBox_Box3i.Dispose ( )

inlinevirtual

◆ Dispose() [2/2]

virtual unsafe void MR.ConstBox_Box3i.Dispose ( bool disposing )

inlineprotectedvirtual

◆ Equals() [1/2]

bool MR.ConstBox_Box3i.Equals ( MR.ConstBox_Box3i? a )

inline

◆ Equals() [2/2]

override bool MR.ConstBox_Box3i.Equals ( object? other )

inline

◆ expanded()

unsafe MR.Box3i MR.ConstBox_Box3i.expanded ( in MR.Vector3i expansion )

inline

decreases min and increased max on given value Generated from method MR.Box3i.expanded.

◆ fromMinAndSize()

static unsafe MR.Box3i MR.ConstBox_Box3i.fromMinAndSize	(	in MR.Vector3i	min,
		in MR.Vector3i	size )

inlinestatic

Generated from method MR.Box3i.fromMinAndSize.

◆ getBoxClosestPointTo()

unsafe MR.Vector3i MR.ConstBox_Box3i.getBoxClosestPointTo ( in MR.Vector3i pt )

inline

returns closest point in the box to given point Generated from method MR.Box3i.getBoxClosestPointTo.

◆ getDistanceSq() [1/2]

unsafe int MR.ConstBox_Box3i.getDistanceSq ( in MR.Box3i b )

inline

returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box3i.getDistanceSq.

◆ getDistanceSq() [2/2]

unsafe int MR.ConstBox_Box3i.getDistanceSq ( in MR.Vector3i pt )

inline

returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box3i.getDistanceSq.

◆ getMaxBoxCorner()

static unsafe MR.Vector3b MR.ConstBox_Box3i.getMaxBoxCorner ( in MR.Vector3i n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box3i.getMaxBoxCorner.

◆ getMinBoxCorner()

static unsafe MR.Vector3b MR.ConstBox_Box3i.getMinBoxCorner ( in MR.Vector3i n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box3i.getMinBoxCorner.

◆ getProjection()

unsafe MR.Vector3i MR.ConstBox_Box3i.getProjection ( in MR.Vector3i pt )

inline

returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box3i.getProjection.

◆ insignificantlyExpanded()

unsafe MR.Box3i MR.ConstBox_Box3i.insignificantlyExpanded ( )

inline

decreases min and increases max to their closest representable value Generated from method MR.Box3i.insignificantlyExpanded.

◆ intersection()

unsafe MR.Box3i MR.ConstBox_Box3i.intersection ( in MR.Box3i b )

inline

computes intersection between this and other box Generated from method MR.Box3i.intersection.

◆ intersects()

unsafe bool MR.ConstBox_Box3i.intersects ( in MR.Box3i b )

inline

checks whether this box intersects or touches given box Generated from method MR.Box3i.intersects.

◆ operator ConstBox_Box3i()

static implicit MR.ConstBox_Box3i.operator ConstBox_Box3i ( Box3i other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Box3i has this conversion, Box_Box3i intentionally doesn't.

◆ operator!=()

static unsafe bool MR.ConstBox_Box3i.operator!=	(	MR.ConstBox_Box3i	_this,
		MR.ConstBox_Box3i	a )

inlinestatic

◆ operator==()

static unsafe bool MR.ConstBox_Box3i.operator==	(	MR.ConstBox_Box3i	_this,
		MR.ConstBox_Box3i	a )

inlinestatic

Generated from method MR.Box3i.operator==.

◆ size()

unsafe MR.Vector3i MR.ConstBox_Box3i.size ( )

inline

computes size of the box in all dimensions Generated from method MR.Box3i.size.

◆ valid()

unsafe bool MR.ConstBox_Box3i.valid ( )

inline

true if the box contains at least one point Generated from method MR.Box3i.valid.

◆ volume()

unsafe int MR.ConstBox_Box3i.volume ( )

inline

computes the volume of this box Generated from method MR.Box3i.volume.

Member Data Documentation

◆ __ref_storage_Elements

unsafe int* MR.ConstBox_Box3i.__ref_storage_Elements

staticprotected

Property Documentation

◆ Elements

unsafe int MR.ConstBox_Box3i.Elements

staticget

◆ max

ref readonly MR.Vector3i MR.ConstBox_Box3i.max

get

◆ min

ref readonly MR.Vector3i MR.ConstBox_Box3i.min

get

◆ this[int e]

unsafe ref readonly MR.Vector3i MR.ConstBox_Box3i.this[int e]

get

min/max access by 0/1 index Generated from method MR.Box3i.operator[].

The documentation for this class was generated from the following file:

MRBox.cs
