MR.Box_Matrix2i Class Reference

arbitrary 2x2 matrix Generated from class MR.Matrix2i. This is the non-const reference to the struct. More...

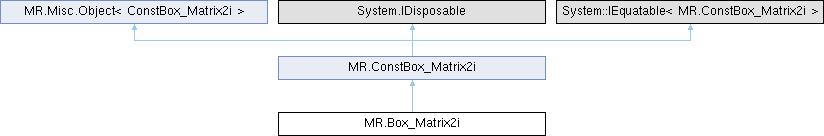

Inheritance diagram for MR.Box_Matrix2i:

Public Member Functions
unsafe	Box_Matrix2i (Matrix2i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	Box_Matrix2i (ConstBox_Matrix2i _other)
	Generated copy constructor.
void	Assign (ConstBox_Matrix2i _other)
	Generated copy assignment.
unsafe	Box_Matrix2i ()
	Constructs an empty (default-constructed) instance.
unsafe	Box_Matrix2i (in MR.Vector2i x, in MR.Vector2i y)
	initializes matrix from its 2 rows Generated from constructor MR.Matrix2i.Matrix2i.
unsafe ref MR.Matrix2i	addAssign (in MR.Matrix2i b)
	Generated from function MR.operator+=.
unsafe ref MR.Matrix2i	subAssign (in MR.Matrix2i b)
	Generated from function MR.operator-=.
unsafe ref MR.Matrix2i	mulAssign (int b)
	Generated from function MR.operator*=.
unsafe ref MR.Matrix2i	divAssign (int b)
	Generated from function MR.operator/=.
Public Member Functions inherited from MR.ConstBox_Matrix2i
unsafe	ConstBox_Matrix2i (Matrix2i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
virtual void	Dispose ()
unsafe	ConstBox_Matrix2i (ConstBox_Matrix2i _other)
	Generated copy constructor.
unsafe	ConstBox_Matrix2i ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Matrix2i (in MR.Vector2i x, in MR.Vector2i y)
	initializes matrix from its 2 rows Generated from constructor MR.Matrix2i.Matrix2i.
unsafe MR.Vector2i	col (int i)
	column access Generated from method MR.Matrix2i.col.
unsafe int	trace ()
	computes trace of the matrix Generated from method MR.Matrix2i.trace.
unsafe int	normSq ()
	compute sum of squared matrix elements Generated from method MR.Matrix2i.normSq.
unsafe double	norm ()
	Generated from method MR.Matrix2i.norm.
unsafe int	det ()
	computes determinant of the matrix Generated from method MR.Matrix2i.det.
unsafe MR.Matrix2i	transposed ()
	computes transposed matrix Generated from method MR.Matrix2i.transposed.
bool	Equals (MR.ConstBox_Matrix2i? b)
override bool	Equals (object? other)

Properties
unsafe new ref Matrix2i	_Ref [get]
	Get the underlying struct.
new ref MR.Vector2i	x [get]
	rows, identity matrix by default
new ref MR.Vector2i	y [get]
unsafe new ref MR.Vector2i	this[int row] [get]
	Generated from method MR.Matrix2i.operator[].
Properties inherited from MR.ConstBox_Matrix2i
unsafe ref readonly Matrix2i	_Ref [get]
	Get the underlying struct.
ref readonly MR.Vector2i	x [get]
	rows, identity matrix by default
ref readonly MR.Vector2i	y [get]
unsafe ref readonly MR.Vector2i	this[int row] [get]
	row access Generated from method MR.Matrix2i.operator[].
Properties inherited from MR.Misc.Object< ConstBox_Matrix2i >
virtual bool	_IsOwning [get]
	Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.

Additional Inherited Members
Static Public Member Functions inherited from MR.ConstBox_Matrix2i
static implicit	operator ConstBox_Matrix2i (Matrix2i other)
	Convert from a struct by copying it. Note that only ConstBox_Matrix2i has this conversion, Box_Matrix2i intentionally doesn't.
static MR.Matrix2i	zero ()
	Generated from method MR.Matrix2i.zero.
static MR.Matrix2i	identity ()
	Generated from method MR.Matrix2i.identity.
static MR.Matrix2i	scale (int s)
	returns a matrix that scales uniformly Generated from method MR.Matrix2i.scale.
static MR.Matrix2i	scale (int sx, int sy)
	returns a matrix that has its own scale along each axis Generated from method MR.Matrix2i.scale.
static unsafe MR.Matrix2i	scale (in MR.Vector2i s)
	Generated from method MR.Matrix2i.scale.
static unsafe MR.Matrix2i	fromRows (in MR.Vector2i x, in MR.Vector2i y)
	constructs a matrix from its 2 rows Generated from method MR.Matrix2i.fromRows.
static unsafe MR.Matrix2i	fromColumns (in MR.Vector2i x, in MR.Vector2i y)
	constructs a matrix from its 2 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY ) into vectors ( x, y ) respectively Generated from method MR.Matrix2i.fromColumns.
static unsafe bool	operator== (MR.ConstBox_Matrix2i a, MR.ConstBox_Matrix2i b)
	Generated from function MR.operator==.
static unsafe bool	operator!= (MR.ConstBox_Matrix2i a, MR.ConstBox_Matrix2i b)
static unsafe MR.Matrix2i	operator+ (MR.ConstBox_Matrix2i a, in MR.Matrix2i b)
	Generated from function MR.operator+.
static unsafe MR.Matrix2i	operator- (MR.ConstBox_Matrix2i a, in MR.Matrix2i b)
	Generated from function MR.operator-.
static unsafe MR.Matrix2i	operator* (int a, MR.ConstBox_Matrix2i b)
	Generated from function MR.operator*.
static unsafe MR.Matrix2i	operator* (MR.ConstBox_Matrix2i b, int a)
	Generated from function MR.operator*.
static unsafe MR.Matrix2i	operator/ (ConstBox_Matrix2i b, int a)
	Generated from function MR.operator/.
static unsafe MR.Vector2i	operator* (MR.ConstBox_Matrix2i a, in MR.Vector2i b)
	x = a * b Generated from function MR.operator*.
static unsafe MR.Matrix2i	operator* (MR.ConstBox_Matrix2i a, in MR.Matrix2i b)
	product of two matrices Generated from function MR.operator*.
Protected Member Functions inherited from MR.ConstBox_Matrix2i
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Misc.Object< ConstBox_Matrix2i >
bool	_IsOwningVal

Detailed Description

arbitrary 2x2 matrix Generated from class MR.Matrix2i. This is the non-const reference to the struct.

---

The documentation for this class was generated from the following file:

• MRMatrix2.cs
