MR.ConstBox_Matrix2i Class Reference

arbitrary 2x2 matrix Generated from class MR.Matrix2i. This is the const reference to the struct. More...

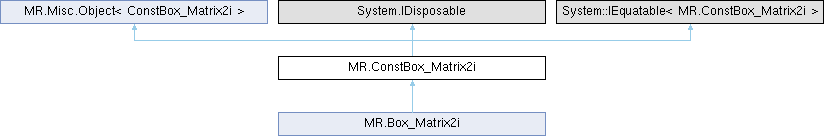

Inheritance diagram for MR.ConstBox_Matrix2i:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	ConstBox_Matrix2i (Matrix2i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	ConstBox_Matrix2i (ConstBox_Matrix2i _other)
	Generated copy constructor.
unsafe	ConstBox_Matrix2i ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Matrix2i (in MR.Vector2i x, in MR.Vector2i y)
	initializes matrix from its 2 rows Generated from constructor MR.Matrix2i.Matrix2i.
unsafe MR.Vector2i	col (int i)
	column access Generated from method MR.Matrix2i.col.
unsafe int	trace ()
	computes trace of the matrix Generated from method MR.Matrix2i.trace.
unsafe int	normSq ()
	compute sum of squared matrix elements Generated from method MR.Matrix2i.normSq.
unsafe double	norm ()
	Generated from method MR.Matrix2i.norm.
unsafe int	det ()
	computes determinant of the matrix Generated from method MR.Matrix2i.det.
unsafe MR.Matrix2i	transposed ()
	computes transposed matrix Generated from method MR.Matrix2i.transposed.
bool	Equals (MR.ConstBox_Matrix2i? b)
override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Matrix2i (Matrix2i other)
	Convert from a struct by copying it. Note that only ConstBox_Matrix2i has this conversion, Box_Matrix2i intentionally doesn't.
static MR.Matrix2i	zero ()
	Generated from method MR.Matrix2i.zero.
static MR.Matrix2i	identity ()
	Generated from method MR.Matrix2i.identity.
static MR.Matrix2i	scale (int s)
	returns a matrix that scales uniformly Generated from method MR.Matrix2i.scale.
static MR.Matrix2i	scale (int sx, int sy)
	returns a matrix that has its own scale along each axis Generated from method MR.Matrix2i.scale.
static unsafe MR.Matrix2i	scale (in MR.Vector2i s)
	Generated from method MR.Matrix2i.scale.
static unsafe MR.Matrix2i	fromRows (in MR.Vector2i x, in MR.Vector2i y)
	constructs a matrix from its 2 rows Generated from method MR.Matrix2i.fromRows.
static unsafe MR.Matrix2i	fromColumns (in MR.Vector2i x, in MR.Vector2i y)
	constructs a matrix from its 2 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY ) into vectors ( x, y ) respectively Generated from method MR.Matrix2i.fromColumns.
static unsafe bool	operator== (MR.ConstBox_Matrix2i a, MR.ConstBox_Matrix2i b)
	Generated from function MR.operator==.
static unsafe bool	operator!= (MR.ConstBox_Matrix2i a, MR.ConstBox_Matrix2i b)
static unsafe MR.Matrix2i	operator+ (MR.ConstBox_Matrix2i a, in MR.Matrix2i b)
	Generated from function MR.operator+.
static unsafe MR.Matrix2i	operator- (MR.ConstBox_Matrix2i a, in MR.Matrix2i b)
	Generated from function MR.operator-.
static unsafe MR.Matrix2i	operator* (int a, MR.ConstBox_Matrix2i b)
	Generated from function MR.operator*.
static unsafe MR.Matrix2i	operator* (MR.ConstBox_Matrix2i b, int a)
	Generated from function MR.operator*.
static unsafe MR.Matrix2i	operator/ (ConstBox_Matrix2i b, int a)
	Generated from function MR.operator/.
static unsafe MR.Vector2i	operator* (MR.ConstBox_Matrix2i a, in MR.Vector2i b)
	x = a * b Generated from function MR.operator*.
static unsafe MR.Matrix2i	operator* (MR.ConstBox_Matrix2i a, in MR.Matrix2i b)
	product of two matrices Generated from function MR.operator*.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Properties
ref readonly MR.Vector2i	x [get]
	rows, identity matrix by default
ref readonly MR.Vector2i	y [get]
unsafe ref readonly MR.Vector2i	this[int row] [get]
	row access Generated from method MR.Matrix2i.operator[].

Detailed Description

arbitrary 2x2 matrix Generated from class MR.Matrix2i. This is the const reference to the struct.

Constructor & Destructor Documentation

ConstBox_Matrix2i() [1/4]

unsafe MR.ConstBox_Matrix2i.ConstBox_Matrix2i ( Matrix2i other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

ConstBox_Matrix2i() [2/4]

unsafe MR.ConstBox_Matrix2i.ConstBox_Matrix2i ( ConstBox_Matrix2i _other )

inline

Generated copy constructor.

ConstBox_Matrix2i() [3/4]

unsafe MR.ConstBox_Matrix2i.ConstBox_Matrix2i ( )

inline

Constructs an empty (default-constructed) instance.

ConstBox_Matrix2i() [4/4]

unsafe MR.ConstBox_Matrix2i.ConstBox_Matrix2i ( in MR.Vector2i x, in MR.Vector2i y )

inline

initializes matrix from its 2 rows Generated from constructor MR.Matrix2i.Matrix2i.

Member Function Documentation

col()

unsafe MR.Vector2i MR.ConstBox_Matrix2i.col ( int i )

inline

column access Generated from method MR.Matrix2i.col.

det()

unsafe int MR.ConstBox_Matrix2i.det ( )

inline

computes determinant of the matrix Generated from method MR.Matrix2i.det.

Dispose() [1/2]

virtual void MR.ConstBox_Matrix2i.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.ConstBox_Matrix2i.Dispose ( bool disposing )

inlineprotectedvirtual

Equals() [1/2]

bool MR.ConstBox_Matrix2i.Equals ( MR.ConstBox_Matrix2i? b )

inline

Equals() [2/2]

override bool MR.ConstBox_Matrix2i.Equals ( object? other )

inline

fromColumns()

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.fromColumns ( in MR.Vector2i x, in MR.Vector2i y )

inlinestatic

constructs a matrix from its 2 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY ) into vectors ( x, y ) respectively Generated from method MR.Matrix2i.fromColumns.

fromRows()

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.fromRows ( in MR.Vector2i x, in MR.Vector2i y )

inlinestatic

constructs a matrix from its 2 rows Generated from method MR.Matrix2i.fromRows.

identity()

static MR.Matrix2i MR.ConstBox_Matrix2i.identity ( )

inlinestatic

Generated from method MR.Matrix2i.identity.

norm()

unsafe double MR.ConstBox_Matrix2i.norm ( )

inline

Generated from method MR.Matrix2i.norm.

normSq()

unsafe int MR.ConstBox_Matrix2i.normSq ( )

inline

compute sum of squared matrix elements Generated from method MR.Matrix2i.normSq.

operator ConstBox_Matrix2i()

static implicit MR.ConstBox_Matrix2i.operator ConstBox_Matrix2i ( Matrix2i other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Matrix2i has this conversion, Box_Matrix2i intentionally doesn't.

operator!=()

static unsafe bool MR.ConstBox_Matrix2i.operator!= ( MR.ConstBox_Matrix2i a, MR.ConstBox_Matrix2i b )

inlinestatic

operator*() [1/4]

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.operator* ( int a, MR.ConstBox_Matrix2i b )

inlinestatic

Generated from function MR.operator*.

operator*() [2/4]

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.operator* ( MR.ConstBox_Matrix2i a, in MR.Matrix2i b )

inlinestatic

product of two matrices Generated from function MR.operator*.

operator*() [3/4]

static unsafe MR.Vector2i MR.ConstBox_Matrix2i.operator* ( MR.ConstBox_Matrix2i a, in MR.Vector2i b )

inlinestatic

x = a * b Generated from function MR.operator*.

operator*() [4/4]

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.operator* ( MR.ConstBox_Matrix2i b, int a )

inlinestatic

Generated from function MR.operator*.

operator+()

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.operator+ ( MR.ConstBox_Matrix2i a, in MR.Matrix2i b )

inlinestatic

Generated from function MR.operator+.

operator-()

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.operator- ( MR.ConstBox_Matrix2i a, in MR.Matrix2i b )

inlinestatic

Generated from function MR.operator-.

operator/()

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.operator/ ( ConstBox_Matrix2i b, int a )

inlinestatic

Generated from function MR.operator/.

operator==()

static unsafe bool MR.ConstBox_Matrix2i.operator== ( MR.ConstBox_Matrix2i a, MR.ConstBox_Matrix2i b )

inlinestatic

Generated from function MR.operator==.

scale() [1/3]

static unsafe MR.Matrix2i MR.ConstBox_Matrix2i.scale ( in MR.Vector2i s )

inlinestatic

Generated from method MR.Matrix2i.scale.

scale() [2/3]

static MR.Matrix2i MR.ConstBox_Matrix2i.scale ( int s )

inlinestatic

returns a matrix that scales uniformly Generated from method MR.Matrix2i.scale.

scale() [3/3]

static MR.Matrix2i MR.ConstBox_Matrix2i.scale ( int sx, int sy )

inlinestatic

returns a matrix that has its own scale along each axis Generated from method MR.Matrix2i.scale.

trace()

unsafe int MR.ConstBox_Matrix2i.trace ( )

inline

computes trace of the matrix Generated from method MR.Matrix2i.trace.

transposed()

unsafe MR.Matrix2i MR.ConstBox_Matrix2i.transposed ( )

inline

computes transposed matrix Generated from method MR.Matrix2i.transposed.

zero()

static MR.Matrix2i MR.ConstBox_Matrix2i.zero ( )

inlinestatic

Generated from method MR.Matrix2i.zero.

Property Documentation

this[int row]

unsafe ref readonly MR.Vector2i MR.ConstBox_Matrix2i.this[int row]

get

row access Generated from method MR.Matrix2i.operator[].

x

ref readonly MR.Vector2i MR.ConstBox_Matrix2i.x

get

rows, identity matrix by default

y

ref readonly MR.Vector2i MR.ConstBox_Matrix2i.y

get

---

The documentation for this class was generated from the following file:

• MRMatrix2.cs
