Public Member Functions | Properties | List of all members
MR.ComputeSweptVolumeParameters Class Reference

Parameters for computeSweptVolume* functions Generated from class MR.ComputeSweptVolumeParameters. This is the non-const half of the class. More...

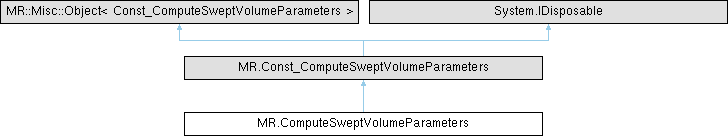

Inheritance diagram for MR.ComputeSweptVolumeParameters:

Public Member Functions

unsafe ComputeSweptVolumeParameters (MR._ByValue_ComputeSweptVolumeParameters _other)
 Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.
 ComputeSweptVolumeParameters (Const_ComputeSweptVolumeParameters _other)
 Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.
 ComputeSweptVolumeParameters (ComputeSweptVolumeParameters _other)
 Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.
unsafe ComputeSweptVolumeParameters (MR.Const_Polyline3 path, MR.Const_MeshPart toolMesh, MR.Const_EndMillTool? toolSpec, float voxelSize, ulong memoryLimit, MR.Std._ByValue_Function_Bool_From_Float cb)
 Constructs MR.ComputeSweptVolumeParameters elementwise.
Public Member Functions inherited from MR.Const_ComputeSweptVolumeParameters
virtual void Dispose ()
unsafe Const_ComputeSweptVolumeParameters (MR._ByValue_ComputeSweptVolumeParameters _other)
 Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.
 Const_ComputeSweptVolumeParameters (Const_ComputeSweptVolumeParameters _other)
 Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.
 Const_ComputeSweptVolumeParameters (ComputeSweptVolumeParameters _other)
 Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.
unsafe Const_ComputeSweptVolumeParameters (MR.Const_Polyline3 path, MR.Const_MeshPart toolMesh, MR.Const_EndMillTool? toolSpec, float voxelSize, ulong memoryLimit, MR.Std._ByValue_Function_Bool_From_Float cb)
 Constructs MR.ComputeSweptVolumeParameters elementwise.

Properties

new unsafe MR.MeshPart toolMesh [get, protected set]
 tool mesh
new unsafe MR.? Const_EndMillTool toolSpec [get, set]
 tool specifications, can be used for more precise computations the tool spec and the tool mesh are expected to relate to the same tool if omitted, tool mesh is used
new unsafe ref float voxelSize [get]
 voxel size for internal voxel volumes
new unsafe ref ulong memoryLimit [get]
 (distance volume) max memory amount used for the distance volume, zero for no limits
new unsafe MR.Std.Function_Bool_From_Float cb [get, protected set]
 progress callback
Properties inherited from MR.Const_ComputeSweptVolumeParameters
unsafe MR.Const_Polyline3 path [get, protected set]
 toolpath
unsafe MR.Const_MeshPart toolMesh [get, protected set]
 tool mesh
unsafe MR.? Const_EndMillTool toolSpec [get]
 tool specifications, can be used for more precise computations the tool spec and the tool mesh are expected to relate to the same tool if omitted, tool mesh is used
unsafe float voxelSize [get]
 voxel size for internal voxel volumes
unsafe ulong memoryLimit [get]
 (distance volume) max memory amount used for the distance volume, zero for no limits
unsafe MR.Std.Const_Function_Bool_From_Float cb [get, protected set]
 progress callback

Additional Inherited Members

Protected Member Functions inherited from MR.Const_ComputeSweptVolumeParameters
virtual unsafe void Dispose (bool disposing)
Protected Attributes inherited from MR.Const_ComputeSweptVolumeParameters
unsafe MR.Const_EndMillTool._Underlying ** __ptr_storage_toolSpec
unsafe float * __ref_storage_voxelSize
unsafe ulong * __ref_storage_memoryLimit

Detailed Description

Parameters for computeSweptVolume* functions Generated from class MR.ComputeSweptVolumeParameters. This is the non-const half of the class.

Constructor & Destructor Documentation

◆ ComputeSweptVolumeParameters() [1/4]

unsafe MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters ( MR._ByValue_ComputeSweptVolumeParameters _other)
inline

Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.

◆ ComputeSweptVolumeParameters() [2/4]

MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters ( Const_ComputeSweptVolumeParameters _other)
inline

Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.

◆ ComputeSweptVolumeParameters() [3/4]

MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters ( ComputeSweptVolumeParameters _other)
inline

Generated from constructor MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters.

◆ ComputeSweptVolumeParameters() [4/4]

unsafe MR.ComputeSweptVolumeParameters.ComputeSweptVolumeParameters ( MR.Const_Polyline3 path,
MR.Const_MeshPart toolMesh,
MR.Const_EndMillTool? toolSpec,
float voxelSize,
ulong memoryLimit,
MR.Std._ByValue_Function_Bool_From_Float cb )
inline

Constructs MR.ComputeSweptVolumeParameters elementwise.

Property Documentation

◆ cb

new unsafe MR.Std.Function_Bool_From_Float MR.ComputeSweptVolumeParameters.cb
getprotected set

progress callback

◆ memoryLimit

new unsafe ref ulong MR.ComputeSweptVolumeParameters.memoryLimit
get

(distance volume) max memory amount used for the distance volume, zero for no limits

◆ toolMesh

new unsafe MR.MeshPart MR.ComputeSweptVolumeParameters.toolMesh
getprotected set

tool mesh

◆ toolSpec

new unsafe MR.? Const_EndMillTool MR.ComputeSweptVolumeParameters.toolSpec
getset

tool specifications, can be used for more precise computations the tool spec and the tool mesh are expected to relate to the same tool if omitted, tool mesh is used

◆ voxelSize

new unsafe ref float MR.ComputeSweptVolumeParameters.voxelSize
get

voxel size for internal voxel volumes

The documentation for this class was generated from the following file:
