Parameters of point cloud triangulation.
More...
|
| virtual unsafe void | Dispose (bool disposing) |
|
| unsafe int | numNeighbours [get] |
| | The number of nearest neighbor points to use for building of local triangulation.
|
| unsafe float | radius [get] |
| | Radius of neighborhood around each point to consider for building local triangulation. This is an alternative to numNeighbours parameter. Please set to positive value only one of them.
|
| unsafe float | critAngle [get] |
| | Critical angle of triangles in local triangulation (angle between triangles in fan should be less then this value) <table border=0> <caption id="TriangulationParameters::critAngle_examples"></caption> <tr> <td>.
|
| unsafe float | boundaryAngle [get] |
| | the vertex is considered as boundary if its neighbor ring has angle more than this value
|
| unsafe float | critHoleLength [get] |
| | Critical length of hole (all holes with length less then this value will be filled)
|
| unsafe bool | automaticRadiusIncrease [get] |
| | automatic increase of the radius if points outside can make triangles from original radius not-Delone
|
| unsafe MR.? Const_PointCloud | searchNeighbors [get] |
| | optional: if provided this cloud will be used for searching of neighbors (so it must have same validPoints)
|
Parameters of point cloud triangulation.
- See also
- triangulatePointCloud Generated from class MR.TriangulationParameters. This is the const half of the class.
◆ Const_TriangulationParameters() [1/4]
| unsafe MR.Const_TriangulationParameters.Const_TriangulationParameters |
( |
| ) |
|
|
inline |
Constructs an empty (default-constructed) instance.
◆ Const_TriangulationParameters() [2/4]
| unsafe MR.Const_TriangulationParameters.Const_TriangulationParameters |
( |
int | numNeighbours, |
|
|
float | radius, |
|
|
float | critAngle, |
|
|
float | boundaryAngle, |
|
|
float | critHoleLength, |
|
|
bool | automaticRadiusIncrease, |
|
|
MR.Const_PointCloud? | searchNeighbors ) |
|
inline |
◆ Const_TriangulationParameters() [3/4]
◆ Const_TriangulationParameters() [4/4]
◆ Dispose() [1/2]
| virtual void MR.Const_TriangulationParameters.Dispose |
( |
| ) |
|
|
inlinevirtual |
◆ Dispose() [2/2]
| virtual unsafe void MR.Const_TriangulationParameters.Dispose |
( |
bool | disposing | ) |
|
|
inlineprotectedvirtual |
◆ __ptr_storage_searchNeighbors
| unsafe MR.Const_PointCloud._Underlying** MR.Const_TriangulationParameters.__ptr_storage_searchNeighbors |
|
protected |
◆ __ref_storage_automaticRadiusIncrease
| unsafe bool* MR.Const_TriangulationParameters.__ref_storage_automaticRadiusIncrease |
|
protected |
◆ __ref_storage_boundaryAngle
| unsafe float* MR.Const_TriangulationParameters.__ref_storage_boundaryAngle |
|
protected |
◆ __ref_storage_critAngle
| unsafe float* MR.Const_TriangulationParameters.__ref_storage_critAngle |
|
protected |
◆ __ref_storage_critHoleLength
| unsafe float* MR.Const_TriangulationParameters.__ref_storage_critHoleLength |
|
protected |
◆ __ref_storage_numNeighbours
| unsafe int* MR.Const_TriangulationParameters.__ref_storage_numNeighbours |
|
protected |
◆ __ref_storage_radius
| unsafe float* MR.Const_TriangulationParameters.__ref_storage_radius |
|
protected |
◆ automaticRadiusIncrease
| unsafe bool MR.Const_TriangulationParameters.automaticRadiusIncrease |
|
get |
automatic increase of the radius if points outside can make triangles from original radius not-Delone
◆ boundaryAngle
| unsafe float MR.Const_TriangulationParameters.boundaryAngle |
|
get |
the vertex is considered as boundary if its neighbor ring has angle more than this value
◆ critAngle
| unsafe float MR.Const_TriangulationParameters.critAngle |
|
get |

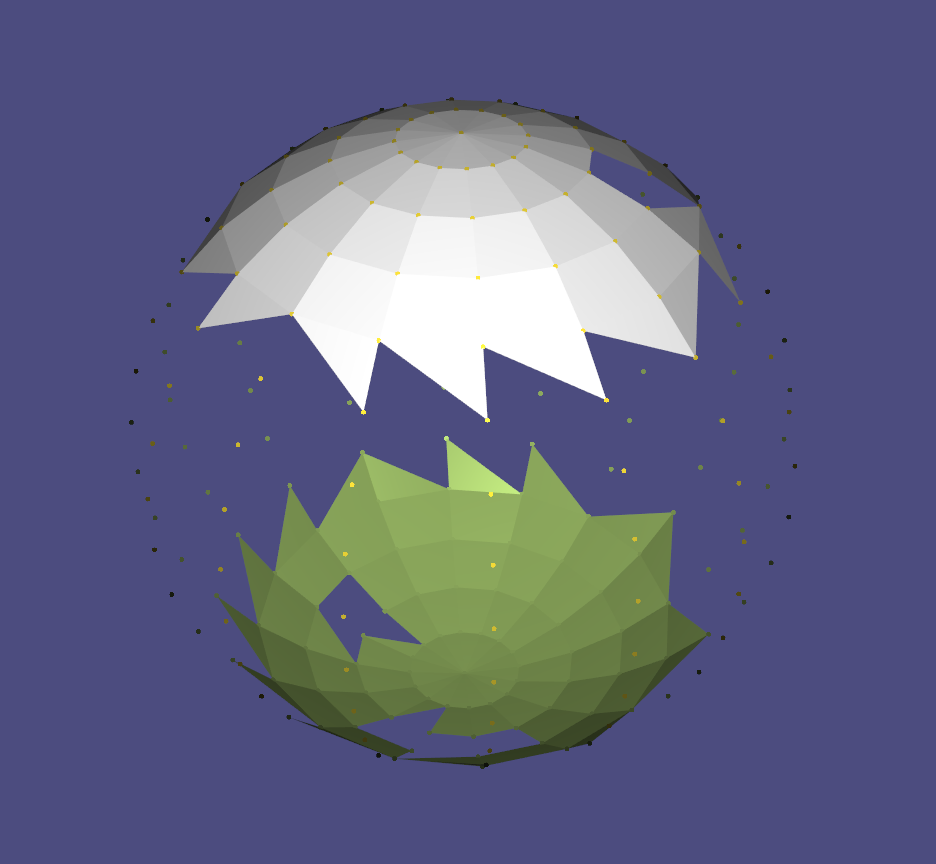

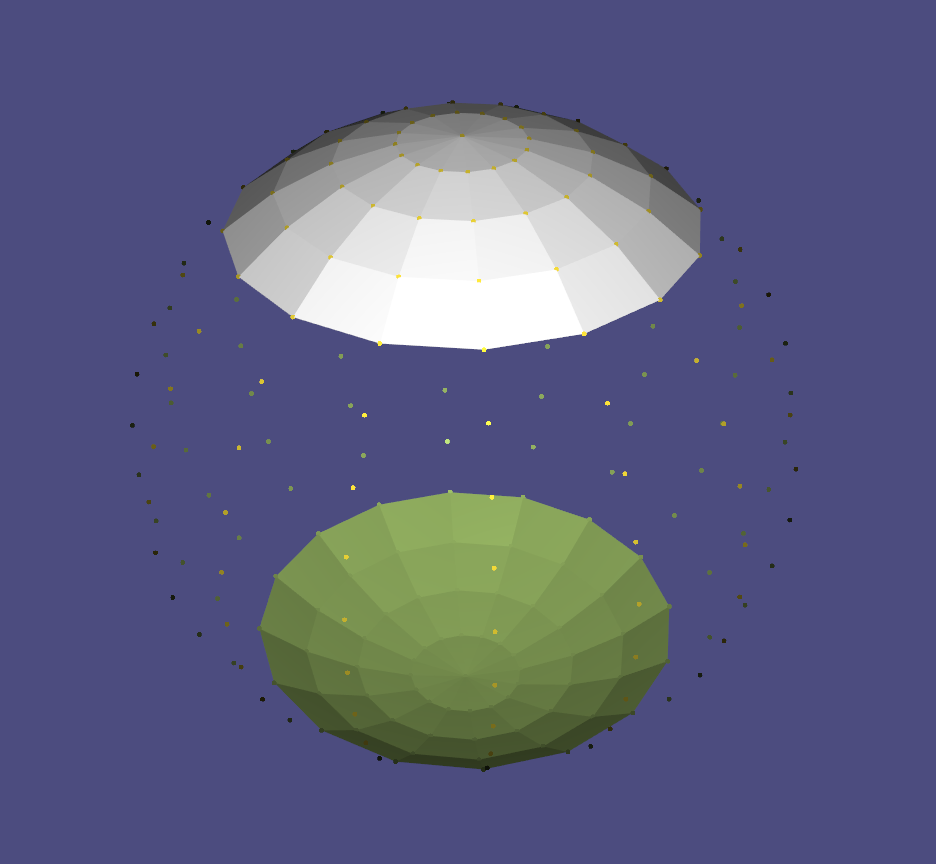

Critical angle of triangles in local triangulation (angle between triangles in fan should be less then this value) <table border=0> <caption id="TriangulationParameters::critAngle_examples"></caption> <tr> <td>.
"Good" width = 350cm </td>
<td>
"Too small value" width = 350cm </td>
</tr> </table>
◆ critHoleLength
| unsafe float MR.Const_TriangulationParameters.critHoleLength |
|
get |
Critical length of hole (all holes with length less then this value will be filled)
If value is subzero it is set automaticly to 0.7*bbox.diagonal()
◆ numNeighbours
| unsafe int MR.Const_TriangulationParameters.numNeighbours |
|
get |
The number of nearest neighbor points to use for building of local triangulation.
- Note
- Too small value can make not optimal triangulation and additional holes
Too big value increases difficulty of optimization and decreases performance <table border=0> <caption id="TriangulationParameters::numNeighbours_examples"></caption> <tr> <td>
"Good" width = 350cm </td>
<td>
"Too small value" width = 350cm </td>
</tr> </table>
◆ radius
| unsafe float MR.Const_TriangulationParameters.radius |
|
get |
Radius of neighborhood around each point to consider for building local triangulation. This is an alternative to numNeighbours parameter. Please set to positive value only one of them.
◆ searchNeighbors
optional: if provided this cloud will be used for searching of neighbors (so it must have same validPoints)
The documentation for this class was generated from the following file:
