Tool path parameters specific to the constant-cusp strategy Generated from class MR.ConstantCuspParams. Base classes: Direct: (non-virtual) MR.ToolPathParams This is the non-const half of the class. More...

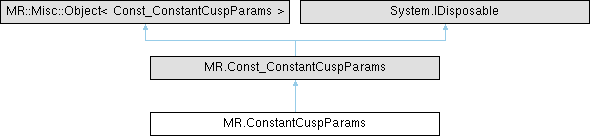

Inheritance diagram for MR.ConstantCuspParams:

Public Member Functions
unsafe	ConstantCuspParams ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstantCuspParams (MR._ByValue_ConstantCuspParams _other)
	Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.
	ConstantCuspParams (Const_ConstantCuspParams _other)
	Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.
	ConstantCuspParams (ConstantCuspParams _other)
	Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.
unsafe MR.ConstantCuspParams	assign (MR._ByValue_ConstantCuspParams _other)
	Generated from method MR::ConstantCuspParams::operator=.
Public Member Functions inherited from MR.Const_ConstantCuspParams
virtual void	Dispose ()
unsafe	Const_ConstantCuspParams ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_ConstantCuspParams (MR._ByValue_ConstantCuspParams _other)
	Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.
	Const_ConstantCuspParams (Const_ConstantCuspParams _other)
	Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.
	Const_ConstantCuspParams (ConstantCuspParams _other)
	Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.

Static Public Member Functions
static unsafe implicit	operator MR.ToolPathParams (ConstantCuspParams self)
Static Public Member Functions inherited from MR.Const_ConstantCuspParams
static unsafe implicit	operator MR.Const_ToolPathParams (Const_ConstantCuspParams self)

Properties
new unsafe ref bool	fromCenterToBoundary `[get]`
	if true isolines will be processed from center point to the boundary (usually it means from up to down)
new unsafe ref float	millRadius `[get]`
	radius of the milling tool
new unsafe ref float	voxelSize `[get]`
	size of voxel needed to offset mesh
new unsafe ref float	sectionStep `[get]`
	distance between sections built along Z axis; in Constant Cusp mode sectionStep should be bigger than voxelSize (x1.2 or more is recommended)
new unsafe ref float	critTransitionLength `[get]`
	if distance to the next section is smaller than it, transition will be performed along the surface; otherwise transition will be through the safe plane
new unsafe ref float	plungeLength `[get]`
	when the mill is moving down, it will be slowed down in this distance from mesh
new unsafe ref float	retractLength `[get]`
	when the mill is moving up, it will be slowed down in this distance from mesh
new unsafe ref float	plungeFeed `[get]`
	speed of slow movement down
new unsafe ref float	retractFeed `[get]`
	speed of slow movement up
new unsafe ref float	baseFeed `[get]`
	speed of regular milling
new unsafe ref float	safeZ `[get]`
	z-coordinate of plane where tool can move in any direction without touching the object
new unsafe ref MR.BypassDirection	bypassDir `[get]`
	which direction isolines or sections should be passed in
new unsafe MR.? ConstBox_AffineXf3f	xf `[get, set]`
	mesh can be transformed using xf parameter
new unsafe ref bool	flatTool `[get]`
	if true then a tool path for a flat milling tool will be generated
new unsafe MR.Std.Function_Bool_From_Float	cb `[get, protected set]`
	callback for reporting on progress
new unsafe ref float	toolpathExpansion `[get]`
	if > 0 - expand the trajectory creation area and create toolpath to mill excess material to make empty areas; the area has the shape of a box; lacing specific only
new unsafe MR.Std.? Vector_StdVectorMRVector3f	isolines `[get, set]`
	optional output, stores isolines without transits
new unsafe MR.Std.? Vector_StdVectorMRVector3f	startContours `[get, set]`
	optional output, polyline containing start vertices for isolines
new unsafe MR.Std.? Vector_MRVector3f	startVertices `[get, set]`
	start vertices on the offset mesh used for calculating isolines
new unsafe MR.? MeshPart	offsetMesh `[get, set]`
	optional pre-computed offset mesh; if null, it will be computed internally
Properties inherited from MR.Const_ConstantCuspParams
unsafe bool	fromCenterToBoundary `[get]`
	if true isolines will be processed from center point to the boundary (usually it means from up to down)
unsafe float	millRadius `[get]`
	radius of the milling tool
unsafe float	voxelSize `[get]`
	size of voxel needed to offset mesh
unsafe float	sectionStep `[get]`
	distance between sections built along Z axis; in Constant Cusp mode sectionStep should be bigger than voxelSize (x1.2 or more is recommended)
unsafe float	critTransitionLength `[get]`
	if distance to the next section is smaller than it, transition will be performed along the surface; otherwise transition will be through the safe plane
unsafe float	plungeLength `[get]`
	when the mill is moving down, it will be slowed down in this distance from mesh
unsafe float	retractLength `[get]`
	when the mill is moving up, it will be slowed down in this distance from mesh
unsafe float	plungeFeed `[get]`
	speed of slow movement down
unsafe float	retractFeed `[get]`
	speed of slow movement up
unsafe float	baseFeed `[get]`
	speed of regular milling
unsafe float	safeZ `[get]`
	z-coordinate of plane where tool can move in any direction without touching the object
unsafe MR.BypassDirection	bypassDir `[get]`
	which direction isolines or sections should be passed in
unsafe MR.? ConstBox_AffineXf3f	xf `[get]`
	mesh can be transformed using xf parameter
unsafe bool	flatTool `[get]`
	if true then a tool path for a flat milling tool will be generated
unsafe MR.Std.Const_Function_Bool_From_Float	cb `[get, protected set]`
	callback for reporting on progress
unsafe float	toolpathExpansion `[get]`
	if > 0 - expand the trajectory creation area and create toolpath to mill excess material to make empty areas; the area has the shape of a box; lacing specific only
unsafe MR.Std.? Vector_StdVectorMRVector3f	isolines `[get]`
	optional output, stores isolines without transits
unsafe MR.Std.? Vector_StdVectorMRVector3f	startContours `[get]`
	optional output, polyline containing start vertices for isolines
unsafe MR.Std.? Vector_MRVector3f	startVertices `[get]`
	start vertices on the offset mesh used for calculating isolines
unsafe MR.? MeshPart	offsetMesh `[get]`
	optional pre-computed offset mesh; if null, it will be computed internally

Additional Inherited Members
Protected Member Functions inherited from MR.Const_ConstantCuspParams
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_ConstantCuspParams
unsafe bool *	__ref_storage_fromCenterToBoundary
unsafe float *	__ref_storage_millRadius
unsafe float *	__ref_storage_voxelSize
unsafe float *	__ref_storage_sectionStep
unsafe float *	__ref_storage_critTransitionLength
unsafe float *	__ref_storage_plungeLength
unsafe float *	__ref_storage_retractLength
unsafe float *	__ref_storage_plungeFeed
unsafe float *	__ref_storage_retractFeed
unsafe float *	__ref_storage_baseFeed
unsafe float *	__ref_storage_safeZ
unsafe MR.BypassDirection *	__ref_storage_bypassDir
unsafe MR.ConstBox_AffineXf3f._Underlying **	__ptr_storage_xf
unsafe bool *	__ref_storage_flatTool
unsafe float *	__ref_storage_toolpathExpansion
unsafe MR.Std.Vector_StdVectorMRVector3f._Underlying **	__ptr_storage_isolines
unsafe MR.Std.Vector_StdVectorMRVector3f._Underlying **	__ptr_storage_startContours
unsafe MR.Std.Vector_MRVector3f._Underlying **	__ptr_storage_startVertices
unsafe MR.MeshPart._Underlying **	__ptr_storage_offsetMesh

Detailed Description

Tool path parameters specific to the constant-cusp strategy Generated from class MR.ConstantCuspParams. Base classes: Direct: (non-virtual) MR.ToolPathParams This is the non-const half of the class.

Constructor & Destructor Documentation

◆ ConstantCuspParams() [1/4]

unsafe MR.ConstantCuspParams.ConstantCuspParams ( )

inline

Constructs an empty (default-constructed) instance.

◆ ConstantCuspParams() [2/4]

unsafe MR.ConstantCuspParams.ConstantCuspParams ( MR._ByValue_ConstantCuspParams _other )

inline

Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.

◆ ConstantCuspParams() [3/4]

MR.ConstantCuspParams.ConstantCuspParams ( Const_ConstantCuspParams _other )

inline

Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.

◆ ConstantCuspParams() [4/4]

MR.ConstantCuspParams.ConstantCuspParams ( ConstantCuspParams _other )

inline

Generated from constructor MR.ConstantCuspParams.ConstantCuspParams.

Member Function Documentation

◆ assign()

unsafe MR.ConstantCuspParams MR.ConstantCuspParams.assign ( MR._ByValue_ConstantCuspParams _other )

inline

Generated from method MR::ConstantCuspParams::operator=.

◆ operator MR.ToolPathParams()

unsafe implicit MR.ConstantCuspParams.operator MR.ToolPathParams ( ConstantCuspParams self )

inlinestatic

Property Documentation

◆ baseFeed

new unsafe ref float MR.ConstantCuspParams.baseFeed

get

speed of regular milling

◆ bypassDir

new unsafe ref MR.BypassDirection MR.ConstantCuspParams.bypassDir

get

which direction isolines or sections should be passed in

◆ cb

new unsafe MR.Std.Function_Bool_From_Float MR.ConstantCuspParams.cb

getprotected set

callback for reporting on progress

◆ critTransitionLength

new unsafe ref float MR.ConstantCuspParams.critTransitionLength

get

if distance to the next section is smaller than it, transition will be performed along the surface; otherwise transition will be through the safe plane

◆ flatTool

new unsafe ref bool MR.ConstantCuspParams.flatTool

get

if true then a tool path for a flat milling tool will be generated

◆ fromCenterToBoundary

new unsafe ref bool MR.ConstantCuspParams.fromCenterToBoundary

get

if true isolines will be processed from center point to the boundary (usually it means from up to down)

◆ isolines

new unsafe MR.Std.? Vector_StdVectorMRVector3f MR.ConstantCuspParams.isolines

getset

optional output, stores isolines without transits

◆ millRadius

new unsafe ref float MR.ConstantCuspParams.millRadius

get

radius of the milling tool

◆ offsetMesh

new unsafe MR.? MeshPart MR.ConstantCuspParams.offsetMesh

getset

optional pre-computed offset mesh; if null, it will be computed internally

◆ plungeFeed

new unsafe ref float MR.ConstantCuspParams.plungeFeed

get

speed of slow movement down

◆ plungeLength

new unsafe ref float MR.ConstantCuspParams.plungeLength

get

when the mill is moving down, it will be slowed down in this distance from mesh

◆ retractFeed

new unsafe ref float MR.ConstantCuspParams.retractFeed

get

speed of slow movement up

◆ retractLength

new unsafe ref float MR.ConstantCuspParams.retractLength

get

when the mill is moving up, it will be slowed down in this distance from mesh

◆ safeZ

new unsafe ref float MR.ConstantCuspParams.safeZ

get

z-coordinate of plane where tool can move in any direction without touching the object

◆ sectionStep

new unsafe ref float MR.ConstantCuspParams.sectionStep

get

distance between sections built along Z axis; in Constant Cusp mode sectionStep should be bigger than voxelSize (x1.2 or more is recommended)

◆ startContours

new unsafe MR.Std.? Vector_StdVectorMRVector3f MR.ConstantCuspParams.startContours

getset

optional output, polyline containing start vertices for isolines

◆ startVertices

new unsafe MR.Std.? Vector_MRVector3f MR.ConstantCuspParams.startVertices

getset

start vertices on the offset mesh used for calculating isolines

◆ toolpathExpansion

new unsafe ref float MR.ConstantCuspParams.toolpathExpansion

get

if > 0 - expand the trajectory creation area and create toolpath to mill excess material to make empty areas; the area has the shape of a box; lacing specific only

◆ voxelSize

new unsafe ref float MR.ConstantCuspParams.voxelSize

get

size of voxel needed to offset mesh

◆ xf

new unsafe MR.? ConstBox_AffineXf3f MR.ConstantCuspParams.xf

getset

mesh can be transformed using xf parameter

The documentation for this class was generated from the following file:

MRToolPath.cs

Public Member Functions

Static Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ConstantCuspParams() [1/4]

◆ ConstantCuspParams() [2/4]

◆ ConstantCuspParams() [3/4]

◆ ConstantCuspParams() [4/4]

Member Function Documentation

◆ assign()

◆ operator MR.ToolPathParams()

Property Documentation

◆ baseFeed

◆ bypassDir

◆ cb

◆ critTransitionLength

◆ flatTool

◆ fromCenterToBoundary

◆ isolines

◆ millRadius

◆ offsetMesh

◆ plungeFeed

◆ plungeLength

◆ retractFeed

◆ retractLength

◆ safeZ

◆ sectionStep

◆ startContours

◆ startVertices

◆ toolpathExpansion

◆ voxelSize

◆ xf
