this class allows to store distances from the plane in particular pixels validVerts keeps only pixels with mesh-intersecting rays from them Generated from class MR.DistanceMap. Base classes: Direct: (non-virtual) MR.RectIndexer This is the non-const half of the class. More...

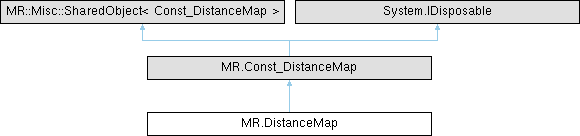

Inheritance diagram for MR.DistanceMap:

Public Member Functions
unsafe	DistanceMap ()
	Constructs an empty (default-constructed) instance.
unsafe	DistanceMap (MR._ByValue_DistanceMap _other)
	Generated from constructor MR.DistanceMap.DistanceMap.
	DistanceMap (Const_DistanceMap _other)
	Generated from constructor MR.DistanceMap.DistanceMap.
	DistanceMap (DistanceMap _other)
	Generated from constructor MR.DistanceMap.DistanceMap.
unsafe	DistanceMap (ulong resX, ulong resY)
	Preferable constructor with resolution arguments Access by the index (i) is equal to (y*resX + x) Generated from constructor MR.DistanceMap.DistanceMap.
unsafe	DistanceMap (MR.Const_Matrix_Float m)
	make from 2d array Generated from constructor MR.DistanceMap.DistanceMap.
unsafe MR.DistanceMap	assign (MR._ByValue_DistanceMap _other)
	Generated from method MR::DistanceMap::operator=.
unsafe new ref float	getValue (ulong x, ulong y)
	returns value in (X,Y) element without check on valid use this only if you sure that distance map has no invalid values or for serialization Generated from method MR.DistanceMap.getValue.
unsafe new ref float	getValue (ulong i)
	Generated from method MR.DistanceMap.getValue.
unsafe new MR.Misc.? Ref< float >	data ()
	Generated from method MR.DistanceMap.data.
unsafe void	negate ()
	replaces every valid element in the map with its negative value Generated from method MR.DistanceMap.negate.
unsafe MR.Const_DistanceMap	mergeMax (MR.Const_DistanceMap rhs)
	replaces values with cell-wise maximum values. Invalid values remain only if both corresponding cells are invalid Generated from method MR.DistanceMap.mergeMax.
unsafe MR.Const_DistanceMap	mergeMin (MR.Const_DistanceMap rhs)
	replaces values with cell-wise minimum values. Invalid values remain only if both corresponding cells are invalid Generated from method MR.DistanceMap.mergeMin.
unsafe MR.Const_DistanceMap	subAssign (MR.Const_DistanceMap rhs)
	replaces values with cell-wise subtracted values. Invalid values remain only if both corresponding cells are invalid Generated from method MR::DistanceMap::operator-=.
unsafe void	set (ulong x, ulong y, float val)
	sets value in (X,Y) element (the coords must be valid, UB otherwise) Generated from method MR.DistanceMap.set.
unsafe void	set (ulong i, float val)
	sets value in index element (the coord must be valid, UB otherwise) Generated from method MR.DistanceMap.set.
unsafe void	set (MR.Std._ByValue_Vector_Float data)
	sets all values at one time Generated from method MR.DistanceMap.set.
unsafe void	unset (ulong x, ulong y)
	invalidates value in (X,Y) element (the coords must be valid, UB otherwise) Generated from method MR.DistanceMap.unset.
unsafe void	unset (ulong i)
	invalidates value in index element (the coord must be valid, UB otherwise) Generated from method MR.DistanceMap.unset.
unsafe void	invalidateAll ()
	invalidates all elements Generated from method MR.DistanceMap.invalidateAll.
unsafe void	clear ()
	clears data, sets resolutions to zero Generated from method MR.DistanceMap.clear.
unsafe void	resize (in MR.Vector2i dims)
	Generated from method MR.DistanceMap.resize.
Public Member Functions inherited from MR.Const_DistanceMap
virtual void	Dispose ()
unsafe	Const_DistanceMap ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_DistanceMap (MR._ByValue_DistanceMap _other)
	Generated from constructor MR.DistanceMap.DistanceMap.
	Const_DistanceMap (Const_DistanceMap _other)
	Generated from constructor MR.DistanceMap.DistanceMap.
	Const_DistanceMap (DistanceMap _other)
	Generated from constructor MR.DistanceMap.DistanceMap.
unsafe	Const_DistanceMap (ulong resX, ulong resY)
	Preferable constructor with resolution arguments Access by the index (i) is equal to (y*resX + x) Generated from constructor MR.DistanceMap.DistanceMap.
unsafe	Const_DistanceMap (MR.Const_Matrix_Float m)
	make from 2d array Generated from constructor MR.DistanceMap.DistanceMap.
unsafe bool	isValid (ulong x, ulong y)
	checks if X,Y element is valid (i.e. not NOT_VALID_VALUE; passing invalid coords to this is UB) Generated from method MR.DistanceMap.isValid.
unsafe bool	isValid (ulong i)
	checks if index element is valid (i.e. not NOT_VALID_VALUE; passing an invalid coord to this is UB) Generated from method MR.DistanceMap.isValid.
unsafe bool	isInBounds (ulong x, ulong y)
	Returns true if (X,Y) coordinates are in bounds. Generated from method MR.DistanceMap.isInBounds.
unsafe bool	isInBounds (ulong i)
	Returns true if a flattened coordinate is in bounds. Generated from method MR.DistanceMap.isInBounds.
unsafe MR.Std.Optional_Float	get (ulong x, ulong y)
	returns value in (X,Y) element, returns nullopt if not valid (see isValid()), UB if out of bounds. Generated from method MR.DistanceMap.get.
unsafe MR.Std.Optional_Float	get (ulong i)
	returns value of index element, returns nullopt if not valid (see isValid()), UB if out of bounds. Generated from method MR.DistanceMap.get.
unsafe float	getValue (ulong x, ulong y)
	Generated from method MR.DistanceMap.getValue.
unsafe float	getValue (ulong i)
	Generated from method MR.DistanceMap.getValue.
unsafe? float	data ()
	Generated from method MR.DistanceMap.data.
unsafe MR.Std.Optional_Float	getInterpolated (float x, float y)
	finds interpolated value.
unsafe MR.Std.Optional_MRVector3f	unproject (ulong x, ulong y, in MR.AffineXf3f toWorld)
	finds 3d coordinates of the Point on the model surface for the (x,y) pixel Use the same params with distance map creation (x,y) must be in bounds, the behavior is undefined otherwise. Generated from method MR.DistanceMap.unproject.
unsafe MR.Std.Optional_MRVector3f	unprojectInterpolated (float x, float y, in MR.AffineXf3f toWorld)
	finds 3d coordinates of the Point on the model surface for the (x,y) interpolated value
unsafe MR.DistanceMap	max (MR.Const_DistanceMap rhs)
	boolean operators returns new Distance Map with cell-wise maximum values. Invalid values remain only if both corresponding cells are invalid Generated from method MR.DistanceMap.max.
unsafe MR.DistanceMap	min (MR.Const_DistanceMap rhs)
	returns new Distance Map with cell-wise minimum values. Invalid values remain only if both corresponding cells are invalid Generated from method MR.DistanceMap.min.
unsafe MR.DistanceMap	getDerivativeMap ()
	returns new derivatives map without directions Generated from method MR.DistanceMap.getDerivativeMap.
unsafe MR.Std.Pair_MRDistanceMap_MRDistanceMap	getXYDerivativeMaps ()
	returns new derivative maps with X and Y axes direction Generated from method MR.DistanceMap.getXYDerivativeMaps.
unsafe MR.Std.Vector_StdPairMRUint64TMRUint64T	getLocalMaximums ()
	computes single derivative map from XY spaces combined. Returns local maximums then Generated from method MR.DistanceMap.getLocalMaximums.
unsafe ulong	resX ()
	returns X resolution Generated from method MR.DistanceMap.resX.
unsafe ulong	resY ()
	returns Y resolution Generated from method MR.DistanceMap.resY.
unsafe ulong	numPoints ()
	returns the number of pixels Generated from method MR.DistanceMap.numPoints.
unsafe MR.Std.Pair_Float_Float	getMinMaxValues ()
	finds minimum and maximum values returns min_float and max_float if all values are invalid Generated from method MR.DistanceMap.getMinMaxValues.
unsafe MR.Std.Pair_MRUint64T_MRUint64T	getMinIndex ()
	finds minimum value X,Y returns [-1.-1] if all values are invalid Generated from method MR.DistanceMap.getMinIndex.
unsafe MR.Std.Pair_MRUint64T_MRUint64T	getMaxIndex ()
	finds maximum value X,Y returns [-1.-1] if all values are invalid Generated from method MR.DistanceMap.getMaxIndex.
unsafe ulong	heapBytes ()
	returns the amount of memory this object occupies on heap Generated from method MR.DistanceMap.heapBytes.
unsafe ref readonly MR.Vector2i	dims ()
	Generated from method MR.DistanceMap.dims.
unsafe ulong	size ()
	Generated from method MR.DistanceMap.size.
unsafe MR.PixelId	toPixelId (in MR.Vector2i pos)
	Generated from method MR.DistanceMap.toPixelId.
unsafe ulong	toIndex (in MR.Vector2i pos)
	Generated from method MR.DistanceMap.toIndex.

Static Public Member Functions
static unsafe implicit	operator MR.RectIndexer (DistanceMap self)
static unsafe implicit	operator DistanceMap (MR.Const_Matrix_Float m)
	make from 2d array Generated from constructor MR.DistanceMap.DistanceMap.
Static Public Member Functions inherited from MR.Const_DistanceMap
static unsafe implicit	operator MR.Const_RectIndexer (Const_DistanceMap self)
static unsafe implicit	operator Const_DistanceMap (MR.Const_Matrix_Float m)
	make from 2d array Generated from constructor MR.DistanceMap.DistanceMap.
static unsafe MR.DistanceMap	operator- (MR.Const_DistanceMap _this, MR.Const_DistanceMap rhs)
	returns new Distance Map with cell-wise subtracted values. Invalid values remain only if both corresponding cells are invalid Generated from method MR::DistanceMap::operator-.

Additional Inherited Members
Protected Member Functions inherited from MR.Const_DistanceMap
virtual unsafe void	Dispose (bool disposing)
Static Protected Attributes inherited from MR.Const_DistanceMap
static unsafe float *	__ref_storage_NOTVALIDVALUE
Properties inherited from MR.Const_DistanceMap
static unsafe float	NOTVALIDVALUE `[get]`
	a constant that is treated as 'no value' or 'invalid value'

Detailed Description

this class allows to store distances from the plane in particular pixels validVerts keeps only pixels with mesh-intersecting rays from them Generated from class MR.DistanceMap. Base classes: Direct: (non-virtual) MR.RectIndexer This is the non-const half of the class.

Constructor & Destructor Documentation

◆ DistanceMap() [1/6]

unsafe MR.DistanceMap.DistanceMap ( )

inline

Constructs an empty (default-constructed) instance.

◆ DistanceMap() [2/6]

unsafe MR.DistanceMap.DistanceMap ( MR._ByValue_DistanceMap _other )

inline

Generated from constructor MR.DistanceMap.DistanceMap.

◆ DistanceMap() [3/6]

MR.DistanceMap.DistanceMap ( Const_DistanceMap _other )

inline

Generated from constructor MR.DistanceMap.DistanceMap.

◆ DistanceMap() [4/6]

MR.DistanceMap.DistanceMap ( DistanceMap _other )

inline

Generated from constructor MR.DistanceMap.DistanceMap.

◆ DistanceMap() [5/6]

unsafe MR.DistanceMap.DistanceMap	(	ulong	resX,
		ulong	resY )

inline

Preferable constructor with resolution arguments Access by the index (i) is equal to (y*resX + x) Generated from constructor MR.DistanceMap.DistanceMap.

◆ DistanceMap() [6/6]

unsafe MR.DistanceMap.DistanceMap ( MR.Const_Matrix_Float m )

inline

make from 2d array Generated from constructor MR.DistanceMap.DistanceMap.

Member Function Documentation

◆ assign()

unsafe MR.DistanceMap MR.DistanceMap.assign ( MR._ByValue_DistanceMap _other )

inline

Generated from method MR::DistanceMap::operator=.

◆ clear()

unsafe void MR.DistanceMap.clear ( )

inline

clears data, sets resolutions to zero Generated from method MR.DistanceMap.clear.

◆ data()

unsafe new MR.Misc.? Ref< float > MR.DistanceMap.data ( )

inline

Generated from method MR.DistanceMap.data.

◆ getValue() [1/2]

unsafe new ref float MR.DistanceMap.getValue ( ulong i )

inline

Generated from method MR.DistanceMap.getValue.

◆ getValue() [2/2]

unsafe new ref float MR.DistanceMap.getValue	(	ulong	x,
		ulong	y )

inline

returns value in (X,Y) element without check on valid use this only if you sure that distance map has no invalid values or for serialization Generated from method MR.DistanceMap.getValue.

◆ invalidateAll()

unsafe void MR.DistanceMap.invalidateAll ( )

inline

invalidates all elements Generated from method MR.DistanceMap.invalidateAll.

◆ mergeMax()

unsafe MR.Const_DistanceMap MR.DistanceMap.mergeMax ( MR.Const_DistanceMap rhs )

inline

replaces values with cell-wise maximum values. Invalid values remain only if both corresponding cells are invalid Generated from method MR.DistanceMap.mergeMax.

◆ mergeMin()

unsafe MR.Const_DistanceMap MR.DistanceMap.mergeMin ( MR.Const_DistanceMap rhs )

inline

replaces values with cell-wise minimum values. Invalid values remain only if both corresponding cells are invalid Generated from method MR.DistanceMap.mergeMin.

◆ negate()

unsafe void MR.DistanceMap.negate ( )

inline

replaces every valid element in the map with its negative value Generated from method MR.DistanceMap.negate.

◆ operator DistanceMap()

unsafe implicit MR.DistanceMap.operator DistanceMap ( MR.Const_Matrix_Float m )

inlinestatic

make from 2d array Generated from constructor MR.DistanceMap.DistanceMap.

◆ operator MR.RectIndexer()

unsafe implicit MR.DistanceMap.operator MR.RectIndexer ( DistanceMap self )

inlinestatic

◆ resize()

unsafe void MR.DistanceMap.resize ( in MR.Vector2i dims )

inline

Generated from method MR.DistanceMap.resize.

◆ set() [1/3]

unsafe void MR.DistanceMap.set ( MR.Std._ByValue_Vector_Float data )

inline

sets all values at one time Generated from method MR.DistanceMap.set.

◆ set() [2/3]

unsafe void MR.DistanceMap.set	(	ulong	i,
		float	val )

inline

sets value in index element (the coord must be valid, UB otherwise) Generated from method MR.DistanceMap.set.

◆ set() [3/3]

unsafe void MR.DistanceMap.set	(	ulong	x,
		ulong	y,
		float	val )

inline

sets value in (X,Y) element (the coords must be valid, UB otherwise) Generated from method MR.DistanceMap.set.

◆ subAssign()

unsafe MR.Const_DistanceMap MR.DistanceMap.subAssign ( MR.Const_DistanceMap rhs )

inline

replaces values with cell-wise subtracted values. Invalid values remain only if both corresponding cells are invalid Generated from method MR::DistanceMap::operator-=.

◆ unset() [1/2]

unsafe void MR.DistanceMap.unset ( ulong i )

inline

invalidates value in index element (the coord must be valid, UB otherwise) Generated from method MR.DistanceMap.unset.

◆ unset() [2/2]

unsafe void MR.DistanceMap.unset	(	ulong	x,
		ulong	y )

inline

invalidates value in (X,Y) element (the coords must be valid, UB otherwise) Generated from method MR.DistanceMap.unset.

The documentation for this class was generated from the following file:

MRDistanceMap.cs

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DistanceMap() [1/6]

◆ DistanceMap() [2/6]

◆ DistanceMap() [3/6]

◆ DistanceMap() [4/6]

◆ DistanceMap() [5/6]

◆ DistanceMap() [6/6]

Member Function Documentation

◆ assign()

◆ clear()

◆ data()

◆ getValue() [1/2]

◆ getValue() [2/2]

◆ invalidateAll()

◆ mergeMax()

◆ mergeMin()

◆ negate()

◆ operator DistanceMap()

◆ operator MR.RectIndexer()

◆ resize()

◆ set() [1/3]

◆ set() [2/3]

◆ set() [3/3]

◆ subAssign()

◆ unset() [1/2]

◆ unset() [2/2]
