MR.EdgePathsBuilderT_MRMetricToAStarPenalty Class Reference

the class is responsible for finding smallest metric edge paths on a mesh Generated from class MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>. Derived classes: Direct: (non-virtual) MR.EdgePathsAStarBuilder This is the non-const half of the class. More...

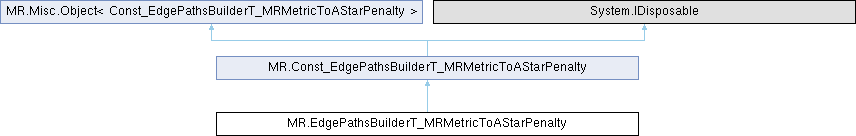

Inheritance diagram for MR.EdgePathsBuilderT_MRMetricToAStarPenalty:

Public Member Functions
unsafe	EdgePathsBuilderT_MRMetricToAStarPenalty (MR._ByValue_EdgePathsBuilderT_MRMetricToAStarPenalty _other)
	Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.
	EdgePathsBuilderT_MRMetricToAStarPenalty (Const_EdgePathsBuilderT_MRMetricToAStarPenalty _other)
	Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.
	EdgePathsBuilderT_MRMetricToAStarPenalty (EdgePathsBuilderT_MRMetricToAStarPenalty _other)
	Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.
unsafe	EdgePathsBuilderT_MRMetricToAStarPenalty (MR.Const_MeshTopology topology, MR.Std.Const_Function_FloatFuncFromMREdgeId metric)
	Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.
unsafe	EdgePathsBuilderT_MRMetricToAStarPenalty (MR.Const_MeshTopology topology)
	Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.
unsafe void	reset (MR.Std.Const_Function_FloatFuncFromMREdgeId metric)
	clears everything without freeing memory, and sets new metric Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::reset.
unsafe bool	addStart (MR.VertId startVert, float startMetric)
	compares proposed metric with best value known for startVert; if proposed metric is smaller then adds it in the queue and returns true Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::addStart.
unsafe MR.EdgePathsBuilderT_MRMetricToAStarPenalty.ReachedVert	reachNext ()
	include one more vertex in the final forest, returning vertex-info for the newly reached vertex; returns invalid VertId in v-field if no more vertices left Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::reachNext.
unsafe bool	addOrgRingSteps (MR.EdgePathsBuilderT_MRMetricToAStarPenalty.Const_ReachedVert rv)
	adds steps for all origin ring edges of the reached vertex; returns true if at least one step was added Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::addOrgRingSteps.
unsafe MR.EdgePathsBuilderT_MRMetricToAStarPenalty.ReachedVert	growOneEdge ()
	the same as reachNext() + addOrgRingSteps() Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::growOneEdge.

Detailed Description

the class is responsible for finding smallest metric edge paths on a mesh Generated from class MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>. Derived classes: Direct: (non-virtual) MR.EdgePathsAStarBuilder This is the non-const half of the class.

Constructor & Destructor Documentation

EdgePathsBuilderT_MRMetricToAStarPenalty() [1/5]

unsafe MR.EdgePathsBuilderT_MRMetricToAStarPenalty.EdgePathsBuilderT_MRMetricToAStarPenalty ( MR._ByValue_EdgePathsBuilderT_MRMetricToAStarPenalty _other )

inline

Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.

EdgePathsBuilderT_MRMetricToAStarPenalty() [2/5]

MR.EdgePathsBuilderT_MRMetricToAStarPenalty.EdgePathsBuilderT_MRMetricToAStarPenalty ( Const_EdgePathsBuilderT_MRMetricToAStarPenalty _other )

inline

Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.

EdgePathsBuilderT_MRMetricToAStarPenalty() [3/5]

MR.EdgePathsBuilderT_MRMetricToAStarPenalty.EdgePathsBuilderT_MRMetricToAStarPenalty ( EdgePathsBuilderT_MRMetricToAStarPenalty _other )

inline

Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.

EdgePathsBuilderT_MRMetricToAStarPenalty() [4/5]

unsafe MR.EdgePathsBuilderT_MRMetricToAStarPenalty.EdgePathsBuilderT_MRMetricToAStarPenalty ( MR.Const_MeshTopology topology, MR.Std.Const_Function_FloatFuncFromMREdgeId metric )

inline

Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.

EdgePathsBuilderT_MRMetricToAStarPenalty() [5/5]

unsafe MR.EdgePathsBuilderT_MRMetricToAStarPenalty.EdgePathsBuilderT_MRMetricToAStarPenalty ( MR.Const_MeshTopology topology )

inline

Generated from constructor MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::EdgePathsBuilderT.

Member Function Documentation

addOrgRingSteps()

unsafe bool MR.EdgePathsBuilderT_MRMetricToAStarPenalty.addOrgRingSteps ( MR.EdgePathsBuilderT_MRMetricToAStarPenalty.Const_ReachedVert rv )

inline

adds steps for all origin ring edges of the reached vertex; returns true if at least one step was added Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::addOrgRingSteps.

addStart()

unsafe bool MR.EdgePathsBuilderT_MRMetricToAStarPenalty.addStart ( MR.VertId startVert, float startMetric )

inline

compares proposed metric with best value known for startVert; if proposed metric is smaller then adds it in the queue and returns true Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::addStart.

growOneEdge()

unsafe MR.EdgePathsBuilderT_MRMetricToAStarPenalty.ReachedVert MR.EdgePathsBuilderT_MRMetricToAStarPenalty.growOneEdge ( )

inline

the same as reachNext() + addOrgRingSteps() Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::growOneEdge.

reachNext()

unsafe MR.EdgePathsBuilderT_MRMetricToAStarPenalty.ReachedVert MR.EdgePathsBuilderT_MRMetricToAStarPenalty.reachNext ( )

inline

include one more vertex in the final forest, returning vertex-info for the newly reached vertex; returns invalid VertId in v-field if no more vertices left Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::reachNext.

reset()

unsafe void MR.EdgePathsBuilderT_MRMetricToAStarPenalty.reset ( MR.Std.Const_Function_FloatFuncFromMREdgeId metric )

inline

clears everything without freeing memory, and sets new metric Generated from method MR.EdgePathsBuilderT<MR.MetricToAStarPenalty>::reset.

---

The documentation for this class was generated from the following file:

• MREdgePathsBuilder.cs
