MR.FixUndercuts.FixParams Class Reference

Fix undercuts function parameters Generated from class MR.FixUndercuts.FixParams. This is the non-const half of the class. More...

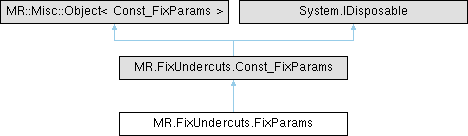

Inheritance diagram for MR.FixUndercuts.FixParams:

Public Member Functions
unsafe	FixParams ()
	Constructs an empty (default-constructed) instance.
unsafe	FixParams (MR.FixUndercuts.Const_FindParams findParameters, float voxelSize, float bottomExtension, MR.Const_FaceBitSet? region, bool smooth, MR.Std._ByValue_Function_BoolFuncFromFloat cb)
	Constructs MR.FixUndercuts.FixParams elementwise.
unsafe	FixParams (MR.FixUndercuts._ByValue_FixParams _other)
	Generated from constructor MR.FixUndercuts.FixParams.FixParams.
	FixParams (Const_FixParams _other)
	Generated from constructor MR.FixUndercuts.FixParams.FixParams.
	FixParams (FixParams _other)
	Generated from constructor MR.FixUndercuts.FixParams.FixParams.
unsafe MR.FixUndercuts.FixParams	assign (MR.FixUndercuts._ByValue_FixParams _other)
	Generated from method MR.FixUndercuts.FixParams.operator=.

Properties
new unsafe MR.FixUndercuts.FindParams	findParameters [get, protected set]
	parameters of what is considered as undercut
new unsafe ref float	voxelSize [get]
	voxel size for internal computations: lower size - better precision but more system resources required
new unsafe ref float	bottomExtension [get]
	minimum extension of bottom part of the mesh
new unsafe MR.? Const_FaceBitSet	region [get, set]
	if set - only this region will be fixed (but still all mesh will be rebuild)
new unsafe ref bool	smooth [get]
	if true applies one iterations of gaussian filtering for voxels, useful if thin walls expected
new unsafe MR.Std.Function_BoolFuncFromFloat	cb [get, protected set]

Detailed Description

Fix undercuts function parameters Generated from class MR.FixUndercuts.FixParams. This is the non-const half of the class.

Constructor & Destructor Documentation

FixParams() [1/5]

unsafe MR.FixUndercuts.FixParams.FixParams ( )

inline

Constructs an empty (default-constructed) instance.

FixParams() [2/5]

unsafe MR.FixUndercuts.FixParams.FixParams ( MR.FixUndercuts.Const_FindParams findParameters, float voxelSize, float bottomExtension, MR.Const_FaceBitSet? region, bool smooth, MR.Std._ByValue_Function_BoolFuncFromFloat cb )

inline

Constructs MR.FixUndercuts.FixParams elementwise.

FixParams() [3/5]

unsafe MR.FixUndercuts.FixParams.FixParams ( MR.FixUndercuts._ByValue_FixParams _other )

inline

Generated from constructor MR.FixUndercuts.FixParams.FixParams.

FixParams() [4/5]

MR.FixUndercuts.FixParams.FixParams ( Const_FixParams _other )

inline

Generated from constructor MR.FixUndercuts.FixParams.FixParams.

FixParams() [5/5]

MR.FixUndercuts.FixParams.FixParams ( FixParams _other )

inline

Generated from constructor MR.FixUndercuts.FixParams.FixParams.

Member Function Documentation

assign()

unsafe MR.FixUndercuts.FixParams MR.FixUndercuts.FixParams.assign ( MR.FixUndercuts._ByValue_FixParams _other )

inline

Generated from method MR.FixUndercuts.FixParams.operator=.

Property Documentation

bottomExtension

new unsafe ref float MR.FixUndercuts.FixParams.bottomExtension

get

minimum extension of bottom part of the mesh

cb

new unsafe MR.Std.Function_BoolFuncFromFloat MR.FixUndercuts.FixParams.cb

getprotected set

findParameters

new unsafe MR.FixUndercuts.FindParams MR.FixUndercuts.FixParams.findParameters

getprotected set

parameters of what is considered as undercut

region

new unsafe MR.? Const_FaceBitSet MR.FixUndercuts.FixParams.region

getset

if set - only this region will be fixed (but still all mesh will be rebuild)

smooth

new unsafe ref bool MR.FixUndercuts.FixParams.smooth

get

if true applies one iterations of gaussian filtering for voxels, useful if thin walls expected

voxelSize

new unsafe ref float MR.FixUndercuts.FixParams.voxelSize

get

voxel size for internal computations: lower size - better precision but more system resources required

---

The documentation for this class was generated from the following file:

• MRFixUndercuts.cs
