MR.InflateSettings Class Reference

Generated from class MR.InflateSettings. This is the non-const half of the class. More...

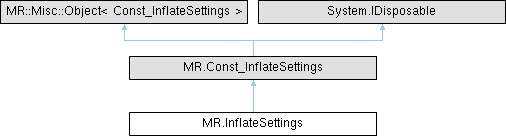

Inheritance diagram for MR.InflateSettings:

Public Member Functions
unsafe	InflateSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	InflateSettings (float pressure, int iterations, bool preSmooth, bool gradualPressureGrowth)
	Constructs MR.InflateSettings elementwise.
unsafe	InflateSettings (MR.Const_InflateSettings _other)
	Generated from constructor MR.InflateSettings.InflateSettings.
	InflateSettings (InflateSettings _other)
	Generated from constructor MR.InflateSettings.InflateSettings.
unsafe MR.InflateSettings	assign (MR.Const_InflateSettings _other)
	Generated from method MR.InflateSettings.operator=.

Properties
new unsafe ref float	pressure [get]
new unsafe ref int	iterations [get]
new unsafe ref bool	preSmooth [get]
new unsafe ref bool	gradualPressureGrowth [get]
	whether to increase the pressure gradually during the iterations (recommended for best quality)

Detailed Description

Generated from class MR.InflateSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

InflateSettings() [1/4]

unsafe MR.InflateSettings.InflateSettings ( )

inline

Constructs an empty (default-constructed) instance.

InflateSettings() [2/4]

unsafe MR.InflateSettings.InflateSettings ( float pressure, int iterations, bool preSmooth, bool gradualPressureGrowth )

inline

Constructs MR.InflateSettings elementwise.

InflateSettings() [3/4]

unsafe MR.InflateSettings.InflateSettings ( MR.Const_InflateSettings _other )

inline

Generated from constructor MR.InflateSettings.InflateSettings.

InflateSettings() [4/4]

MR.InflateSettings.InflateSettings ( InflateSettings _other )

inline

Generated from constructor MR.InflateSettings.InflateSettings.

Member Function Documentation

assign()

unsafe MR.InflateSettings MR.InflateSettings.assign ( MR.Const_InflateSettings _other )

inline

Generated from method MR.InflateSettings.operator=.

Property Documentation

gradualPressureGrowth

new unsafe ref bool MR.InflateSettings.gradualPressureGrowth

get

whether to increase the pressure gradually during the iterations (recommended for best quality)

iterations

new unsafe ref int MR.InflateSettings.iterations

get

the number of internal iterations (>=1); larger number of iterations makes the performance slower, but the quality better

preSmooth

new unsafe ref bool MR.InflateSettings.preSmooth

get

smooths the area before starting inflation; please set to false only if the region is known to be already smooth

pressure

new unsafe ref float MR.InflateSettings.pressure

get

the amount of pressure applied to mesh region: positive pressure moves the vertices outside, negative - inside; please specify a value by magnitude about the region diagonal

---

The documentation for this class was generated from the following file:

• MRPositionVertsSmoothly.cs
