MR.Line3f Class Reference

2- or 3-dimensional line: cross( x - p, d ) = 0 Generated from class MR.Line3f. This is the non-const half of the class. More...

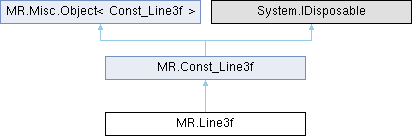

Inheritance diagram for MR.Line3f:

Public Member Functions
unsafe	Line3f ()
	Constructs an empty (default-constructed) instance.
unsafe	Line3f (MR.Const_Line3f _other)
	Generated from constructor MR.Line3f.Line3f.
	Line3f (Line3f _other)
	Generated from constructor MR.Line3f.Line3f.
unsafe	Line3f (in MR.Vector3f p, in MR.Vector3f d)
	Generated from constructor MR.Line3f.Line3f.
unsafe	Line3f (MR.Const_Line3d l)
	Generated from constructor MR.Line3f.Line3f.
unsafe MR.Line3f	assign (MR.Const_Line3f _other)
	Generated from method MR::Line3f::operator=.
Public Member Functions inherited from MR.Const_Line3f
virtual void	Dispose ()
unsafe	Const_Line3f ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_Line3f (MR.Const_Line3f _other)
	Generated from constructor MR.Line3f.Line3f.
	Const_Line3f (Line3f _other)
	Generated from constructor MR.Line3f.Line3f.
unsafe	Const_Line3f (in MR.Vector3f p, in MR.Vector3f d)
	Generated from constructor MR.Line3f.Line3f.
unsafe	Const_Line3f (MR.Const_Line3d l)
	Generated from constructor MR.Line3f.Line3f.
unsafe MR.Vector3f	call (float param)
	returns point on the line, where param=0 returns p and param=1 returns p+d Generated from method MR::Line3f::operator().
unsafe float	distanceSq (in MR.Vector3f x)
	returns squared distance from given point to this line Generated from method MR.Line3f.distanceSq.
unsafe MR.Line3f	normalized ()
	returns same line represented with unit d-vector Generated from method MR.Line3f.normalized.
unsafe float	projectionParam (in MR.Vector3f x)
	finds the parameter of the closest point to the given one on this line Generated from method MR.Line3f.projectionParam.
unsafe MR.Vector3f	project (in MR.Vector3f x)
	finds the closest point to the given one on this line Generated from method MR.Line3f.project.

Properties
new unsafe ref MR.Vector3f	p [get]
new unsafe ref MR.Vector3f	d [get]
Properties inherited from MR.Const_Line3f
unsafe ref readonly MR.Vector3f	p [get]
unsafe ref readonly MR.Vector3f	d [get]

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_Line3f
static unsafe MR.Line3f	operator- (MR.Const_Line3f _this)
	returns same line represented with flipped direction of d-vector Generated from method MR::Line3f::operator-.
static unsafe MR.Const_Line3f	operator+ (MR.Const_Line3f _this)
	returns same representation Generated from method MR::Line3f::operator+.
Protected Member Functions inherited from MR.Const_Line3f
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_Line3f
unsafe MR.Vector3f *	__ref_storage_p
unsafe MR.Vector3f *	__ref_storage_d

Detailed Description

2- or 3-dimensional line: cross( x - p, d ) = 0 Generated from class MR.Line3f. This is the non-const half of the class.

Constructor & Destructor Documentation

Line3f() [1/5]

unsafe MR.Line3f.Line3f ( )

inline

Constructs an empty (default-constructed) instance.

Line3f() [2/5]

unsafe MR.Line3f.Line3f ( MR.Const_Line3f _other )

inline

Generated from constructor MR.Line3f.Line3f.

Line3f() [3/5]

MR.Line3f.Line3f ( Line3f _other )

inline

Generated from constructor MR.Line3f.Line3f.

Line3f() [4/5]

unsafe MR.Line3f.Line3f ( in MR.Vector3f p, in MR.Vector3f d )

inline

Generated from constructor MR.Line3f.Line3f.

Line3f() [5/5]

unsafe MR.Line3f.Line3f ( MR.Const_Line3d l )

inline

Generated from constructor MR.Line3f.Line3f.

Member Function Documentation

assign()

unsafe MR.Line3f MR.Line3f.assign ( MR.Const_Line3f _other )

inline

Generated from method MR::Line3f::operator=.

Property Documentation

d

new unsafe ref MR.Vector3f MR.Line3f.d

get

p

new unsafe ref MR.Vector3f MR.Line3f.p

get

---

The documentation for this class was generated from the following file:

• MRLine.cs
