MR.MakeSignedByWindingNumberSettings Class Reference

Generated from class MR.MakeSignedByWindingNumberSettings. This is the non-const half of the class. More...

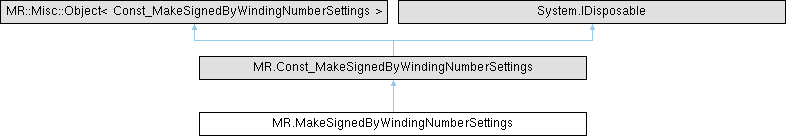

Inheritance diagram for MR.MakeSignedByWindingNumberSettings:

Public Member Functions
unsafe	MakeSignedByWindingNumberSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	MakeSignedByWindingNumberSettings (MR.AffineXf3f meshToGridXf, MR.Std._ByValue_SharedPtr_MRIFastWindingNumber fwn, float windingNumberThreshold, float windingNumberBeta, MR.Std._ByValue_Function_BoolFuncFromFloat progress)
	Constructs MR.MakeSignedByWindingNumberSettings elementwise.
unsafe	MakeSignedByWindingNumberSettings (MR._ByValue_MakeSignedByWindingNumberSettings _other)
	Generated from constructor MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings.
	MakeSignedByWindingNumberSettings (Const_MakeSignedByWindingNumberSettings _other)
	Generated from constructor MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings.
	MakeSignedByWindingNumberSettings (MakeSignedByWindingNumberSettings _other)
	Generated from constructor MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings.
unsafe MR.MakeSignedByWindingNumberSettings	assign (MR._ByValue_MakeSignedByWindingNumberSettings _other)
	Generated from method MR::MakeSignedByWindingNumberSettings::operator=.

Properties
new unsafe ref MR.AffineXf3f	meshToGridXf [get]
	defines the mapping from mesh reference from to grid reference frame
new unsafe MR.Std.SharedPtr_MRIFastWindingNumber	fwn [get, protected set]
	defines particular implementation of IFastWindingNumber interface that will compute windings. If it is not specified, default FastWindingNumber is used
new unsafe ref float	windingNumberThreshold [get]
	positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes
new unsafe ref float	windingNumberBeta [get]
	determines the precision of fast approximation: the more the better, minimum value is 1
new unsafe MR.Std.Function_Bool_From_Float	progress [get, protected set]
	to report algorithm's progress and to cancel it

Detailed Description

Generated from class MR.MakeSignedByWindingNumberSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

MakeSignedByWindingNumberSettings() [1/5]

unsafe MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings ( )

inline

Constructs an empty (default-constructed) instance.

MakeSignedByWindingNumberSettings() [2/5]

unsafe MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings ( MR.AffineXf3f meshToGridXf, MR.Std._ByValue_SharedPtr_MRIFastWindingNumber fwn, float windingNumberThreshold, float windingNumberBeta, MR.Std._ByValue_Function_BoolFuncFromFloat progress )

inline

Constructs MR.MakeSignedByWindingNumberSettings elementwise.

MakeSignedByWindingNumberSettings() [3/5]

unsafe MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings ( MR._ByValue_MakeSignedByWindingNumberSettings _other )

inline

Generated from constructor MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings.

MakeSignedByWindingNumberSettings() [4/5]

MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings ( Const_MakeSignedByWindingNumberSettings _other )

inline

Generated from constructor MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings.

MakeSignedByWindingNumberSettings() [5/5]

MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings ( MakeSignedByWindingNumberSettings _other )

inline

Generated from constructor MR.MakeSignedByWindingNumberSettings.MakeSignedByWindingNumberSettings.

Member Function Documentation

assign()

unsafe MR.MakeSignedByWindingNumberSettings MR.MakeSignedByWindingNumberSettings.assign ( MR._ByValue_MakeSignedByWindingNumberSettings _other )

inline

Generated from method MR::MakeSignedByWindingNumberSettings::operator=.

Property Documentation

fwn

new unsafe MR.Std.SharedPtr_MRIFastWindingNumber MR.MakeSignedByWindingNumberSettings.fwn

getprotected set

defines particular implementation of IFastWindingNumber interface that will compute windings. If it is not specified, default FastWindingNumber is used

meshToGridXf

new unsafe ref MR.AffineXf3f MR.MakeSignedByWindingNumberSettings.meshToGridXf

get

defines the mapping from mesh reference from to grid reference frame

progress

new unsafe MR.Std.Function_Bool_From_Float MR.MakeSignedByWindingNumberSettings.progress

getprotected set

to report algorithm's progress and to cancel it

windingNumberBeta

new unsafe ref float MR.MakeSignedByWindingNumberSettings.windingNumberBeta

get

determines the precision of fast approximation: the more the better, minimum value is 1

windingNumberThreshold

new unsafe ref float MR.MakeSignedByWindingNumberSettings.windingNumberThreshold

get

positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes

---

The documentation for this class was generated from the following file:

• MRVDBConversions.cs
