MR.MeshBuilder.UniteCloseParams Class Reference

Generated from class MR.MeshBuilder.UniteCloseParams. This is the non-const half of the class. More...

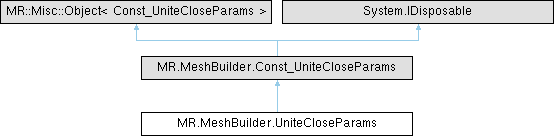

Inheritance diagram for MR.MeshBuilder.UniteCloseParams:

Public Member Functions

unsafe UniteCloseParams ()
 Constructs an empty (default-constructed) instance.
unsafe UniteCloseParams (float closeDist, bool uniteOnlyBd, MR.VertBitSet? region, bool duplicateNonManifold, MR.VertMap? optionalVertOldToNew, MR.Std.Vector_MRMeshBuilderVertDuplication? optionalDuplications)
 Constructs MR.MeshBuilder.UniteCloseParams elementwise.
unsafe UniteCloseParams (MR.MeshBuilder.Const_UniteCloseParams _other)
 Generated from constructor MR.MeshBuilder.UniteCloseParams.UniteCloseParams.
 UniteCloseParams (UniteCloseParams _other)
 Generated from constructor MR.MeshBuilder.UniteCloseParams.UniteCloseParams.
unsafe MR.MeshBuilder.UniteCloseParams assign (MR.MeshBuilder.Const_UniteCloseParams _other)
 Generated from method MR::MeshBuilder::UniteCloseParams::operator=.
Public Member Functions inherited from MR.MeshBuilder.Const_UniteCloseParams
virtual void Dispose ()
unsafe Const_UniteCloseParams ()
 Constructs an empty (default-constructed) instance.
unsafe Const_UniteCloseParams (float closeDist, bool uniteOnlyBd, MR.VertBitSet? region, bool duplicateNonManifold, MR.VertMap? optionalVertOldToNew, MR.Std.Vector_MRMeshBuilderVertDuplication? optionalDuplications)
 Constructs MR.MeshBuilder.UniteCloseParams elementwise.
unsafe Const_UniteCloseParams (MR.MeshBuilder.Const_UniteCloseParams _other)
 Generated from constructor MR.MeshBuilder.UniteCloseParams.UniteCloseParams.
 Const_UniteCloseParams (UniteCloseParams _other)
 Generated from constructor MR.MeshBuilder.UniteCloseParams.UniteCloseParams.

Properties

new unsafe ref float closeDist [get]
 vertices located closer to each other than this distance will be united
new unsafe ref bool uniteOnlyBd [get]
 if true then only boundary vertices can be united, all internal vertices (even close ones) will remain
new unsafe MR.? VertBitSet region [get, set]
 if true, only vertices from this region can be affected
new unsafe ref bool duplicateNonManifold [get]
 if true - try to duplicates non-manifold vertices instead of removing faces
new unsafe MR.? VertMap optionalVertOldToNew [get, set]
 is the mapping of vertices: before -> after
new unsafe MR.Std.? Vector_MRMeshBuilderVertDuplication optionalDuplications [get, set]
 this can be used to map attributes to duplicated vertices
Properties inherited from MR.MeshBuilder.Const_UniteCloseParams
unsafe float closeDist [get]
 vertices located closer to each other than this distance will be united
unsafe bool uniteOnlyBd [get]
 if true then only boundary vertices can be united, all internal vertices (even close ones) will remain
unsafe MR.? VertBitSet region [get]
 if true, only vertices from this region can be affected
unsafe bool duplicateNonManifold [get]
 if true - try to duplicates non-manifold vertices instead of removing faces
unsafe MR.? VertMap optionalVertOldToNew [get]
 is the mapping of vertices: before -> after
unsafe MR.Std.? Vector_MRMeshBuilderVertDuplication optionalDuplications [get]
 this can be used to map attributes to duplicated vertices

Additional Inherited Members

Protected Member Functions inherited from MR.MeshBuilder.Const_UniteCloseParams
virtual unsafe void Dispose (bool disposing)
Protected Attributes inherited from MR.MeshBuilder.Const_UniteCloseParams
unsafe float * __ref_storage_closeDist
unsafe bool * __ref_storage_uniteOnlyBd
unsafe MR.VertBitSet._Underlying ** __ptr_storage_region
unsafe bool * __ref_storage_duplicateNonManifold
unsafe MR.VertMap._Underlying ** __ptr_storage_optionalVertOldToNew
unsafe MR.Std.Vector_MRMeshBuilderVertDuplication._Underlying ** __ptr_storage_optionalDuplications

Detailed Description

Generated from class MR.MeshBuilder.UniteCloseParams. This is the non-const half of the class.

Constructor & Destructor Documentation

◆ UniteCloseParams() [1/4]

unsafe MR.MeshBuilder.UniteCloseParams.UniteCloseParams ( )
inline

Constructs an empty (default-constructed) instance.

◆ UniteCloseParams() [2/4]

unsafe MR.MeshBuilder.UniteCloseParams.UniteCloseParams ( float closeDist,
bool uniteOnlyBd,
MR.VertBitSet? region,
bool duplicateNonManifold,
MR.VertMap? optionalVertOldToNew,
MR.Std.Vector_MRMeshBuilderVertDuplication? optionalDuplications )
inline

Constructs MR.MeshBuilder.UniteCloseParams elementwise.

◆ UniteCloseParams() [3/4]

unsafe MR.MeshBuilder.UniteCloseParams.UniteCloseParams ( MR.MeshBuilder.Const_UniteCloseParams _other)
inline

◆ UniteCloseParams() [4/4]

MR.MeshBuilder.UniteCloseParams.UniteCloseParams ( UniteCloseParams _other)
inline

Member Function Documentation

◆ assign()

unsafe MR.MeshBuilder.UniteCloseParams MR.MeshBuilder.UniteCloseParams.assign ( MR.MeshBuilder.Const_UniteCloseParams _other)
inline

Generated from method MR::MeshBuilder::UniteCloseParams::operator=.

Property Documentation

◆ closeDist

new unsafe ref float MR.MeshBuilder.UniteCloseParams.closeDist
get

vertices located closer to each other than this distance will be united

◆ duplicateNonManifold

new unsafe ref bool MR.MeshBuilder.UniteCloseParams.duplicateNonManifold
get

if true - try to duplicates non-manifold vertices instead of removing faces

◆ optionalDuplications

new unsafe MR.Std.? Vector_MRMeshBuilderVertDuplication MR.MeshBuilder.UniteCloseParams.optionalDuplications
getset

this can be used to map attributes to duplicated vertices

◆ optionalVertOldToNew

new unsafe MR.? VertMap MR.MeshBuilder.UniteCloseParams.optionalVertOldToNew
getset

is the mapping of vertices: before -> after

◆ region

new unsafe MR.? VertBitSet MR.MeshBuilder.UniteCloseParams.region
getset

if true, only vertices from this region can be affected

◆ uniteOnlyBd

new unsafe ref bool MR.MeshBuilder.UniteCloseParams.uniteOnlyBd
get

if true then only boundary vertices can be united, all internal vertices (even close ones) will remain


The documentation for this class was generated from the following file:
