MR.OutliersDetector Class Reference

A class for searching for outliers of points @detail The class caches the prepared search results, which allows to speed up the repeat search (while use same radius) Generated from class MR.OutliersDetector. This is the non-const half of the class. More...

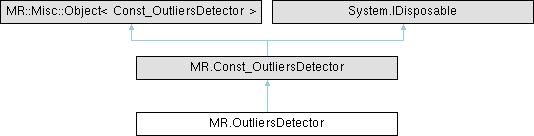

Inheritance diagram for MR.OutliersDetector:

Public Member Functions
unsafe	OutliersDetector ()
	Constructs an empty (default-constructed) instance.
unsafe	OutliersDetector (MR._ByValue_OutliersDetector _other)
	Generated from constructor MR.OutliersDetector.OutliersDetector.
	OutliersDetector (Const_OutliersDetector _other)
	Generated from constructor MR.OutliersDetector.OutliersDetector.
	OutliersDetector (OutliersDetector _other)
	Generated from constructor MR.OutliersDetector.OutliersDetector.
unsafe MR.OutliersDetector	assign (MR._ByValue_OutliersDetector _other)
	Generated from method MR.OutliersDetector.operator=.
unsafe void	prepare (MR.Const_PointCloud pc, float radius, MR.OutlierTypeMask mask, MR.Std._ByValue_Function_BoolFuncFromFloat? progress=null)
	Make a preliminary stage of outlier search. Caches the result.
unsafe void	setParams (MR.Const_OutlierParams params_)
	Set search parameters Generated from method MR.OutliersDetector.setParams.
unsafe MR.VertBitSet	find (MR.OutlierTypeMask mask, MR.Std._ByValue_Function_BoolFuncFromFloat? progress=null)
	Make an outlier search based on preliminary data.
unsafe MR.Std.Const_Vector_UnsignedChar	getWeaklyConnectedStat ()
	Get statistics on the number of neighbors for each point Generated from method MR.OutliersDetector.getWeaklyConnectedStat.

Detailed Description

A class for searching for outliers of points @detail The class caches the prepared search results, which allows to speed up the repeat search (while use same radius) Generated from class MR.OutliersDetector. This is the non-const half of the class.

Constructor & Destructor Documentation

OutliersDetector() [1/4]

unsafe MR.OutliersDetector.OutliersDetector ( )

inline

Constructs an empty (default-constructed) instance.

OutliersDetector() [2/4]

unsafe MR.OutliersDetector.OutliersDetector ( MR._ByValue_OutliersDetector _other )

inline

Generated from constructor MR.OutliersDetector.OutliersDetector.

OutliersDetector() [3/4]

MR.OutliersDetector.OutliersDetector ( Const_OutliersDetector _other )

inline

Generated from constructor MR.OutliersDetector.OutliersDetector.

OutliersDetector() [4/4]

MR.OutliersDetector.OutliersDetector ( OutliersDetector _other )

inline

Generated from constructor MR.OutliersDetector.OutliersDetector.

Member Function Documentation

assign()

unsafe MR.OutliersDetector MR.OutliersDetector.assign ( MR._ByValue_OutliersDetector _other )

inline

Generated from method MR.OutliersDetector.operator=.

find()

unsafe MR.VertBitSet MR.OutliersDetector.find ( MR.OutlierTypeMask mask, MR.Std._ByValue_Function_BoolFuncFromFloat? progress = null )

inline

Make an outlier search based on preliminary data.

Parameters

mask	mask of the types of outliers you are looking for Generated from method MR.OutliersDetector.find. Parameter progress defaults to {}.

getWeaklyConnectedStat()

unsafe MR.Std.Const_Vector_UnsignedChar MR.OutliersDetector.getWeaklyConnectedStat ( )

inline

Get statistics on the number of neighbors for each point Generated from method MR.OutliersDetector.getWeaklyConnectedStat.

prepare()

unsafe void MR.OutliersDetector.prepare ( MR.Const_PointCloud pc, float radius, MR.OutlierTypeMask mask, MR.Std._ByValue_Function_BoolFuncFromFloat? progress = null )

inline

Make a preliminary stage of outlier search. Caches the result.

Parameters

pc	point cloud
radius	radius of the search for neighboring points for analysis
mask	mask of the types of outliers that are looking for
progress	progress callback function

Returns

error text or nothing Generated from method MR.OutliersDetector.prepare. Parameter progress defaults to {}.

setParams()

unsafe void MR.OutliersDetector.setParams ( MR.Const_OutlierParams params_ )

inline

Set search parameters Generated from method MR.OutliersDetector.setParams.

---

The documentation for this class was generated from the following file:

• MROutlierPoints.cs
