MR.QuadraticForm3d Class Reference

quadratic form: f = x^T A x + c Generated from class MR.QuadraticForm3d. This is the non-const half of the class. More...

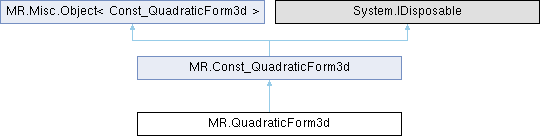

Inheritance diagram for MR.QuadraticForm3d:

Public Member Functions
unsafe	QuadraticForm3d ()
	Constructs an empty (default-constructed) instance.
unsafe	QuadraticForm3d (MR.Const_SymMatrix3d A, double c)
	Constructs MR.QuadraticForm3d elementwise.
unsafe	QuadraticForm3d (MR.Const_QuadraticForm3d _other)
	Generated from constructor MR.QuadraticForm3d.QuadraticForm3d.
	QuadraticForm3d (QuadraticForm3d _other)
	Generated from constructor MR.QuadraticForm3d.QuadraticForm3d.
unsafe MR.QuadraticForm3d	assign (MR.Const_QuadraticForm3d _other)
	Generated from method MR.QuadraticForm3d.operator=.
unsafe void	addDistToOrigin (double weight)
	adds to this squared distance to the origin point Generated from method MR.QuadraticForm3d.addDistToOrigin.
unsafe void	addDistToPlane (in MR.Vector3d planeUnitNormal)
	adds to this squared distance to plane passing via origin with given unit normal Generated from method MR.QuadraticForm3d.addDistToPlane.
unsafe void	addDistToPlane (in MR.Vector3d planeUnitNormal, double weight)
	Generated from method MR.QuadraticForm3d.addDistToPlane.
unsafe void	addDistToLine (in MR.Vector3d lineUnitDir)
	adds to this squared distance to line passing via origin with given unit direction Generated from method MR.QuadraticForm3d.addDistToLine.
unsafe void	addDistToLine (in MR.Vector3d lineUnitDir, double weight)
	Generated from method MR.QuadraticForm3d.addDistToLine.

Properties
new unsafe MR.SymMatrix3d	a [get, protected set]
new unsafe ref double	c [get]

Detailed Description

quadratic form: f = x^T A x + c Generated from class MR.QuadraticForm3d. This is the non-const half of the class.

Constructor & Destructor Documentation

QuadraticForm3d() [1/4]

unsafe MR.QuadraticForm3d.QuadraticForm3d ( )

inline

Constructs an empty (default-constructed) instance.

QuadraticForm3d() [2/4]

unsafe MR.QuadraticForm3d.QuadraticForm3d ( MR.Const_SymMatrix3d A, double c )

inline

Constructs MR.QuadraticForm3d elementwise.

QuadraticForm3d() [3/4]

unsafe MR.QuadraticForm3d.QuadraticForm3d ( MR.Const_QuadraticForm3d _other )

inline

Generated from constructor MR.QuadraticForm3d.QuadraticForm3d.

QuadraticForm3d() [4/4]

MR.QuadraticForm3d.QuadraticForm3d ( QuadraticForm3d _other )

inline

Generated from constructor MR.QuadraticForm3d.QuadraticForm3d.

Member Function Documentation

addDistToLine() [1/2]

unsafe void MR.QuadraticForm3d.addDistToLine ( in MR.Vector3d lineUnitDir )

inline

adds to this squared distance to line passing via origin with given unit direction Generated from method MR.QuadraticForm3d.addDistToLine.

addDistToLine() [2/2]

unsafe void MR.QuadraticForm3d.addDistToLine ( in MR.Vector3d lineUnitDir, double weight )

inline

Generated from method MR.QuadraticForm3d.addDistToLine.

addDistToOrigin()

unsafe void MR.QuadraticForm3d.addDistToOrigin ( double weight )

inline

adds to this squared distance to the origin point Generated from method MR.QuadraticForm3d.addDistToOrigin.

addDistToPlane() [1/2]

unsafe void MR.QuadraticForm3d.addDistToPlane ( in MR.Vector3d planeUnitNormal )

inline

adds to this squared distance to plane passing via origin with given unit normal Generated from method MR.QuadraticForm3d.addDistToPlane.

addDistToPlane() [2/2]

unsafe void MR.QuadraticForm3d.addDistToPlane ( in MR.Vector3d planeUnitNormal, double weight )

inline

Generated from method MR.QuadraticForm3d.addDistToPlane.

assign()

unsafe MR.QuadraticForm3d MR.QuadraticForm3d.assign ( MR.Const_QuadraticForm3d _other )

inline

Generated from method MR.QuadraticForm3d.operator=.

Property Documentation

a

new unsafe MR.SymMatrix3d MR.QuadraticForm3d.a

getprotected set

c

new unsafe ref double MR.QuadraticForm3d.c

get

---

The documentation for this class was generated from the following file:

• MRQuadraticForm.cs
