unsafe | Quaternionf () |
| | Constructs an empty (default-constructed) instance.
|
| |
|
unsafe | Quaternionf (MR.Const_Quaternionf _other) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Quaternionf (float a, float b, float c, float d) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Quaternionf (float real, in MR.Vector3f im) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Quaternionf (in MR.Matrix3f m) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Quaternionf (in MR.Vector3f from, in MR.Vector3f to) |
| | finds shorter arc rotation quaternion from one vector to another Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe MR.Quaternionf | assign (MR.Const_Quaternionf _other) |
| | Generated from method MR.Quaternionf.operator=.
|
| |
|
unsafe void | normalize () |
| | scales this quaternion to make its norm unit Generated from method MR.Quaternionf.normalize.
|
| |
|
unsafe MR.Quaternionf | mulAssign (float s) |
| | Generated from method MR.Quaternionf.operator*=.
|
| |
|
unsafe MR.Quaternionf | divAssign (float s) |
| | Generated from method MR.Quaternionf.operator/=.
|
| |
|
virtual void | Dispose () |
| |
|
unsafe | Const_Quaternionf () |
| | Constructs an empty (default-constructed) instance.
|
| |
|
unsafe | Const_Quaternionf (MR.Const_Quaternionf _other) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Const_Quaternionf (float a, float b, float c, float d) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Const_Quaternionf (float real, in MR.Vector3f im) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Const_Quaternionf (in MR.Matrix3f m) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe | Const_Quaternionf (in MR.Vector3f from, in MR.Vector3f to) |
| | finds shorter arc rotation quaternion from one vector to another Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
unsafe MR.Vector3f | im () |
| | returns imaginary part of the quaternion as a vector Generated from method MR.Quaternionf.im.
|
| |
|
unsafe float | angle () |
| | returns angle of rotation encoded in this quaternion Generated from method MR.Quaternionf.angle.
|
| |
|
unsafe MR.Vector3f | axis () |
| | returns axis of rotation encoded in this quaternion Generated from method MR.Quaternionf.axis.
|
| |
|
unsafe float | normSq () |
| | Generated from method MR.Quaternionf.normSq.
|
| |
|
unsafe float | norm () |
| | Generated from method MR.Quaternionf.norm.
|
| |
|
unsafe MR.Quaternionf | normalized () |
| | Generated from method MR.Quaternionf.normalized.
|
| |
|
unsafe MR.Quaternionf | conjugate () |
| | computes conjugate quaternion, which for unit quaternions encodes the opposite rotation Generated from method MR.Quaternionf.conjugate.
|
| |
|
unsafe MR.Quaternionf | inverse () |
| | computes reciprocal quaternion Generated from method MR.Quaternionf.inverse.
|
| |
|
unsafe MR.Vector3f | call (in MR.Vector3f p) |
| | for unit quaternion returns the rotation of point p, which is faster to compute for single point; for multiple points it is faster to create matrix representation and apply it to the points Generated from method MR.Quaternionf.operator().
|
| |
|
|
static unsafe implicit | operator Quaternionf (in MR.Matrix3f m) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
static unsafe implicit | operator Const_Quaternionf (in MR.Matrix3f m) |
| | Generated from constructor MR.Quaternionf.Quaternionf.
|
| |
|
static unsafe implicit | operator MR.Matrix3f (MR.Const_Quaternionf _this) |
| | converts this into 3x3 rotation matrix Generated from conversion operator MR.Quaternionf.operator MR.Matrix3f.
|
| |
|
static unsafe MR.Quaternionf | operator- (MR.Const_Quaternionf _this) |
| | returns quaternion representing the same rotation, using the opposite rotation direction and opposite angle Generated from method MR.Quaternionf.operator-.
|
| |
|
static unsafe MR.Quaternionf | lerp (MR.Const_Quaternionf q0, MR.Const_Quaternionf q1, float t) |
| | given t in [0,1], interpolates linearly two quaternions giving in general not-unit quaternion Generated from method MR.Quaternionf.lerp.
|
| |
|
static unsafe MR.Quaternionf | slerp (MR.Const_Quaternionf q0, MR.Const_Quaternionf q1, float t) |
| | given t in [0,1] and two unit quaternions, interpolates them spherically and produces another unit quaternion Generated from method MR.Quaternionf.slerp.
|
| |
|
static unsafe MR.Matrix3f | slerp (in MR.Matrix3f m0, in MR.Matrix3f m1, float t) |
| | given t in [0,1] and two rotation matrices, interpolates them spherically and produces another rotation matrix Generated from method MR.Quaternionf.slerp.
|
| |
|
static unsafe MR.AffineXf3f | slerp (in MR.AffineXf3f xf0, in MR.AffineXf3f xf1, float t, MR.Vector3f? p=null) |
| | given t in [0,1] and rigid transformations, interpolates them spherically and produces another rigid transformation; p is the only point that will have straight line movement during interpolation Generated from method MR.Quaternionf.slerp. Parameter p defaults to {}.
|
| |
|
|
new unsafe ref float | a [get] |
| | imaginary part: b*i + c*j + d*k
|
| |
|
new unsafe ref float | b [get] |
| | imaginary part: b*i + c*j + d*k
|
| |
|
new unsafe ref float | c [get] |
| | imaginary part: b*i + c*j + d*k
|
| |
|
new unsafe ref float | d [get] |
| |
|
unsafe float | a [get] |
| | imaginary part: b*i + c*j + d*k
|
| |
|
unsafe float | b [get] |
| | imaginary part: b*i + c*j + d*k
|
| |
|
unsafe float | c [get] |
| | imaginary part: b*i + c*j + d*k
|
| |
|
unsafe float | d [get] |
| |
|
virtual bool | _IsOwning [get] |
| | Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.
|
| |
Represents a quaternion following the notations from https://en.wikipedia.org/wiki/Quaternion Generated from class MR.Quaternionf. This is the non-const half of the class.

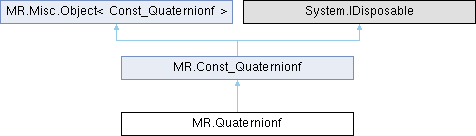

Inheritance diagram for MR.Quaternionf:
