MR.RigidScaleXf3d Class Reference

rigid (with scale) transformation that multiplies all distances on same scale: y = s*A*x + b, where s is a scalar, A is rotation matrix 3x3 stored as 3 angles, and b is shift vector Generated from class MR.RigidScaleXf3d. This is the non-const half of the class. More...

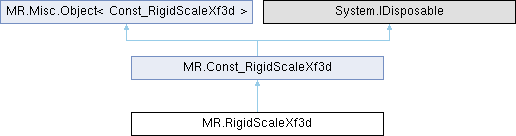

Inheritance diagram for MR.RigidScaleXf3d:

Public Member Functions
unsafe	RigidScaleXf3d ()
	Constructs an empty (default-constructed) instance.
unsafe	RigidScaleXf3d (MR.Const_RigidScaleXf3d _other)
	Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.
	RigidScaleXf3d (RigidScaleXf3d _other)
	Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.
unsafe	RigidScaleXf3d (in MR.Vector3d a, in MR.Vector3d b, double s)
	Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.
unsafe MR.RigidScaleXf3d	assign (MR.Const_RigidScaleXf3d _other)
	Generated from method MR::RigidScaleXf3d::operator=.
Public Member Functions inherited from MR.Const_RigidScaleXf3d
virtual void	Dispose ()
unsafe	Const_RigidScaleXf3d ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_RigidScaleXf3d (MR.Const_RigidScaleXf3d _other)
	Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.
	Const_RigidScaleXf3d (RigidScaleXf3d _other)
	Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.
unsafe	Const_RigidScaleXf3d (in MR.Vector3d a, in MR.Vector3d b, double s)
	Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.
unsafe MR.AffineXf3d	rigidScaleXf ()
	converts this into rigid (with scale) transformation, which non-linearly depends on angles Generated from method MR.RigidScaleXf3d.rigidScaleXf.
unsafe MR.AffineXf3d	linearXf ()
	converts this into not-rigid transformation but with matrix, which linearly depends on angles Generated from method MR.RigidScaleXf3d.linearXf.

Properties
new unsafe ref MR.Vector3d	a [get]
	rotation angles relative to x,y,z axes
new unsafe ref MR.Vector3d	b [get]
	shift
new unsafe ref double	s [get]
	scaling
Properties inherited from MR.Const_RigidScaleXf3d
unsafe ref readonly MR.Vector3d	a [get]
	rotation angles relative to x,y,z axes
unsafe ref readonly MR.Vector3d	b [get]
	shift
unsafe double	s [get]
	scaling

Additional Inherited Members
Protected Member Functions inherited from MR.Const_RigidScaleXf3d
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_RigidScaleXf3d
unsafe MR.Vector3d *	__ref_storage_a
unsafe MR.Vector3d *	__ref_storage_b
unsafe double *	__ref_storage_s

Detailed Description

rigid (with scale) transformation that multiplies all distances on same scale: y = s*A*x + b, where s is a scalar, A is rotation matrix 3x3 stored as 3 angles, and b is shift vector Generated from class MR.RigidScaleXf3d. This is the non-const half of the class.

Constructor & Destructor Documentation

RigidScaleXf3d() [1/4]

unsafe MR.RigidScaleXf3d.RigidScaleXf3d ( )

inline

Constructs an empty (default-constructed) instance.

RigidScaleXf3d() [2/4]

unsafe MR.RigidScaleXf3d.RigidScaleXf3d ( MR.Const_RigidScaleXf3d _other )

inline

Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.

RigidScaleXf3d() [3/4]

MR.RigidScaleXf3d.RigidScaleXf3d ( RigidScaleXf3d _other )

inline

Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.

RigidScaleXf3d() [4/4]

unsafe MR.RigidScaleXf3d.RigidScaleXf3d ( in MR.Vector3d a, in MR.Vector3d b, double s )

inline

Generated from constructor MR.RigidScaleXf3d.RigidScaleXf3d.

Member Function Documentation

assign()

unsafe MR.RigidScaleXf3d MR.RigidScaleXf3d.assign ( MR.Const_RigidScaleXf3d _other )

inline

Generated from method MR::RigidScaleXf3d::operator=.

Property Documentation

a

new unsafe ref MR.Vector3d MR.RigidScaleXf3d.a

get

rotation angles relative to x,y,z axes

b

new unsafe ref MR.Vector3d MR.RigidScaleXf3d.b

get

shift

s

new unsafe ref double MR.RigidScaleXf3d.s

get

scaling

---

The documentation for this class was generated from the following file:

• MRRigidScaleXf3.cs
