MR.TransformedMesh Class Reference

just stores a mesh and its transformation to some fixed reference frame Generated from class MR.TransformedMesh. This is the non-const half of the class. More...

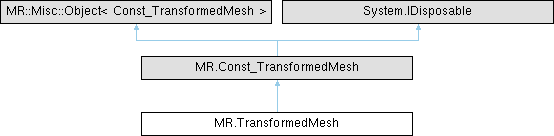

Inheritance diagram for MR.TransformedMesh:

Public Member Functions
unsafe	TransformedMesh ()
	Constructs an empty (default-constructed) instance.
unsafe	TransformedMesh (MR._ByValue_TransformedMesh _other)
	Generated from constructor MR.TransformedMesh.TransformedMesh.
	TransformedMesh (Const_TransformedMesh _other)
	Generated from constructor MR.TransformedMesh.TransformedMesh.
	TransformedMesh (TransformedMesh _other)
	Generated from constructor MR.TransformedMesh.TransformedMesh.
unsafe	TransformedMesh (MR._ByValue_Mesh mesh, MR.AffineXf3f? xf=null)
	Generated from constructor MR.TransformedMesh.TransformedMesh. Parameter xf defaults to {}.
unsafe MR.TransformedMesh	assign (MR._ByValue_TransformedMesh _other)
	Generated from method MR::TransformedMesh::operator=.
unsafe MR.TransformedMesh	addAssign (MR.Const_TransformedMesh b)
	union operation on two meshes Generated from function MR::operator+=.
unsafe MR.TransformedMesh	subAssign (MR.Const_TransformedMesh b)
	difference operation on two meshes Generated from function MR::operator-=.
unsafe MR.TransformedMesh	mulAssign (MR.Const_TransformedMesh b)
	intersection operation on two meshes Generated from function MR::operator*=.

Static Public Member Functions
static unsafe implicit	operator TransformedMesh (MR._ByValue_Mesh mesh)
	Generated from constructor MR.TransformedMesh.TransformedMesh. Parameter xf defaults to {}.

Properties
new unsafe MR.Mesh	mesh [get, protected set]
new unsafe ref MR.AffineXf3f	xf [get]

Detailed Description

just stores a mesh and its transformation to some fixed reference frame Generated from class MR.TransformedMesh. This is the non-const half of the class.

Constructor & Destructor Documentation

TransformedMesh() [1/5]

unsafe MR.TransformedMesh.TransformedMesh ( )

inline

Constructs an empty (default-constructed) instance.

TransformedMesh() [2/5]

unsafe MR.TransformedMesh.TransformedMesh ( MR._ByValue_TransformedMesh _other )

inline

Generated from constructor MR.TransformedMesh.TransformedMesh.

TransformedMesh() [3/5]

MR.TransformedMesh.TransformedMesh ( Const_TransformedMesh _other )

inline

Generated from constructor MR.TransformedMesh.TransformedMesh.

TransformedMesh() [4/5]

MR.TransformedMesh.TransformedMesh ( TransformedMesh _other )

inline

Generated from constructor MR.TransformedMesh.TransformedMesh.

TransformedMesh() [5/5]

unsafe MR.TransformedMesh.TransformedMesh ( MR._ByValue_Mesh mesh, MR.AffineXf3f? xf = null )

inline

Generated from constructor MR.TransformedMesh.TransformedMesh. Parameter xf defaults to {}.

Member Function Documentation

addAssign()

unsafe MR.TransformedMesh MR.TransformedMesh.addAssign ( MR.Const_TransformedMesh b )

inline

union operation on two meshes Generated from function MR::operator+=.

assign()

unsafe MR.TransformedMesh MR.TransformedMesh.assign ( MR._ByValue_TransformedMesh _other )

inline

Generated from method MR::TransformedMesh::operator=.

mulAssign()

unsafe MR.TransformedMesh MR.TransformedMesh.mulAssign ( MR.Const_TransformedMesh b )

inline

intersection operation on two meshes Generated from function MR::operator*=.

operator TransformedMesh()

unsafe implicit MR.TransformedMesh.operator TransformedMesh ( MR._ByValue_Mesh mesh )

inlinestatic

Generated from constructor MR.TransformedMesh.TransformedMesh. Parameter xf defaults to {}.

subAssign()

unsafe MR.TransformedMesh MR.TransformedMesh.subAssign ( MR.Const_TransformedMesh b )

inline

difference operation on two meshes Generated from function MR::operator-=.

Property Documentation

mesh

new unsafe MR.Mesh MR.TransformedMesh.mesh

getprotected set

xf

new unsafe ref MR.AffineXf3f MR.TransformedMesh.xf

get

---

The documentation for this class was generated from the following file:

• MRMeshBooleanFacade.cs
