Go to the source code of this file.
Typedefs | |
| typedef struct MR_VdbVolume | MR_VdbVolume |
| typedef struct MR_Vector3i | MR_Vector3i |
| typedef struct MR_VoxelBitSet | MR_VoxelBitSet |
| typedef struct MR_VoxelMetricParameters | MR_VoxelMetricParameters |
| typedef struct MR_expected_MR_Mesh_std_string | MR_expected_MR_Mesh_std_string |
| typedef struct MR_expected_MR_VoxelBitSet_std_string | MR_expected_MR_VoxelBitSet_std_string |
| typedef struct MR_expected_std_vector_MR_Mesh_std_string | MR_expected_std_vector_MR_Mesh_std_string |
| typedef struct MR_std_function_bool_from_float | MR_std_function_bool_from_float |
| typedef struct MR_std_vector_MR_Vector3i | MR_std_vector_MR_Vector3i |
| typedef struct MR_std_vector_std_pair_MR_Vector3f_MR_Vector3f | MR_std_vector_std_pair_MR_Vector3f_MR_Vector3f |
| typedef struct MR_VolumeSegmentationParameters | MR_VolumeSegmentationParameters |
| Parameters for volume segmentation. | |
| typedef struct MR_VolumeSegmenter | MR_VolumeSegmenter |
| Class for voxels segmentation. | |
| typedef enum MR_VolumeSegmenter_SeedType | MR_VolumeSegmenter_SeedType |
Enumerations | |
| enum | MR_VolumeSegmenter_SeedType { MR_VolumeSegmenter_SeedType_Inside = 0 , MR_VolumeSegmenter_SeedType_Outside = 1 , MR_VolumeSegmenter_SeedType_Count = 2 } |
| typedef struct MR_expected_MR_Mesh_std_string MR_expected_MR_Mesh_std_string |
| typedef struct MR_std_function_bool_from_float MR_std_function_bool_from_float |
| typedef struct MR_std_vector_MR_Vector3i MR_std_vector_MR_Vector3i |
| typedef struct MR_std_vector_std_pair_MR_Vector3f_MR_Vector3f MR_std_vector_std_pair_MR_Vector3f_MR_Vector3f |
| typedef struct MR_VdbVolume MR_VdbVolume |
| typedef struct MR_Vector3i MR_Vector3i |
| typedef struct MR_VolumeSegmentationParameters MR_VolumeSegmentationParameters |
Parameters for volume segmentation.
MR::VolumeSegmentationParameters. | typedef struct MR_VolumeSegmenter MR_VolumeSegmenter |
Class for voxels segmentation.

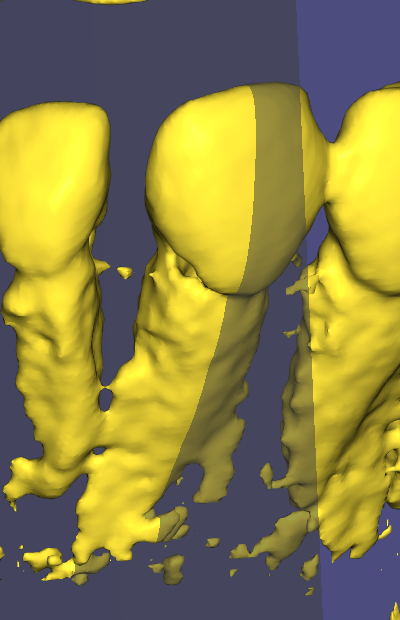

Before (a) |

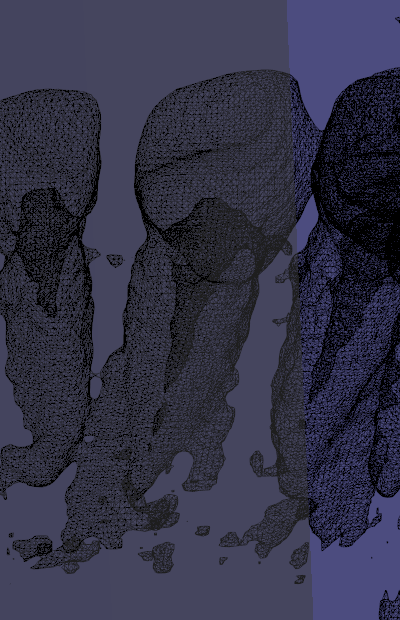

Before (b) |

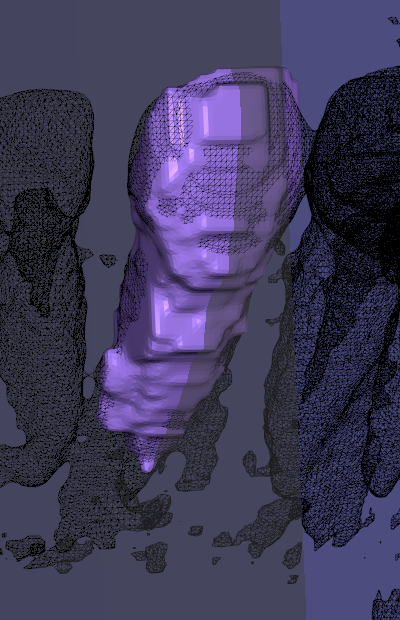

After |
Generated from class MR::VolumeSegmenter.
| typedef enum MR_VolumeSegmenter_SeedType MR_VolumeSegmenter_SeedType |
| typedef struct MR_VoxelBitSet MR_VoxelBitSet |
| typedef struct MR_VoxelMetricParameters MR_VoxelMetricParameters |
| MRC_API MR_expected_MR_Mesh_std_string * MR_meshFromVoxelsMask | ( | const MR_VdbVolume * | volume, |
| const MR_VoxelBitSet * | mask ) |
Creates mesh from voxels mask.
| mask | in space of whole volume density inside mask is expected to be higher then outside Generated from function MR::meshFromVoxelsMask. Parameter volume can not be null. It is a single object. Parameter mask can not be null. It is a single object. Never returns null. Returns an instance allocated on the heap! Must call MR_expected_MR_Mesh_std_string_Destroy() to free it when you're done using it. |
| MRC_API MR_expected_MR_Mesh_std_string * MR_segmentVolume | ( | const MR_VdbVolume * | volume, |
| const MR_std_vector_std_pair_MR_Vector3f_MR_Vector3f * | pairs, | ||
| const MR_VolumeSegmentationParameters * | params ) |
Simple segment volume.
MR::segmentVolume. Parameter volume can not be null. It is a single object. Parameter pairs can not be null. It is a single object. Parameter params is a single object. Parameter params has a default argument: MR::VolumeSegmentationParameters(), pass a null pointer to use it. Never returns null. Returns an instance allocated on the heap! Must call MR_expected_MR_Mesh_std_string_Destroy() to free it when you're done using it. | MRC_API MR_expected_std_vector_MR_Mesh_std_string * MR_segmentVoxelMaskToInstances | ( | const MR_VdbVolume * | mask, |
| const MR_uint64_t * | minSize, | ||
| MR_PassBy | cb_pass_by, | ||
| MR_std_function_bool_from_float * | cb ) |
Given voxel mask, separate it into components using mincut algorithm
| minSize | Minimum size of a segment (in voxels) Generated from function MR::segmentVoxelMaskToInstances. Parameter mask can not be null. It is a single object. Parameter minSize has a default argument: 100, pass a null pointer to use it. Parameter cb has a default argument: {}, pass MR_PassBy_DefaultArgument and a null pointer to use it. Never returns null. Returns an instance allocated on the heap! Must call MR_expected_std_vector_MR_Mesh_std_string_Destroy() to free it when you're done using it. |
| MRC_API MR_VolumeSegmentationParameters * MR_VolumeSegmentationParameters_AssignFromAnother | ( | MR_VolumeSegmentationParameters * | _this, |
| const MR_VolumeSegmentationParameters * | _other ) |
Generated from a method of class MR::VolumeSegmentationParameters named operator=. Parameter _this can not be null. It is a single object. Parameter _other can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_VolumeSegmentationParameters * MR_VolumeSegmentationParameters_ConstructFrom | ( | float | buildPathExponentModifier, |
| float | segmentationExponentModifier, | ||
| int | voxelsExpansion ) |
Constructs MR::VolumeSegmentationParameters elementwise. Never returns null. Returns an instance allocated on the heap! Must call MR_VolumeSegmentationParameters_Destroy() to free it when you're done using it.
| MRC_API MR_VolumeSegmentationParameters * MR_VolumeSegmentationParameters_ConstructFromAnother | ( | const MR_VolumeSegmentationParameters * | _other | ) |
Generated from a constructor of class MR::VolumeSegmentationParameters. Parameter _other can not be null. It is a single object. Never returns null. Returns an instance allocated on the heap! Must call MR_VolumeSegmentationParameters_Destroy() to free it when you're done using it.
| MRC_API MR_VolumeSegmentationParameters * MR_VolumeSegmentationParameters_DefaultConstruct | ( | void | ) |
Constructs an empty (default-constructed) instance. Never returns null. Returns an instance allocated on the heap! Must call MR_VolumeSegmentationParameters_Destroy() to free it when you're done using it.
| MRC_API MR_VolumeSegmentationParameters * MR_VolumeSegmentationParameters_DefaultConstructArray | ( | size_t | num_elems | ) |
Constructs an array of empty (default-constructed) instances, of the specified size. Will never return null. The array must be destroyed using MR_VolumeSegmentationParameters_DestroyArray(). Use MR_VolumeSegmentationParameters_OffsetMutablePtr() and MR_VolumeSegmentationParameters_OffsetPtr() to access the array elements.
| MRC_API void MR_VolumeSegmentationParameters_Destroy | ( | const MR_VolumeSegmentationParameters * | _this | ) |
Destroys a heap-allocated instance of MR_VolumeSegmentationParameters. Does nothing if the pointer is null.
| MRC_API void MR_VolumeSegmentationParameters_DestroyArray | ( | const MR_VolumeSegmentationParameters * | _this | ) |
Destroys a heap-allocated array of MR_VolumeSegmentationParameters. Does nothing if the pointer is null.
| MRC_API const float * MR_VolumeSegmentationParameters_Get_buildPathExponentModifier | ( | const MR_VolumeSegmentationParameters * | _this | ) |
Exponent modifier of path building metric (paths are built between voxel pairs and then marked as tooth seed) Returns a pointer to a member variable of class MR::VolumeSegmentationParameters named buildPathExponentModifier. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_VolumeSegmentationParameters_Get_segmentationExponentModifier | ( | const MR_VolumeSegmentationParameters * | _this | ) |
Exponent modifier of graph cutting metric (volume presents graph with seeds, this graph are min cut) Returns a pointer to a member variable of class MR::VolumeSegmentationParameters named segmentationExponentModifier. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const int * MR_VolumeSegmentationParameters_Get_voxelsExpansion | ( | const MR_VolumeSegmentationParameters * | _this | ) |
Segment box expansion (only part of volume are segmented, this parameter shows how much to expand this part) Returns a pointer to a member variable of class MR::VolumeSegmentationParameters named voxelsExpansion. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_VolumeSegmentationParameters_GetMutable_buildPathExponentModifier | ( | MR_VolumeSegmentationParameters * | _this | ) |
Exponent modifier of path building metric (paths are built between voxel pairs and then marked as tooth seed) Returns a mutable pointer to a member variable of class MR::VolumeSegmentationParameters named buildPathExponentModifier. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_VolumeSegmentationParameters_GetMutable_segmentationExponentModifier | ( | MR_VolumeSegmentationParameters * | _this | ) |
Exponent modifier of graph cutting metric (volume presents graph with seeds, this graph are min cut) Returns a mutable pointer to a member variable of class MR::VolumeSegmentationParameters named segmentationExponentModifier. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int * MR_VolumeSegmentationParameters_GetMutable_voxelsExpansion | ( | MR_VolumeSegmentationParameters * | _this | ) |
Segment box expansion (only part of volume are segmented, this parameter shows how much to expand this part) Returns a mutable pointer to a member variable of class MR::VolumeSegmentationParameters named voxelsExpansion. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_VolumeSegmentationParameters * MR_VolumeSegmentationParameters_OffsetMutablePtr | ( | MR_VolumeSegmentationParameters * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API const MR_VolumeSegmentationParameters * MR_VolumeSegmentationParameters_OffsetPtr | ( | const MR_VolumeSegmentationParameters * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API void MR_VolumeSegmentationParameters_Set_buildPathExponentModifier | ( | MR_VolumeSegmentationParameters * | _this, |
| float | value ) |
Exponent modifier of path building metric (paths are built between voxel pairs and then marked as tooth seed) Modifies a member variable of class MR::VolumeSegmentationParameters named buildPathExponentModifier. Parameter _this can not be null. It is a single object.
| MRC_API void MR_VolumeSegmentationParameters_Set_segmentationExponentModifier | ( | MR_VolumeSegmentationParameters * | _this, |
| float | value ) |
Exponent modifier of graph cutting metric (volume presents graph with seeds, this graph are min cut) Modifies a member variable of class MR::VolumeSegmentationParameters named segmentationExponentModifier. Parameter _this can not be null. It is a single object.
| MRC_API void MR_VolumeSegmentationParameters_Set_voxelsExpansion | ( | MR_VolumeSegmentationParameters * | _this, |
| int | value ) |
Segment box expansion (only part of volume are segmented, this parameter shows how much to expand this part) Modifies a member variable of class MR::VolumeSegmentationParameters named voxelsExpansion. Parameter _this can not be null. It is a single object.
| MRC_API void MR_VolumeSegmenter_addPathSeeds | ( | MR_VolumeSegmenter * | _this, |
| const MR_VoxelMetricParameters * | metricParameters, | ||
| MR_VolumeSegmenter_SeedType | seedType, | ||
| const float * | exponentModifier ) |
Builds path with given parameters, marks result as seedType seeds Generated from a method of class MR::VolumeSegmenter named addPathSeeds. Parameter _this can not be null. It is a single object. Parameter metricParameters can not be null. It is a single object. Parameter exponentModifier has a default argument: -1.F, pass a null pointer to use it.
| MRC_API void MR_VolumeSegmenter_addSeeds | ( | MR_VolumeSegmenter * | _this, |
| const MR_std_vector_MR_Vector3i * | seeds, | ||
| MR_VolumeSegmenter_SeedType | seedType ) |
Adds new seeds to stored Generated from a method of class MR::VolumeSegmenter named addSeeds. Parameter _this can not be null. It is a single object. Parameter seeds can not be null. It is a single object.
| MRC_API MR_VolumeSegmenter * MR_VolumeSegmenter_Construct | ( | const MR_VdbVolume * | volume | ) |
Generated from a constructor of class MR::VolumeSegmenter. Parameter volume can not be null. It is a single object. Never returns null. Returns an instance allocated on the heap! Must call MR_VolumeSegmenter_Destroy() to free it when you're done using it.
| MRC_API MR_VolumeSegmenter * MR_VolumeSegmenter_ConstructFromAnother | ( | MR_PassBy | _other_pass_by, |
| MR_VolumeSegmenter * | _other ) |
Generated from a constructor of class MR::VolumeSegmenter. Never returns null. Returns an instance allocated on the heap! Must call MR_VolumeSegmenter_Destroy() to free it when you're done using it.
| MRC_API MR_expected_MR_Mesh_std_string * MR_VolumeSegmenter_createMeshFromSegmentation | ( | const MR_VolumeSegmenter * | _this, |
| const MR_VoxelBitSet * | segmentation ) |
Returns mesh of given segment Generated from a method of class MR::VolumeSegmenter named createMeshFromSegmentation. Parameter _this can not be null. It is a single object. Parameter segmentation can not be null. It is a single object. Never returns null. Returns an instance allocated on the heap! Must call MR_expected_MR_Mesh_std_string_Destroy() to free it when you're done using it.
| MRC_API void MR_VolumeSegmenter_Destroy | ( | const MR_VolumeSegmenter * | _this | ) |
Destroys a heap-allocated instance of MR_VolumeSegmenter. Does nothing if the pointer is null.
| MRC_API void MR_VolumeSegmenter_DestroyArray | ( | const MR_VolumeSegmenter * | _this | ) |
Destroys a heap-allocated array of MR_VolumeSegmenter. Does nothing if the pointer is null.
| MRC_API const MR_Vector3i * MR_VolumeSegmenter_getMinVoxel | ( | const MR_VolumeSegmenter * | _this | ) |
Min voxel of volume part box in whole volume space, filled after segmentation Generated from a method of class MR::VolumeSegmenter named getMinVoxel. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_vector_MR_Vector3i * MR_VolumeSegmenter_getSeeds | ( | const MR_VolumeSegmenter * | _this, |
| MR_VolumeSegmenter_SeedType | seedType ) |
Return currently stored seeds Generated from a method of class MR::VolumeSegmenter named getSeeds. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_Vector3i * MR_VolumeSegmenter_getVolumePartDimensions | ( | const MR_VolumeSegmenter * | _this | ) |
Dimensions of volume part, filled after segmentation Generated from a method of class MR::VolumeSegmenter named getVolumePartDimensions. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_VolumeSegmenter * MR_VolumeSegmenter_OffsetMutablePtr | ( | MR_VolumeSegmenter * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API const MR_VolumeSegmenter * MR_VolumeSegmenter_OffsetPtr | ( | const MR_VolumeSegmenter * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API MR_expected_MR_VoxelBitSet_std_string * MR_VolumeSegmenter_segmentVolume | ( | MR_VolumeSegmenter * | _this, |
| const float * | segmentationExponentModifier, | ||
| const int * | voxelsExpansion, | ||
| MR_PassBy | cb_pass_by, | ||
| MR_std_function_bool_from_float * | cb ) |
Segments volume, return inside part segmentation (VoxelBitSet in space of VolumePart) Generated from a method of class MR::VolumeSegmenter named segmentVolume. Parameter _this can not be null. It is a single object. Parameter segmentationExponentModifier has a default argument: 3000.F, pass a null pointer to use it. Parameter voxelsExpansion has a default argument: 25, pass a null pointer to use it. Parameter cb has a default argument: {}, pass MR_PassBy_DefaultArgument and a null pointer to use it. Never returns null. Returns an instance allocated on the heap! Must call MR_expected_MR_VoxelBitSet_std_string_Destroy() to free it when you're done using it.
| MRC_API void MR_VolumeSegmenter_setSeeds | ( | MR_VolumeSegmenter * | _this, |
| const MR_std_vector_MR_Vector3i * | seeds, | ||
| MR_VolumeSegmenter_SeedType | seedType ) |
Reset seeds with given ones Generated from a method of class MR::VolumeSegmenter named setSeeds. Parameter _this can not be null. It is a single object. Parameter seeds can not be null. It is a single object.
