MR.ConstBox_Matrix4f Class Reference

arbitrary 4x4 matrix Generated from class MR.Matrix4f. This is the const reference to the struct. More...

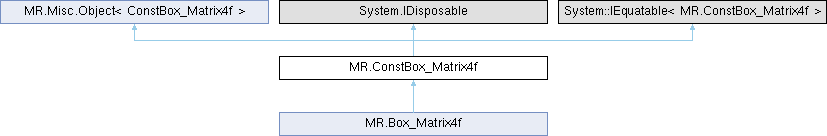

Inheritance diagram for MR.ConstBox_Matrix4f:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	ConstBox_Matrix4f (Matrix4f other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	ConstBox_Matrix4f (ConstBox_Matrix4f _other)
	Generated copy constructor.
unsafe	ConstBox_Matrix4f ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Matrix4f (in MR.Vector4f x, in MR.Vector4f y, in MR.Vector4f z, in MR.Vector4f w)
	initializes matrix from 4 row-vectors Generated from constructor MR.Matrix4f.Matrix4f.
unsafe	ConstBox_Matrix4f (in MR.Matrix3f r, in MR.Vector3f t)
	construct from rotation matrix and translation vector Generated from constructor MR.Matrix4f.Matrix4f.
unsafe	ConstBox_Matrix4f (in MR.AffineXf3f xf)
	Generated from constructor MR.Matrix4f.Matrix4f.
unsafe float	call (int row, int col)
	element access Generated from method MR.Matrix4f.operator().
unsafe MR.Vector4f	col (int i)
	column access Generated from method MR.Matrix4f.col.
unsafe float	trace ()
	computes trace of the matrix Generated from method MR.Matrix4f.trace.
unsafe float	normSq ()
	compute sum of squared matrix elements Generated from method MR.Matrix4f.normSq.
unsafe float	norm ()
	Generated from method MR.Matrix4f.norm.
unsafe MR.Matrix3f	submatrix3 (int i, int j)
	computes submatrix of the matrix with excluded i-th row and j-th column Generated from method MR.Matrix4f.submatrix3.
unsafe float	det ()
	computes determinant of the matrix Generated from method MR.Matrix4f.det.
unsafe MR.Matrix4f	inverse ()
	computes inverse matrix Generated from method MR.Matrix4f.inverse.
unsafe MR.Matrix4f	transposed ()
	computes transposed matrix Generated from method MR.Matrix4f.transposed.
unsafe MR.Matrix3f	getRotation ()
	Generated from method MR.Matrix4f.getRotation.
unsafe MR.Vector3f	getTranslation ()
	Generated from method MR.Matrix4f.getTranslation.
unsafe? float	data ()
	Generated from method MR.Matrix4f.data.
unsafe MR.Vector3f	call (in MR.Vector3f b)
	converts 3d-vector b in 4d-vector (b,1), multiplies matrix on it, and assuming the result is in homogeneous coordinates returns it as 3d-vector Generated from method MR.Matrix4f.operator().
bool	Equals (MR.ConstBox_Matrix4f? b)
override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Matrix4f (Matrix4f other)
	Convert from a struct by copying it. Note that only ConstBox_Matrix4f has this conversion, Box_Matrix4f intentionally doesn't.
static unsafe implicit	operator ConstBox_Matrix4f (in MR.AffineXf3f xf)
	Generated from constructor MR.Matrix4f.Matrix4f.
static unsafe implicit	operator MR.AffineXf3f (MR.ConstBox_Matrix4f _this)
	Generated from conversion operator MR.Matrix4f.operator MR.AffineXf3f.
static MR.Matrix4f	zero ()
	Generated from method MR.Matrix4f.zero.
static MR.Matrix4f	identity ()
	Generated from method MR.Matrix4f.identity.
static MR.Matrix4f	scale (float s)
	returns a matrix that scales uniformly Generated from method MR.Matrix4f.scale.
static unsafe bool	operator== (MR.ConstBox_Matrix4f a, MR.ConstBox_Matrix4f b)
	Generated from function MR.operator==.
static unsafe bool	operator!= (MR.ConstBox_Matrix4f a, MR.ConstBox_Matrix4f b)
static unsafe MR.Matrix4f	operator+ (MR.ConstBox_Matrix4f a, in MR.Matrix4f b)
	Generated from function MR.operator+.
static unsafe MR.Matrix4f	operator- (MR.ConstBox_Matrix4f a, in MR.Matrix4f b)
	Generated from function MR.operator-.
static unsafe MR.Matrix4f	operator* (float a, MR.ConstBox_Matrix4f b)
	Generated from function MR.operator*.
static unsafe MR.Matrix4f	operator* (MR.ConstBox_Matrix4f b, float a)
	Generated from function MR.operator*.
static unsafe MR.Matrix4f	operator/ (ConstBox_Matrix4f b, float a)
	Generated from function MR.operator/.
static unsafe MR.Vector4f	operator* (MR.ConstBox_Matrix4f a, in MR.Vector4f b)
	x = a * b Generated from function MR.operator*.
static unsafe MR.Matrix4f	operator* (MR.ConstBox_Matrix4f a, in MR.Matrix4f b)
	product of two matrices Generated from function MR.operator*.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Properties
ref readonly MR.Vector4f	x [get]
	rows, identity matrix by default
ref readonly MR.Vector4f	y [get]
ref readonly MR.Vector4f	z [get]
ref readonly MR.Vector4f	w [get]
unsafe ref readonly MR.Vector4f	this[int row] [get]
	row access Generated from method MR.Matrix4f.operator[].

Detailed Description

arbitrary 4x4 matrix Generated from class MR.Matrix4f. This is the const reference to the struct.

Constructor & Destructor Documentation

ConstBox_Matrix4f() [1/6]

unsafe MR.ConstBox_Matrix4f.ConstBox_Matrix4f ( Matrix4f other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

ConstBox_Matrix4f() [2/6]

unsafe MR.ConstBox_Matrix4f.ConstBox_Matrix4f ( ConstBox_Matrix4f _other )

inline

Generated copy constructor.

ConstBox_Matrix4f() [3/6]

unsafe MR.ConstBox_Matrix4f.ConstBox_Matrix4f ( )

inline

Constructs an empty (default-constructed) instance.

ConstBox_Matrix4f() [4/6]

unsafe MR.ConstBox_Matrix4f.ConstBox_Matrix4f ( in MR.Vector4f x, in MR.Vector4f y, in MR.Vector4f z, in MR.Vector4f w )

inline

initializes matrix from 4 row-vectors Generated from constructor MR.Matrix4f.Matrix4f.

ConstBox_Matrix4f() [5/6]

unsafe MR.ConstBox_Matrix4f.ConstBox_Matrix4f ( in MR.Matrix3f r, in MR.Vector3f t )

inline

construct from rotation matrix and translation vector Generated from constructor MR.Matrix4f.Matrix4f.

ConstBox_Matrix4f() [6/6]

unsafe MR.ConstBox_Matrix4f.ConstBox_Matrix4f ( in MR.AffineXf3f xf )

inline

Generated from constructor MR.Matrix4f.Matrix4f.

Member Function Documentation

call() [1/2]

unsafe MR.Vector3f MR.ConstBox_Matrix4f.call ( in MR.Vector3f b )

inline

converts 3d-vector b in 4d-vector (b,1), multiplies matrix on it, and assuming the result is in homogeneous coordinates returns it as 3d-vector Generated from method MR.Matrix4f.operator().

call() [2/2]

unsafe float MR.ConstBox_Matrix4f.call ( int row, int col )

inline

element access Generated from method MR.Matrix4f.operator().

col()

unsafe MR.Vector4f MR.ConstBox_Matrix4f.col ( int i )

inline

column access Generated from method MR.Matrix4f.col.

data()

unsafe? float MR.ConstBox_Matrix4f.data ( )

inline

Generated from method MR.Matrix4f.data.

det()

unsafe float MR.ConstBox_Matrix4f.det ( )

inline

computes determinant of the matrix Generated from method MR.Matrix4f.det.

Dispose() [1/2]

virtual void MR.ConstBox_Matrix4f.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.ConstBox_Matrix4f.Dispose ( bool disposing )

inlineprotectedvirtual

Equals() [1/2]

bool MR.ConstBox_Matrix4f.Equals ( MR.ConstBox_Matrix4f? b )

inline

Equals() [2/2]

override bool MR.ConstBox_Matrix4f.Equals ( object? other )

inline

getRotation()

unsafe MR.Matrix3f MR.ConstBox_Matrix4f.getRotation ( )

inline

Generated from method MR.Matrix4f.getRotation.

getTranslation()

unsafe MR.Vector3f MR.ConstBox_Matrix4f.getTranslation ( )

inline

Generated from method MR.Matrix4f.getTranslation.

identity()

static MR.Matrix4f MR.ConstBox_Matrix4f.identity ( )

inlinestatic

Generated from method MR.Matrix4f.identity.

inverse()

unsafe MR.Matrix4f MR.ConstBox_Matrix4f.inverse ( )

inline

computes inverse matrix Generated from method MR.Matrix4f.inverse.

norm()

unsafe float MR.ConstBox_Matrix4f.norm ( )

inline

Generated from method MR.Matrix4f.norm.

normSq()

unsafe float MR.ConstBox_Matrix4f.normSq ( )

inline

compute sum of squared matrix elements Generated from method MR.Matrix4f.normSq.

operator ConstBox_Matrix4f() [1/2]

static unsafe implicit MR.ConstBox_Matrix4f.operator ConstBox_Matrix4f ( in MR.AffineXf3f xf )

inlinestatic

Generated from constructor MR.Matrix4f.Matrix4f.

operator ConstBox_Matrix4f() [2/2]

static implicit MR.ConstBox_Matrix4f.operator ConstBox_Matrix4f ( Matrix4f other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Matrix4f has this conversion, Box_Matrix4f intentionally doesn't.

operator MR.AffineXf3f()

static unsafe implicit MR.ConstBox_Matrix4f.operator MR.AffineXf3f ( MR.ConstBox_Matrix4f _this )

inlinestatic

Generated from conversion operator MR.Matrix4f.operator MR.AffineXf3f.

operator!=()

static unsafe bool MR.ConstBox_Matrix4f.operator!= ( MR.ConstBox_Matrix4f a, MR.ConstBox_Matrix4f b )

inlinestatic

operator*() [1/4]

static unsafe MR.Matrix4f MR.ConstBox_Matrix4f.operator* ( float a, MR.ConstBox_Matrix4f b )

inlinestatic

Generated from function MR.operator*.

operator*() [2/4]

static unsafe MR.Matrix4f MR.ConstBox_Matrix4f.operator* ( MR.ConstBox_Matrix4f a, in MR.Matrix4f b )

inlinestatic

product of two matrices Generated from function MR.operator*.

operator*() [3/4]

static unsafe MR.Vector4f MR.ConstBox_Matrix4f.operator* ( MR.ConstBox_Matrix4f a, in MR.Vector4f b )

inlinestatic

x = a * b Generated from function MR.operator*.

operator*() [4/4]

static unsafe MR.Matrix4f MR.ConstBox_Matrix4f.operator* ( MR.ConstBox_Matrix4f b, float a )

inlinestatic

Generated from function MR.operator*.

operator+()

static unsafe MR.Matrix4f MR.ConstBox_Matrix4f.operator+ ( MR.ConstBox_Matrix4f a, in MR.Matrix4f b )

inlinestatic

Generated from function MR.operator+.

operator-()

static unsafe MR.Matrix4f MR.ConstBox_Matrix4f.operator- ( MR.ConstBox_Matrix4f a, in MR.Matrix4f b )

inlinestatic

Generated from function MR.operator-.

operator/()

static unsafe MR.Matrix4f MR.ConstBox_Matrix4f.operator/ ( ConstBox_Matrix4f b, float a )

inlinestatic

Generated from function MR.operator/.

operator==()

static unsafe bool MR.ConstBox_Matrix4f.operator== ( MR.ConstBox_Matrix4f a, MR.ConstBox_Matrix4f b )

inlinestatic

Generated from function MR.operator==.

scale()

static MR.Matrix4f MR.ConstBox_Matrix4f.scale ( float s )

inlinestatic

returns a matrix that scales uniformly Generated from method MR.Matrix4f.scale.

submatrix3()

unsafe MR.Matrix3f MR.ConstBox_Matrix4f.submatrix3 ( int i, int j )

inline

computes submatrix of the matrix with excluded i-th row and j-th column Generated from method MR.Matrix4f.submatrix3.

trace()

unsafe float MR.ConstBox_Matrix4f.trace ( )

inline

computes trace of the matrix Generated from method MR.Matrix4f.trace.

transposed()

unsafe MR.Matrix4f MR.ConstBox_Matrix4f.transposed ( )

inline

computes transposed matrix Generated from method MR.Matrix4f.transposed.

zero()

static MR.Matrix4f MR.ConstBox_Matrix4f.zero ( )

inlinestatic

Generated from method MR.Matrix4f.zero.

Property Documentation

this[int row]

unsafe ref readonly MR.Vector4f MR.ConstBox_Matrix4f.this[int row]

get

row access Generated from method MR.Matrix4f.operator[].

w

ref readonly MR.Vector4f MR.ConstBox_Matrix4f.w

get

x

ref readonly MR.Vector4f MR.ConstBox_Matrix4f.x

get

rows, identity matrix by default

y

ref readonly MR.Vector4f MR.ConstBox_Matrix4f.y

get

z

ref readonly MR.Vector4f MR.ConstBox_Matrix4f.z

get

---

The documentation for this class was generated from the following file:

• MRMatrix4.cs
