MR.Const_McOffsetMeshOutputs Class Reference

optional outputs of mcOffsetMesh(...) describing the volume, from which the mesh was extracted Generated from class MR.McOffsetMeshOutputs. This is the const half of the class. More...

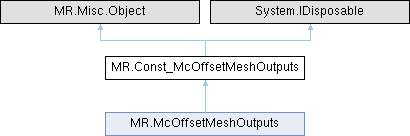

Inheritance diagram for MR.Const_McOffsetMeshOutputs:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_McOffsetMeshOutputs ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_McOffsetMeshOutputs (MR.Vector_MRVoxelId_MRFaceId? voxelPerFaceMap, MR.Misc.InOut< MR.Vector3i >? dims, MR.Misc.InOut< MR.AffineXf3f >? gridToMeshXf)
	Constructs MR.McOffsetMeshOutputs elementwise.
unsafe	Const_McOffsetMeshOutputs (MR.Const_McOffsetMeshOutputs _other)
	Generated from constructor MR.McOffsetMeshOutputs.McOffsetMeshOutputs.
	Const_McOffsetMeshOutputs (McOffsetMeshOutputs _other)
	Generated from constructor MR.McOffsetMeshOutputs.McOffsetMeshOutputs.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Protected Attributes
unsafe MR.Vector_MRVoxelId_MRFaceId._Underlying **	__ptr_storage_voxelPerFaceMap
unsafe MR.Box_Vector3i._Underlying **	__ptr_storage_dims
unsafe MR.Box_AffineXf3f._Underlying **	__ptr_storage_gridToMeshXf

Properties
unsafe MR.? Vector_MRVoxelId_MRFaceId	voxelPerFaceMap [get]
	optional output map FaceId->VoxelId
unsafe MR.? Box_Vector3i	dims [get]
	optional output dimensions of the volume
unsafe MR.? Box_AffineXf3f	gridToMeshXf [get]
	optional output transform from integer grid locations to mesh reference frame: the node with integer coordinates (i,j,k) is located in (*gridToMeshXf)( Vector3f( i, j, k ) ); every vertex of output mesh is located on a grid edge

Detailed Description

optional outputs of mcOffsetMesh(...) describing the volume, from which the mesh was extracted Generated from class MR.McOffsetMeshOutputs. This is the const half of the class.

Constructor & Destructor Documentation

Const_McOffsetMeshOutputs() [1/4]

unsafe MR.Const_McOffsetMeshOutputs.Const_McOffsetMeshOutputs ( )

inline

Constructs an empty (default-constructed) instance.

Const_McOffsetMeshOutputs() [2/4]

unsafe MR.Const_McOffsetMeshOutputs.Const_McOffsetMeshOutputs ( MR.Vector_MRVoxelId_MRFaceId? voxelPerFaceMap, MR.Misc.InOut< MR.Vector3i >? dims, MR.Misc.InOut< MR.AffineXf3f >? gridToMeshXf )

inline

Constructs MR.McOffsetMeshOutputs elementwise.

Const_McOffsetMeshOutputs() [3/4]

unsafe MR.Const_McOffsetMeshOutputs.Const_McOffsetMeshOutputs ( MR.Const_McOffsetMeshOutputs _other )

inline

Generated from constructor MR.McOffsetMeshOutputs.McOffsetMeshOutputs.

Const_McOffsetMeshOutputs() [4/4]

MR.Const_McOffsetMeshOutputs.Const_McOffsetMeshOutputs ( McOffsetMeshOutputs _other )

inline

Generated from constructor MR.McOffsetMeshOutputs.McOffsetMeshOutputs.

Member Function Documentation

Dispose() [1/2]

virtual void MR.Const_McOffsetMeshOutputs.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_McOffsetMeshOutputs.Dispose ( bool disposing )

inlineprotectedvirtual

Member Data Documentation

__ptr_storage_dims

unsafe MR.Box_Vector3i._Underlying** MR.Const_McOffsetMeshOutputs.__ptr_storage_dims

protected

__ptr_storage_gridToMeshXf

unsafe MR.Box_AffineXf3f._Underlying** MR.Const_McOffsetMeshOutputs.__ptr_storage_gridToMeshXf

protected

__ptr_storage_voxelPerFaceMap

unsafe MR.Vector_MRVoxelId_MRFaceId._Underlying** MR.Const_McOffsetMeshOutputs.__ptr_storage_voxelPerFaceMap

protected

Property Documentation

dims

unsafe MR.? Box_Vector3i MR.Const_McOffsetMeshOutputs.dims

get

optional output dimensions of the volume

gridToMeshXf

unsafe MR.? Box_AffineXf3f MR.Const_McOffsetMeshOutputs.gridToMeshXf

get

optional output transform from integer grid locations to mesh reference frame: the node with integer coordinates (i,j,k) is located in (*gridToMeshXf)( Vector3f( i, j, k ) ); every vertex of output mesh is located on a grid edge

voxelPerFaceMap

unsafe MR.? Vector_MRVoxelId_MRFaceId MR.Const_McOffsetMeshOutputs.voxelPerFaceMap

get

optional output map FaceId->VoxelId

---

The documentation for this class was generated from the following file:

• MROffset.cs
