MR.Cuda.PointsToMeshProjector Class Reference

Computes the closest point on mesh to each of given points on GPU. It caches data that necessary for computing Generated from class MR.Cuda.PointsToMeshProjector. Base classes: Direct: (non-virtual) MR.IPointsToMeshProjector This is the non-const half of the class. More...

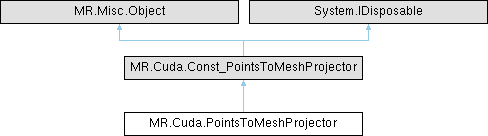

Inheritance diagram for MR.Cuda.PointsToMeshProjector:

Public Member Functions
unsafe	PointsToMeshProjector ()
	Constructs an empty (default-constructed) instance.
unsafe	PointsToMeshProjector (MR.Cuda._ByValue_PointsToMeshProjector _other)
	Generated from constructor MR.Cuda.PointsToMeshProjector.PointsToMeshProjector.
	PointsToMeshProjector (Const_PointsToMeshProjector _other)
	Generated from constructor MR.Cuda.PointsToMeshProjector.PointsToMeshProjector.
	PointsToMeshProjector (PointsToMeshProjector _other)
	Generated from constructor MR.Cuda.PointsToMeshProjector.PointsToMeshProjector.
unsafe MR.Cuda.PointsToMeshProjector	assign (MR.Cuda._ByValue_PointsToMeshProjector _other)
	Generated from method MR::Cuda::PointsToMeshProjector::operator=.
unsafe void	updateMeshData (MR.Const_Mesh? mesh)
	update all data related to the referencing mesh Generated from method MR.Cuda.PointsToMeshProjector.updateMeshData.
unsafe void	findProjections (MR.Std.Vector_MRMeshProjectionResult res, MR.Std.Const_Vector_MRVector3f points, MR.AffineXf3f? objXf, MR.AffineXf3f? refObjXf, float upDistLimitSq, float loDistLimitSq)
	Computes the closest point on mesh to each of given points.

Static Public Member Functions
static unsafe implicit	operator MR.IPointsToMeshProjector (PointsToMeshProjector self)
static unsafe	operator PointsToMeshProjector? (MR.IPointsToMeshProjector parent)

Detailed Description

Computes the closest point on mesh to each of given points on GPU. It caches data that necessary for computing Generated from class MR.Cuda.PointsToMeshProjector. Base classes: Direct: (non-virtual) MR.IPointsToMeshProjector This is the non-const half of the class.

Constructor & Destructor Documentation

PointsToMeshProjector() [1/4]

unsafe MR.Cuda.PointsToMeshProjector.PointsToMeshProjector ( )

inline

Constructs an empty (default-constructed) instance.

PointsToMeshProjector() [2/4]

unsafe MR.Cuda.PointsToMeshProjector.PointsToMeshProjector ( MR.Cuda._ByValue_PointsToMeshProjector _other )

inline

Generated from constructor MR.Cuda.PointsToMeshProjector.PointsToMeshProjector.

PointsToMeshProjector() [3/4]

MR.Cuda.PointsToMeshProjector.PointsToMeshProjector ( Const_PointsToMeshProjector _other )

inline

Generated from constructor MR.Cuda.PointsToMeshProjector.PointsToMeshProjector.

PointsToMeshProjector() [4/4]

MR.Cuda.PointsToMeshProjector.PointsToMeshProjector ( PointsToMeshProjector _other )

inline

Generated from constructor MR.Cuda.PointsToMeshProjector.PointsToMeshProjector.

Member Function Documentation

assign()

unsafe MR.Cuda.PointsToMeshProjector MR.Cuda.PointsToMeshProjector.assign ( MR.Cuda._ByValue_PointsToMeshProjector _other )

inline

Generated from method MR::Cuda::PointsToMeshProjector::operator=.

findProjections()

unsafe void MR.Cuda.PointsToMeshProjector.findProjections ( MR.Std.Vector_MRMeshProjectionResult res, MR.Std.Const_Vector_MRVector3f points, MR.AffineXf3f? objXf, MR.AffineXf3f? refObjXf, float upDistLimitSq, float loDistLimitSq )

inline

Computes the closest point on mesh to each of given points.

Parameters

res	vector pf projections
points	vector of points to project
objXf	transform applied to points
refObjXf	transform applied to referencing mesh
upDistLimitSq	maximal squared distance from point to mesh
loDistLimitSq	minimal squared distance from point to mesh

Generated from method MR.Cuda.PointsToMeshProjector.findProjections.

operator MR.IPointsToMeshProjector()

unsafe implicit MR.Cuda.PointsToMeshProjector.operator MR.IPointsToMeshProjector ( PointsToMeshProjector self )

inlinestatic

operator PointsToMeshProjector?()

unsafe MR.Cuda.PointsToMeshProjector.operator PointsToMeshProjector? ( MR.IPointsToMeshProjector parent )

inlineexplicitstatic

updateMeshData()

unsafe void MR.Cuda.PointsToMeshProjector.updateMeshData ( MR.Const_Mesh? mesh )

inline

update all data related to the referencing mesh Generated from method MR.Cuda.PointsToMeshProjector.updateMeshData.

---

The documentation for this class was generated from the following file:

• MRCudaPointsToMeshProjector.cs
