MR.FindProjectionOnPointsSettings Class Reference

settings for IPointsProjector.findProjections Generated from class MR.FindProjectionOnPointsSettings. This is the non-const half of the class. More...

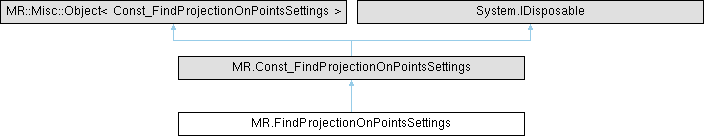

Inheritance diagram for MR.FindProjectionOnPointsSettings:

Public Member Functions
unsafe	FindProjectionOnPointsSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	FindProjectionOnPointsSettings (MR.Const_BitSet? valid, MR.AffineXf3f? xf, float upDistLimitSq, float loDistLimitSq, bool skipSameIndex, MR.Std._ByValue_Function_BoolFuncFromFloat cb)
	Constructs MR.FindProjectionOnPointsSettings elementwise.
unsafe	FindProjectionOnPointsSettings (MR._ByValue_FindProjectionOnPointsSettings _other)
	Generated from constructor MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings.
	FindProjectionOnPointsSettings (Const_FindProjectionOnPointsSettings _other)
	Generated from constructor MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings.
	FindProjectionOnPointsSettings (FindProjectionOnPointsSettings _other)
	Generated from constructor MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings.
unsafe MR.FindProjectionOnPointsSettings	assign (MR._ByValue_FindProjectionOnPointsSettings _other)
	Generated from method MR.FindProjectionOnPointsSettings.operator=.

Properties
new unsafe MR.? Const_BitSet	valid [get, set]
	bitset of valid input points
new unsafe MR.? ConstBox_AffineXf3f	xf [get, set]
	affine transformation for input points
new unsafe ref float	upDistLimitSq [get]
	upper limit on the distance in question, if the real distance is larger than the function exits returning upDistLimitSq and no valid point
new unsafe ref float	loDistLimitSq [get]
	low limit on the distance in question, if a point is found within this distance then it is immediately returned without searching for a closer one
new unsafe ref bool	skipSameIndex [get]
	if true, discards a projection candidate with the same index as the target point
new unsafe MR.Std.Function_BoolFuncFromFloat	cb [get, protected set]
	progress callback

Detailed Description

settings for IPointsProjector.findProjections Generated from class MR.FindProjectionOnPointsSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

FindProjectionOnPointsSettings() [1/5]

unsafe MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings ( )

inline

Constructs an empty (default-constructed) instance.

FindProjectionOnPointsSettings() [2/5]

unsafe MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings ( MR.Const_BitSet? valid, MR.AffineXf3f? xf, float upDistLimitSq, float loDistLimitSq, bool skipSameIndex, MR.Std._ByValue_Function_BoolFuncFromFloat cb )

inline

Constructs MR.FindProjectionOnPointsSettings elementwise.

FindProjectionOnPointsSettings() [3/5]

unsafe MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings ( MR._ByValue_FindProjectionOnPointsSettings _other )

inline

Generated from constructor MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings.

FindProjectionOnPointsSettings() [4/5]

MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings ( Const_FindProjectionOnPointsSettings _other )

inline

Generated from constructor MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings.

FindProjectionOnPointsSettings() [5/5]

MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings ( FindProjectionOnPointsSettings _other )

inline

Generated from constructor MR.FindProjectionOnPointsSettings.FindProjectionOnPointsSettings.

Member Function Documentation

assign()

unsafe MR.FindProjectionOnPointsSettings MR.FindProjectionOnPointsSettings.assign ( MR._ByValue_FindProjectionOnPointsSettings _other )

inline

Generated from method MR.FindProjectionOnPointsSettings.operator=.

Property Documentation

cb

new unsafe MR.Std.Function_BoolFuncFromFloat MR.FindProjectionOnPointsSettings.cb

getprotected set

progress callback

loDistLimitSq

new unsafe ref float MR.FindProjectionOnPointsSettings.loDistLimitSq

get

low limit on the distance in question, if a point is found within this distance then it is immediately returned without searching for a closer one

skipSameIndex

new unsafe ref bool MR.FindProjectionOnPointsSettings.skipSameIndex

get

if true, discards a projection candidate with the same index as the target point

upDistLimitSq

new unsafe ref float MR.FindProjectionOnPointsSettings.upDistLimitSq

get

upper limit on the distance in question, if the real distance is larger than the function exits returning upDistLimitSq and no valid point

valid

new unsafe MR.? Const_BitSet MR.FindProjectionOnPointsSettings.valid

getset

bitset of valid input points

xf

new unsafe MR.? ConstBox_AffineXf3f MR.FindProjectionOnPointsSettings.xf

getset

affine transformation for input points

---

The documentation for this class was generated from the following file:

• MRPointsProject.cs
