Generated from class MR.MeshRelaxParams. Base classes: Direct: (non-virtual) MR.RelaxParams Derived classes: Direct: (non-virtual) MR.MeshApproxRelaxParams MR.MeshEqualizeTriAreasParams This is the non-const half of the class. More...

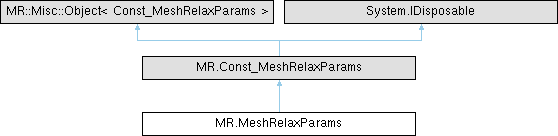

Inheritance diagram for MR.MeshRelaxParams:

Public Member Functions

unsafe MeshRelaxParams ()
 Constructs an empty (default-constructed) instance.
unsafe MeshRelaxParams (MR.Const_MeshRelaxParams _other)
 Generated from constructor MR.MeshRelaxParams.MeshRelaxParams.
 MeshRelaxParams (MeshRelaxParams _other)
 Generated from constructor MR.MeshRelaxParams.MeshRelaxParams.
unsafe MR.MeshRelaxParams assign (MR.Const_MeshRelaxParams _other)
 Generated from method MR::MeshRelaxParams::operator=.
Public Member Functions inherited from MR.Const_MeshRelaxParams
virtual void Dispose ()
unsafe Const_MeshRelaxParams ()
 Constructs an empty (default-constructed) instance.
unsafe Const_MeshRelaxParams (MR.Const_MeshRelaxParams _other)
 Generated from constructor MR.MeshRelaxParams.MeshRelaxParams.
 Const_MeshRelaxParams (MeshRelaxParams _other)
 Generated from constructor MR.MeshRelaxParams.MeshRelaxParams.

Static Public Member Functions

static unsafe implicit operator MR.RelaxParams (MeshRelaxParams self)
Static Public Member Functions inherited from MR.Const_MeshRelaxParams
static unsafe implicit operator MR.Const_RelaxParams (Const_MeshRelaxParams self)

Properties

new unsafe ref bool hardSmoothTetrahedrons [get]
 move all region vertices with exactly three neighbor vertices in the center of the neighbors
new unsafe MR.? Const_VertScalars weights [get, set]
 weight for each vertex. By default, all the vertices have equal weights.
new unsafe ref int iterations [get]
 number of iterations
new unsafe MR.? Const_VertBitSet region [get, set]
 region to relax
new unsafe ref float force [get]
 speed of relaxing, typical values (0.0, 0.5]
new unsafe ref bool updateCaches [get]
 in functions taking Mesh or PointCloud: if false then all mesh caches (AABB trees) are invalidated after relaxation, if true then they are updated only in the region (faster, but the trees might become less efficient)
new unsafe ref bool limitNearInitial [get]
 if true then maximal displacement of each point during denoising will be limited
new unsafe ref float maxInitialDist [get]
 maximum distance between a point and its position before relaxation, ignored if limitNearInitial = false
Properties inherited from MR.Const_MeshRelaxParams
unsafe bool hardSmoothTetrahedrons [get]
 move all region vertices with exactly three neighbor vertices in the center of the neighbors
unsafe MR.? Const_VertScalars weights [get]
 weight for each vertex. By default, all the vertices have equal weights.
unsafe int iterations [get]
 number of iterations
unsafe MR.? Const_VertBitSet region [get]
 region to relax
unsafe float force [get]
 speed of relaxing, typical values (0.0, 0.5]
unsafe bool updateCaches [get]
 in functions taking Mesh or PointCloud: if false then all mesh caches (AABB trees) are invalidated after relaxation, if true then they are updated only in the region (faster, but the trees might become less efficient)
unsafe bool limitNearInitial [get]
 if true then maximal displacement of each point during denoising will be limited
unsafe float maxInitialDist [get]
 maximum distance between a point and its position before relaxation, ignored if limitNearInitial = false

Additional Inherited Members

Protected Member Functions inherited from MR.Const_MeshRelaxParams
virtual unsafe void Dispose (bool disposing)
Protected Attributes inherited from MR.Const_MeshRelaxParams
unsafe bool * __ref_storage_hardSmoothTetrahedrons
unsafe MR.Const_VertScalars._Underlying ** __ptr_storage_weights
unsafe int * __ref_storage_iterations
unsafe MR.Const_VertBitSet._Underlying ** __ptr_storage_region
unsafe float * __ref_storage_force
unsafe bool * __ref_storage_updateCaches
unsafe bool * __ref_storage_limitNearInitial
unsafe float * __ref_storage_maxInitialDist

Detailed Description

Generated from class MR.MeshRelaxParams. Base classes: Direct: (non-virtual) MR.RelaxParams Derived classes: Direct: (non-virtual) MR.MeshApproxRelaxParams MR.MeshEqualizeTriAreasParams This is the non-const half of the class.

Constructor & Destructor Documentation

◆ MeshRelaxParams() [1/3]

unsafe MR.MeshRelaxParams.MeshRelaxParams ( )
inline

Constructs an empty (default-constructed) instance.

◆ MeshRelaxParams() [2/3]

unsafe MR.MeshRelaxParams.MeshRelaxParams ( MR.Const_MeshRelaxParams _other)
inline

Generated from constructor MR.MeshRelaxParams.MeshRelaxParams.

◆ MeshRelaxParams() [3/3]

MR.MeshRelaxParams.MeshRelaxParams ( MeshRelaxParams _other)
inline

Generated from constructor MR.MeshRelaxParams.MeshRelaxParams.

Member Function Documentation

◆ assign()

unsafe MR.MeshRelaxParams MR.MeshRelaxParams.assign ( MR.Const_MeshRelaxParams _other)
inline

Generated from method MR::MeshRelaxParams::operator=.

◆ operator MR.RelaxParams()

unsafe implicit MR.MeshRelaxParams.operator MR.RelaxParams ( MeshRelaxParams self)
inlinestatic

Property Documentation

◆ force

new unsafe ref float MR.MeshRelaxParams.force
get

speed of relaxing, typical values (0.0, 0.5]

◆ hardSmoothTetrahedrons

new unsafe ref bool MR.MeshRelaxParams.hardSmoothTetrahedrons
get

move all region vertices with exactly three neighbor vertices in the center of the neighbors

◆ iterations

new unsafe ref int MR.MeshRelaxParams.iterations
get

number of iterations

◆ limitNearInitial

new unsafe ref bool MR.MeshRelaxParams.limitNearInitial
get

if true then maximal displacement of each point during denoising will be limited

◆ maxInitialDist

new unsafe ref float MR.MeshRelaxParams.maxInitialDist
get

maximum distance between a point and its position before relaxation, ignored if limitNearInitial = false

◆ region

new unsafe MR.? Const_VertBitSet MR.MeshRelaxParams.region
getset

region to relax

◆ updateCaches

new unsafe ref bool MR.MeshRelaxParams.updateCaches
get

in functions taking Mesh or PointCloud: if false then all mesh caches (AABB trees) are invalidated after relaxation, if true then they are updated only in the region (faster, but the trees might become less efficient)

◆ weights

new unsafe MR.? Const_VertScalars MR.MeshRelaxParams.weights
getset

weight for each vertex. By default, all the vertices have equal weights.


The documentation for this class was generated from the following file:
