MR.OffsetParameters Class Reference

Generated from class MR.OffsetParameters. Base classes: Direct: (non-virtual) MR.BaseShellParameters Derived classes: Direct: (non-virtual) MR.SharpOffsetParameters Indirect: (non-virtual) MR.GeneralOffsetParameters This is the non-const half of the class. More...

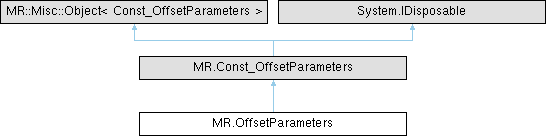

Inheritance diagram for MR.OffsetParameters:

Public Member Functions
unsafe	OffsetParameters ()
	Constructs an empty (default-constructed) instance.
unsafe	OffsetParameters (MR._ByValue_OffsetParameters _other)
	Generated from constructor MR.OffsetParameters.OffsetParameters.
	OffsetParameters (Const_OffsetParameters _other)
	Generated from constructor MR.OffsetParameters.OffsetParameters.
	OffsetParameters (OffsetParameters _other)
	Generated from constructor MR.OffsetParameters.OffsetParameters.
unsafe MR.OffsetParameters	assign (MR._ByValue_OffsetParameters _other)
	Generated from method MR::OffsetParameters::operator=.

Static Public Member Functions
static unsafe implicit	operator MR.BaseShellParameters (OffsetParameters self)

Properties
new unsafe ref MR.SignDetectionMode	signDetectionMode [get]
	determines the method to compute distance sign
new unsafe ref bool	closeHolesInHoleWindingNumber [get]
	whether to construct closed mesh in signMode = SignDetectionModeShort.HoleWindingNumber
new unsafe ref float	windingNumberThreshold [get]
	only for SignDetectionMode.HoleWindingRule: positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes
new unsafe ref float	windingNumberBeta [get]
	only for SignDetectionMode.HoleWindingRule: determines the precision of fast approximation: the more the better, minimum value is 1
new unsafe MR.Std.SharedPtr_MRIFastWindingNumber	fwn [get, protected set]
	defines particular implementation of IFastWindingNumber interface that will compute windings. If it is not specified, default FastWindingNumber is used this only used if signDetectionMode == SignDetectionMode.HoleWindingRule, otherwise it is ignored providing this will disable memoryEfficient (as if memoryEfficient == false)
new unsafe ref bool	memoryEfficient [get]
	use FunctionVolume for voxel grid representation:
new unsafe ref float	voxelSize [get]
	Size of voxel in grid conversions; The user is responsible for setting some positive value here.
new unsafe MR.Std.Function_Bool_From_Float	callBack [get, protected set]
	Progress callback.

Detailed Description

Generated from class MR.OffsetParameters. Base classes: Direct: (non-virtual) MR.BaseShellParameters Derived classes: Direct: (non-virtual) MR.SharpOffsetParameters Indirect: (non-virtual) MR.GeneralOffsetParameters This is the non-const half of the class.

Constructor & Destructor Documentation

OffsetParameters() [1/4]

unsafe MR.OffsetParameters.OffsetParameters ( )

inline

Constructs an empty (default-constructed) instance.

OffsetParameters() [2/4]

unsafe MR.OffsetParameters.OffsetParameters ( MR._ByValue_OffsetParameters _other )

inline

Generated from constructor MR.OffsetParameters.OffsetParameters.

OffsetParameters() [3/4]

MR.OffsetParameters.OffsetParameters ( Const_OffsetParameters _other )

inline

Generated from constructor MR.OffsetParameters.OffsetParameters.

OffsetParameters() [4/4]

MR.OffsetParameters.OffsetParameters ( OffsetParameters _other )

inline

Generated from constructor MR.OffsetParameters.OffsetParameters.

Member Function Documentation

assign()

unsafe MR.OffsetParameters MR.OffsetParameters.assign ( MR._ByValue_OffsetParameters _other )

inline

Generated from method MR::OffsetParameters::operator=.

operator MR.BaseShellParameters()

unsafe implicit MR.OffsetParameters.operator MR.BaseShellParameters ( OffsetParameters self )

inlinestatic

Property Documentation

callBack

new unsafe MR.Std.Function_Bool_From_Float MR.OffsetParameters.callBack

getprotected set

Progress callback.

closeHolesInHoleWindingNumber

new unsafe ref bool MR.OffsetParameters.closeHolesInHoleWindingNumber

get

whether to construct closed mesh in signMode = SignDetectionModeShort.HoleWindingNumber

fwn

new unsafe MR.Std.SharedPtr_MRIFastWindingNumber MR.OffsetParameters.fwn

getprotected set

defines particular implementation of IFastWindingNumber interface that will compute windings. If it is not specified, default FastWindingNumber is used this only used if signDetectionMode == SignDetectionMode.HoleWindingRule, otherwise it is ignored providing this will disable memoryEfficient (as if memoryEfficient == false)

memoryEfficient

new unsafe ref bool MR.OffsetParameters.memoryEfficient

get

use FunctionVolume for voxel grid representation:

• memory consumption for voxel storage is approx. (dims.z / (2 * thread_count)) lesser
• computations are about 15% slower (because some z-layers are computed twice) this setting is ignored (as if memoryEfficient == false) if a) signDetectionMode = SignDetectionMode.OpenVDB, or b) fwn is provided (CUDA computations require full memory storage) used only by mcOffsetMesh and sharpOffsetMesh methods

signDetectionMode

new unsafe ref MR.SignDetectionMode MR.OffsetParameters.signDetectionMode

get

determines the method to compute distance sign

voxelSize

new unsafe ref float MR.OffsetParameters.voxelSize

get

Size of voxel in grid conversions; The user is responsible for setting some positive value here.

windingNumberBeta

new unsafe ref float MR.OffsetParameters.windingNumberBeta

get

only for SignDetectionMode.HoleWindingRule: determines the precision of fast approximation: the more the better, minimum value is 1

windingNumberThreshold

new unsafe ref float MR.OffsetParameters.windingNumberThreshold

get

only for SignDetectionMode.HoleWindingRule: positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes

---

The documentation for this class was generated from the following file:

• MROffset.cs
