Generated from class MR.SharpOffsetParameters. Base classes: Direct: (non-virtual) MR.OffsetParameters Indirect: (non-virtual) MR.BaseShellParameters Derived classes: Direct: (non-virtual) MR.GeneralOffsetParameters This is the non-const half of the class. More...

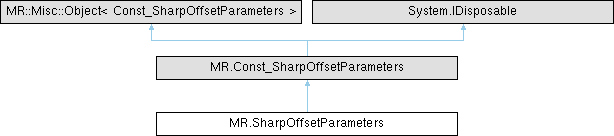

Inheritance diagram for MR.SharpOffsetParameters:

Public Member Functions
unsafe	SharpOffsetParameters ()
	Constructs an empty (default-constructed) instance.
unsafe	SharpOffsetParameters (MR._ByValue_SharpOffsetParameters _other)
	Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.
	SharpOffsetParameters (Const_SharpOffsetParameters _other)
	Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.
	SharpOffsetParameters (SharpOffsetParameters _other)
	Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.
unsafe MR.SharpOffsetParameters	assign (MR._ByValue_SharpOffsetParameters _other)
	Generated from method MR::SharpOffsetParameters::operator=.
Public Member Functions inherited from MR.Const_SharpOffsetParameters
virtual void	Dispose ()
unsafe	Const_SharpOffsetParameters ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_SharpOffsetParameters (MR._ByValue_SharpOffsetParameters _other)
	Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.
	Const_SharpOffsetParameters (Const_SharpOffsetParameters _other)
	Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.
	Const_SharpOffsetParameters (SharpOffsetParameters _other)
	Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.

Static Public Member Functions
static unsafe implicit	operator MR.BaseShellParameters (SharpOffsetParameters self)
static unsafe implicit	operator MR.OffsetParameters (SharpOffsetParameters self)
Static Public Member Functions inherited from MR.Const_SharpOffsetParameters
static unsafe implicit	operator MR.Const_BaseShellParameters (Const_SharpOffsetParameters self)
static unsafe implicit	operator MR.Const_OffsetParameters (Const_SharpOffsetParameters self)

Properties
new unsafe MR.? UndirectedEdgeBitSet	outSharpEdges `[get, set]`
	if non-null then created sharp edges will be saved here
new unsafe ref float	minNewVertDev `[get]`
	minimal surface deviation to introduce new vertex in a voxel, measured in voxelSize
new unsafe ref float	maxNewRank2VertDev `[get]`
	maximal surface deviation to introduce new rank 2 vertex (on intersection of 2 planes), measured in voxelSize
new unsafe ref float	maxNewRank3VertDev `[get]`
	maximal surface deviation to introduce new rank 3 vertex (on intersection of 3 planes), measured in voxelSize
new unsafe ref float	maxOldVertPosCorrection `[get]`
	correct positions of the input vertices using reference mesh by not more than this distance, measured in voxelSize; big correction can be wrong and result from self-intersections in the reference mesh
new unsafe ref MR.SignDetectionMode	signDetectionMode `[get]`
	determines the method to compute distance sign
new unsafe ref bool	closeHolesInHoleWindingNumber `[get]`
	whether to construct closed mesh in signMode = SignDetectionModeShort.HoleWindingNumber
new unsafe ref float	windingNumberThreshold `[get]`
	only for SignDetectionMode.HoleWindingRule: positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes
new unsafe ref float	windingNumberBeta `[get]`
	only for SignDetectionMode.HoleWindingRule: determines the precision of fast approximation: the more the better, minimum value is 1
new unsafe MR.Std.SharedPtr_MRIFastWindingNumber	fwn `[get, protected set]`
	defines particular implementation of IFastWindingNumber interface that will compute windings. If it is not specified, default FastWindingNumber is used this only used if signDetectionMode == SignDetectionMode.HoleWindingRule, otherwise it is ignored providing this will disable memoryEfficient (as if memoryEfficient == false)
new unsafe ref bool	memoryEfficient `[get]`
	use FunctionVolume for voxel grid representation:
new unsafe ref float	voxelSize `[get]`
	Size of voxel in grid conversions; The user is responsible for setting some positive value here.
new unsafe MR.Std.Function_Bool_From_Float	callBack `[get, protected set]`
	Progress callback.
Properties inherited from MR.Const_SharpOffsetParameters
unsafe MR.? UndirectedEdgeBitSet	outSharpEdges `[get]`
	if non-null then created sharp edges will be saved here
unsafe float	minNewVertDev `[get]`
	minimal surface deviation to introduce new vertex in a voxel, measured in voxelSize
unsafe float	maxNewRank2VertDev `[get]`
	maximal surface deviation to introduce new rank 2 vertex (on intersection of 2 planes), measured in voxelSize
unsafe float	maxNewRank3VertDev `[get]`
	maximal surface deviation to introduce new rank 3 vertex (on intersection of 3 planes), measured in voxelSize
unsafe float	maxOldVertPosCorrection `[get]`
	correct positions of the input vertices using reference mesh by not more than this distance, measured in voxelSize; big correction can be wrong and result from self-intersections in the reference mesh
unsafe MR.SignDetectionMode	signDetectionMode `[get]`
	determines the method to compute distance sign
unsafe bool	closeHolesInHoleWindingNumber `[get]`
	whether to construct closed mesh in signMode = SignDetectionModeShort.HoleWindingNumber
unsafe float	windingNumberThreshold `[get]`
	only for SignDetectionMode.HoleWindingRule: positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes
unsafe float	windingNumberBeta `[get]`
	only for SignDetectionMode.HoleWindingRule: determines the precision of fast approximation: the more the better, minimum value is 1
unsafe MR.Std.Const_SharedPtr_MRIFastWindingNumber	fwn `[get, protected set]`
	defines particular implementation of IFastWindingNumber interface that will compute windings. If it is not specified, default FastWindingNumber is used this only used if signDetectionMode == SignDetectionMode.HoleWindingRule, otherwise it is ignored providing this will disable memoryEfficient (as if memoryEfficient == false)
unsafe bool	memoryEfficient `[get]`
	use FunctionVolume for voxel grid representation:
unsafe float	voxelSize `[get]`
	Size of voxel in grid conversions; The user is responsible for setting some positive value here.
unsafe MR.Std.Const_Function_Bool_From_Float	callBack `[get, protected set]`
	Progress callback.

Additional Inherited Members
Protected Member Functions inherited from MR.Const_SharpOffsetParameters
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_SharpOffsetParameters
unsafe MR.UndirectedEdgeBitSet._Underlying **	__ptr_storage_outSharpEdges
unsafe float *	__ref_storage_minNewVertDev
unsafe float *	__ref_storage_maxNewRank2VertDev
unsafe float *	__ref_storage_maxNewRank3VertDev
unsafe float *	__ref_storage_maxOldVertPosCorrection
unsafe MR.SignDetectionMode *	__ref_storage_signDetectionMode
unsafe bool *	__ref_storage_closeHolesInHoleWindingNumber
unsafe float *	__ref_storage_windingNumberThreshold
unsafe float *	__ref_storage_windingNumberBeta
unsafe bool *	__ref_storage_memoryEfficient
unsafe float *	__ref_storage_voxelSize

Detailed Description

Generated from class MR.SharpOffsetParameters. Base classes: Direct: (non-virtual) MR.OffsetParameters Indirect: (non-virtual) MR.BaseShellParameters Derived classes: Direct: (non-virtual) MR.GeneralOffsetParameters This is the non-const half of the class.

Constructor & Destructor Documentation

◆ SharpOffsetParameters() [1/4]

unsafe MR.SharpOffsetParameters.SharpOffsetParameters ( )

inline

Constructs an empty (default-constructed) instance.

◆ SharpOffsetParameters() [2/4]

unsafe MR.SharpOffsetParameters.SharpOffsetParameters ( MR._ByValue_SharpOffsetParameters _other )

inline

Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.

◆ SharpOffsetParameters() [3/4]

MR.SharpOffsetParameters.SharpOffsetParameters ( Const_SharpOffsetParameters _other )

inline

Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.

◆ SharpOffsetParameters() [4/4]

MR.SharpOffsetParameters.SharpOffsetParameters ( SharpOffsetParameters _other )

inline

Generated from constructor MR.SharpOffsetParameters.SharpOffsetParameters.

Member Function Documentation

◆ assign()

unsafe MR.SharpOffsetParameters MR.SharpOffsetParameters.assign ( MR._ByValue_SharpOffsetParameters _other )

inline

Generated from method MR::SharpOffsetParameters::operator=.

◆ operator MR.BaseShellParameters()

unsafe implicit MR.SharpOffsetParameters.operator MR.BaseShellParameters ( SharpOffsetParameters self )

inlinestatic

◆ operator MR.OffsetParameters()

unsafe implicit MR.SharpOffsetParameters.operator MR.OffsetParameters ( SharpOffsetParameters self )

inlinestatic

Property Documentation

◆ callBack

new unsafe MR.Std.Function_Bool_From_Float MR.SharpOffsetParameters.callBack

getprotected set

Progress callback.

◆ closeHolesInHoleWindingNumber

new unsafe ref bool MR.SharpOffsetParameters.closeHolesInHoleWindingNumber

get

whether to construct closed mesh in signMode = SignDetectionModeShort.HoleWindingNumber

◆ fwn

new unsafe MR.Std.SharedPtr_MRIFastWindingNumber MR.SharpOffsetParameters.fwn

getprotected set

defines particular implementation of IFastWindingNumber interface that will compute windings. If it is not specified, default FastWindingNumber is used this only used if signDetectionMode == SignDetectionMode.HoleWindingRule, otherwise it is ignored providing this will disable memoryEfficient (as if memoryEfficient == false)

◆ maxNewRank2VertDev

new unsafe ref float MR.SharpOffsetParameters.maxNewRank2VertDev

get

maximal surface deviation to introduce new rank 2 vertex (on intersection of 2 planes), measured in voxelSize

◆ maxNewRank3VertDev

new unsafe ref float MR.SharpOffsetParameters.maxNewRank3VertDev

get

maximal surface deviation to introduce new rank 3 vertex (on intersection of 3 planes), measured in voxelSize

◆ maxOldVertPosCorrection

new unsafe ref float MR.SharpOffsetParameters.maxOldVertPosCorrection

get

correct positions of the input vertices using reference mesh by not more than this distance, measured in voxelSize; big correction can be wrong and result from self-intersections in the reference mesh

◆ memoryEfficient

new unsafe ref bool MR.SharpOffsetParameters.memoryEfficient

get

use FunctionVolume for voxel grid representation:

memory consumption for voxel storage is approx. (dims.z / (2 * thread_count)) lesser
computations are about 15% slower (because some z-layers are computed twice) this setting is ignored (as if memoryEfficient == false) if a) signDetectionMode = SignDetectionMode.OpenVDB, or b) fwn is provided (CUDA computations require full memory storage) used only by mcOffsetMesh and sharpOffsetMesh methods

◆ minNewVertDev

new unsafe ref float MR.SharpOffsetParameters.minNewVertDev

get

minimal surface deviation to introduce new vertex in a voxel, measured in voxelSize

◆ outSharpEdges

new unsafe MR.? UndirectedEdgeBitSet MR.SharpOffsetParameters.outSharpEdges

getset

if non-null then created sharp edges will be saved here

◆ signDetectionMode

new unsafe ref MR.SignDetectionMode MR.SharpOffsetParameters.signDetectionMode

get

determines the method to compute distance sign

◆ voxelSize

new unsafe ref float MR.SharpOffsetParameters.voxelSize

get

Size of voxel in grid conversions; The user is responsible for setting some positive value here.

◆ windingNumberBeta

new unsafe ref float MR.SharpOffsetParameters.windingNumberBeta

get

only for SignDetectionMode.HoleWindingRule: determines the precision of fast approximation: the more the better, minimum value is 1

◆ windingNumberThreshold

new unsafe ref float MR.SharpOffsetParameters.windingNumberThreshold

get

only for SignDetectionMode.HoleWindingRule: positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes

The documentation for this class was generated from the following file:

MROffset.cs
