MR.SaveSettings Class Reference

determines how to save points/lines/mesh Generated from class MR.SaveSettings. Derived classes: Direct: (non-virtual) MR.MeshSave.CtmSaveOptions MR.PointsSave.CtmSavePointsOptions This is the non-const half of the class. More...

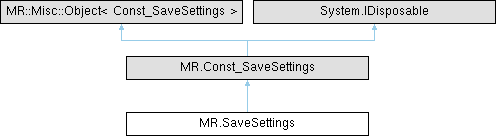

Inheritance diagram for MR.SaveSettings:

Public Member Functions
unsafe	SaveSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	SaveSettings (bool onlyValidPoints, bool packPrimitives, MR.Const_VertColors? colors, MR.Std.Const_Vector_MRColor? primitiveColors, MR.Const_VertCoords2? uvMap, bool saveTriCornerUVCoords, MR.Const_MeshTexture? texture, string materialName, MR.AffineXf3d? xf, MR.LengthUnit? lengthUnit, MR._InOpt_Color solidColor, MR.Std._ByValue_Function_BoolFuncFromFloat progress)
	Constructs MR.SaveSettings elementwise.
unsafe	SaveSettings (MR._ByValue_SaveSettings _other)
	Generated from constructor MR.SaveSettings.SaveSettings.
	SaveSettings (Const_SaveSettings _other)
	Generated from constructor MR.SaveSettings.SaveSettings.
	SaveSettings (SaveSettings _other)
	Generated from constructor MR.SaveSettings.SaveSettings.
unsafe MR.SaveSettings	assign (MR._ByValue_SaveSettings _other)
	Generated from method MR.SaveSettings.operator=.

Properties
new unsafe ref bool	onlyValidPoints [get]
new unsafe ref bool	packPrimitives [get]
new unsafe MR.? Const_VertColors	colors [get, set]
	optional per-vertex color to save with the geometry
new unsafe MR.Std.? Const_Vector_MRColor	primitiveColors [get, set]
	per-face colors for meshes, per-undirected-edge colors for polylines, unused for point clouds and other
new unsafe MR.? Const_VertCoords2	uvMap [get, set]
	optional per-vertex uv coordinate to save with the geometry
new unsafe ref bool	saveTriCornerUVCoords [get]
new unsafe MR.? Const_MeshTexture	texture [get, set]
	optional texture to save with the geometry
new unsafe MR.Std.String	materialName [get, protected set]
	the name of file (UTF8 encoded) without extension to save texture in some formats (e.g. .OBJ, .PLY)
new unsafe MR.? ConstBox_AffineXf3d	xf [get, set]
	this transformation can optionally be applied to all vertices (points) of saved object
new unsafe MR.Std.Optional_MRLengthUnit	lengthUnit [get, protected set]
	units of input coordinates and transformation, to be serialized if the format supports it
new unsafe MR.Std.Optional_MRColor	solidColor [get, protected set]
	the color of whole object
new unsafe MR.Std.Function_BoolFuncFromFloat	progress [get, protected set]
	to report save progress and cancel saving if user desires

Detailed Description

determines how to save points/lines/mesh Generated from class MR.SaveSettings. Derived classes: Direct: (non-virtual) MR.MeshSave.CtmSaveOptions MR.PointsSave.CtmSavePointsOptions This is the non-const half of the class.

Constructor & Destructor Documentation

SaveSettings() [1/5]

unsafe MR.SaveSettings.SaveSettings ( )

inline

Constructs an empty (default-constructed) instance.

SaveSettings() [2/5]

unsafe MR.SaveSettings.SaveSettings ( bool onlyValidPoints, bool packPrimitives, MR.Const_VertColors? colors, MR.Std.Const_Vector_MRColor? primitiveColors, MR.Const_VertCoords2? uvMap, bool saveTriCornerUVCoords, MR.Const_MeshTexture? texture, string materialName, MR.AffineXf3d? xf, MR.LengthUnit? lengthUnit, MR._InOpt_Color solidColor, MR.Std._ByValue_Function_BoolFuncFromFloat progress )

inline

Constructs MR.SaveSettings elementwise.

SaveSettings() [3/5]

unsafe MR.SaveSettings.SaveSettings ( MR._ByValue_SaveSettings _other )

inline

Generated from constructor MR.SaveSettings.SaveSettings.

SaveSettings() [4/5]

MR.SaveSettings.SaveSettings ( Const_SaveSettings _other )

inline

Generated from constructor MR.SaveSettings.SaveSettings.

SaveSettings() [5/5]

MR.SaveSettings.SaveSettings ( SaveSettings _other )

inline

Generated from constructor MR.SaveSettings.SaveSettings.

Member Function Documentation

assign()

unsafe MR.SaveSettings MR.SaveSettings.assign ( MR._ByValue_SaveSettings _other )

inline

Generated from method MR.SaveSettings.operator=.

Property Documentation

colors

new unsafe MR.? Const_VertColors MR.SaveSettings.colors

getset

optional per-vertex color to save with the geometry

lengthUnit

new unsafe MR.Std.Optional_MRLengthUnit MR.SaveSettings.lengthUnit

getprotected set

units of input coordinates and transformation, to be serialized if the format supports it

materialName

new unsafe MR.Std.String MR.SaveSettings.materialName

getprotected set

the name of file (UTF8 encoded) without extension to save texture in some formats (e.g. .OBJ, .PLY)

onlyValidPoints

new unsafe ref bool MR.SaveSettings.onlyValidPoints

get

true - save valid points/vertices only (pack them); false - save all points/vertices preserving their indices

packPrimitives

new unsafe ref bool MR.SaveSettings.packPrimitives

get

whether to allow packing or shuffling of primitives (triangles in meshes or edges in polylines); if packPrimitives=true, then ids of invalid primitives are reused by valid primitives and higher compression (in .ctm format) can be reached if the order of triangles is changed; if packPrimitives=false then all primitives maintain their ids, and invalid primitives are saved with all vertex ids equal to zero; currently this flag affects the saving in .ctm and .ply formats only

primitiveColors

new unsafe MR.Std.? Const_Vector_MRColor MR.SaveSettings.primitiveColors

getset

per-face colors for meshes, per-undirected-edge colors for polylines, unused for point clouds and other

progress

new unsafe MR.Std.Function_BoolFuncFromFloat MR.SaveSettings.progress

getprotected set

to report save progress and cancel saving if user desires

saveTriCornerUVCoords

new unsafe ref bool MR.SaveSettings.saveTriCornerUVCoords

get

if a format supports both per-vertex and per-tri-corner UV-coordinates, then prefer the later option (it takes more space but more supported in other software)

solidColor

new unsafe MR.Std.Optional_MRColor MR.SaveSettings.solidColor

getprotected set

the color of whole object

texture

new unsafe MR.? Const_MeshTexture MR.SaveSettings.texture

getset

optional texture to save with the geometry

uvMap

new unsafe MR.? Const_VertCoords2 MR.SaveSettings.uvMap

getset

optional per-vertex uv coordinate to save with the geometry

xf

new unsafe MR.? ConstBox_AffineXf3d MR.SaveSettings.xf

getset

this transformation can optionally be applied to all vertices (points) of saved object

---

The documentation for this class was generated from the following file:

• MRSaveSettings.cs
