#include <MRCMesh/MRId.h>#include <MRCMisc/common.h>#include <MRCMisc/exports.h>#include <stdbool.h>#include <stddef.h>#include <stdint.h>Go to the source code of this file.
Enumerations | |
| enum | MR_DecimateStrategy { MR_DecimateStrategy_MinimizeError = 0 , MR_DecimateStrategy_ShortestEdgeFirst = 1 } |
| Defines the order of edge collapses inside Decimate algorithm. More... | |
| typedef struct MR_DecimateResult MR_DecimateResult |
Generated from class MR::DecimateResult.
| typedef struct MR_DecimateSettings MR_DecimateSettings |
Generated from class MR::DecimateSettings.
| typedef enum MR_DecimateStrategy MR_DecimateStrategy |
Defines the order of edge collapses inside Decimate algorithm.
| typedef struct MR_FaceBitSet MR_FaceBitSet |
| typedef struct MR_MeshPart MR_MeshPart |
| typedef struct MR_phmap_flat_hash_map_MR_UndirectedEdgeId_MR_UndirectedEdgeId MR_phmap_flat_hash_map_MR_UndirectedEdgeId_MR_UndirectedEdgeId |
| typedef struct MR_QuadraticForm3f MR_QuadraticForm3f |
| typedef struct MR_RemeshSettings MR_RemeshSettings |
Generated from class MR::RemeshSettings.
| typedef struct MR_ResolveMeshDegenSettings MR_ResolveMeshDegenSettings |
Generated from class MR::ResolveMeshDegenSettings.
| typedef struct MR_std_function_bool_from_float MR_std_function_bool_from_float |
| typedef struct MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref |
| typedef struct MR_std_function_void_from_MR_EdgeId_MR_EdgeId MR_std_function_void_from_MR_EdgeId_MR_EdgeId |
| typedef struct MR_std_function_void_from_MR_UndirectedEdgeId_float_ref_MR_Vector3f_ref MR_std_function_void_from_MR_UndirectedEdgeId_float_ref_MR_Vector3f_ref |
| typedef struct MR_std_vector_MR_FaceBitSet MR_std_vector_MR_FaceBitSet |
| typedef struct MR_UndirectedEdgeBitSet MR_UndirectedEdgeBitSet |
| typedef struct MR_VertBitSet MR_VertBitSet |
| enum MR_DecimateStrategy |
| MRC_API MR_QuadraticForm3f * MR_computeFormAtVertex | ( | const MR_MeshPart * | mp, |
| MR_VertId | v, | ||
| float | stabilizer, | ||
| bool | angleWeigted, | ||
| const MR_UndirectedEdgeBitSet * | creases ) |
Computes quadratic form at given vertex of the initial surface before decimation.
Generated from function MR::computeFormAtVertex. Parameter mp can not be null. It is a single object. Parameter creases defaults to a null pointer in C++. Never returns null. Returns an instance allocated on the heap! Must call MR_QuadraticForm3f_Destroy() to free it when you're done using it.
| MRC_API MR_Vector_MR_QuadraticForm3f_MR_VertId * MR_computeFormsAtVertices | ( | const MR_MeshPart * | mp, |
| float | stabilizer, | ||
| bool | angleWeigted, | ||
| const MR_UndirectedEdgeBitSet * | creases ) |
Computes quadratic forms at every vertex of mesh part before decimation.
Generated from function MR::computeFormsAtVertices. Parameter mp can not be null. It is a single object. Parameter creases defaults to a null pointer in C++. Never returns null. Returns an instance allocated on the heap! Must call MR_Vector_MR_QuadraticForm3f_MR_VertId_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateResult * MR_decimateMesh | ( | MR_Mesh * | mesh, |
| const MR_DecimateSettings * | settings ) |

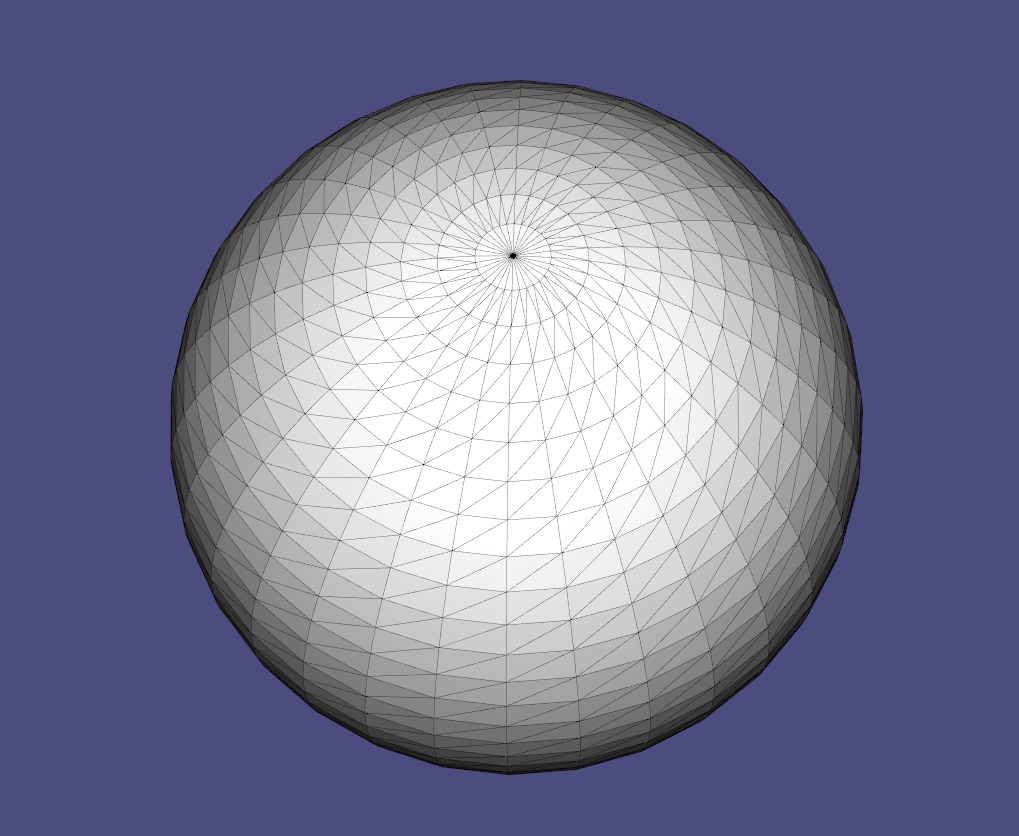

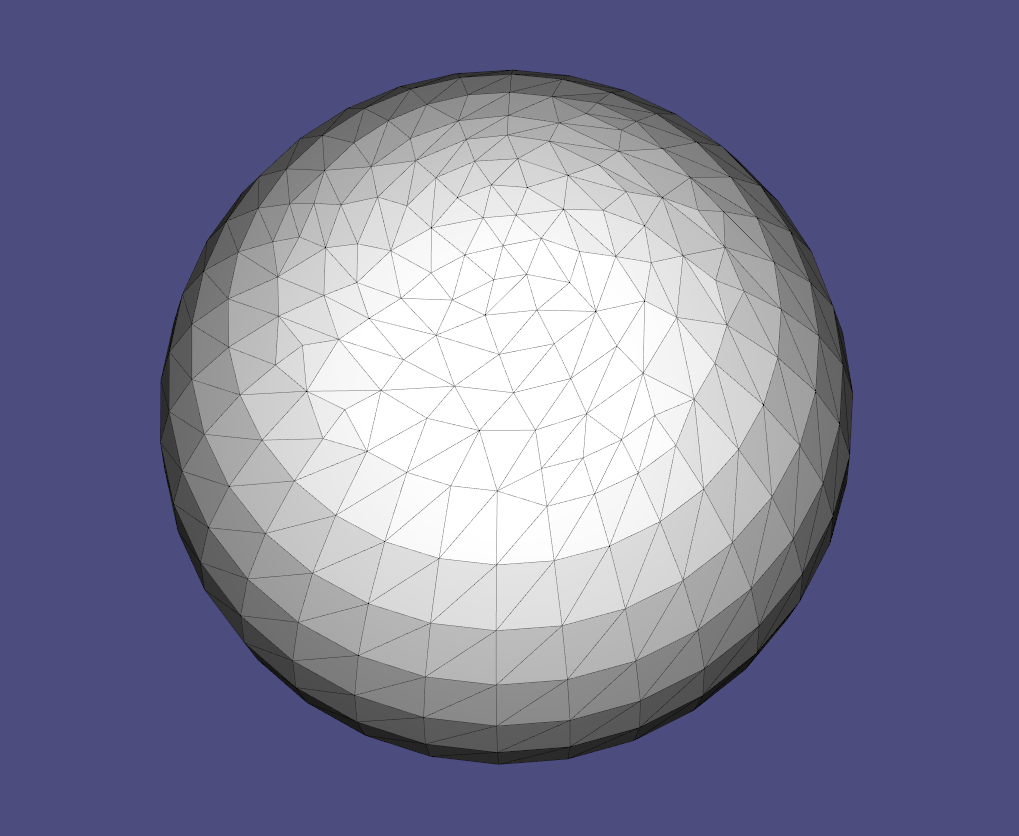

Collapse edges in mesh region according to the settings.
Generated from function MR::decimateMesh. Parameter mesh can not be null. It is a single object. Parameter settings is a single object. Parameter settings has a default argument: {}, pass a null pointer to use it. Never returns null. Returns an instance allocated on the heap! Must call MR_DecimateResult_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateResult * MR_DecimateResult_AssignFromAnother | ( | MR_DecimateResult * | _this, |
| const MR_DecimateResult * | _other ) |
Generated from a method of class MR::DecimateResult named operator=. Parameter _this can not be null. It is a single object. Parameter _other can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_DecimateResult * MR_DecimateResult_ConstructFrom | ( | int32_t | vertsDeleted, |
| int32_t | facesDeleted, | ||
| float | errorIntroduced, | ||
| bool | cancelled ) |
Constructs MR::DecimateResult elementwise. Never returns null. Returns an instance allocated on the heap! Must call MR_DecimateResult_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateResult * MR_DecimateResult_ConstructFromAnother | ( | const MR_DecimateResult * | _other | ) |
Generated from a constructor of class MR::DecimateResult. Parameter _other can not be null. It is a single object. Never returns null. Returns an instance allocated on the heap! Must call MR_DecimateResult_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateResult * MR_DecimateResult_DefaultConstruct | ( | void | ) |
Constructs an empty (default-constructed) instance. Never returns null. Returns an instance allocated on the heap! Must call MR_DecimateResult_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateResult * MR_DecimateResult_DefaultConstructArray | ( | size_t | num_elems | ) |
Constructs an array of empty (default-constructed) instances, of the specified size. Will never return null. The array must be destroyed using MR_DecimateResult_DestroyArray(). Use MR_DecimateResult_OffsetMutablePtr() and MR_DecimateResult_OffsetPtr() to access the array elements.
| MRC_API void MR_DecimateResult_Destroy | ( | const MR_DecimateResult * | _this | ) |
Destroys a heap-allocated instance of MR_DecimateResult. Does nothing if the pointer is null.
| MRC_API void MR_DecimateResult_DestroyArray | ( | const MR_DecimateResult * | _this | ) |
Destroys a heap-allocated array of MR_DecimateResult. Does nothing if the pointer is null.
| MRC_API const bool * MR_DecimateResult_Get_cancelled | ( | const MR_DecimateResult * | _this | ) |
whether the algorithm was cancelled by the callback Returns a pointer to a member variable of class MR::DecimateResult named cancelled. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateResult_Get_errorIntroduced | ( | const MR_DecimateResult * | _this | ) |
for DecimateStrategy::MinimizeError: estimated distance deviation of decimated mesh from the original mesh for DecimateStrategy::ShortestEdgeFirst: the shortest remaining edge in the mesh Returns a pointer to a member variable of class MR::DecimateResult named errorIntroduced. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const int32_t * MR_DecimateResult_Get_facesDeleted | ( | const MR_DecimateResult * | _this | ) |
Number deleted faces Modifies a member variable of class MR::DecimateResult named facesDeleted. Parameter _this can not be null. It is a single object.
| MRC_API const int32_t * MR_DecimateResult_Get_vertsDeleted | ( | const MR_DecimateResult * | _this | ) |
Number deleted verts. Same as the number of performed collapses Modifies a member variable of class MR::DecimateResult named vertsDeleted. Parameter _this can not be null. It is a single object.
| MRC_API bool * MR_DecimateResult_GetMutable_cancelled | ( | MR_DecimateResult * | _this | ) |
whether the algorithm was cancelled by the callback Returns a mutable pointer to a member variable of class MR::DecimateResult named cancelled. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateResult_GetMutable_errorIntroduced | ( | MR_DecimateResult * | _this | ) |
for DecimateStrategy::MinimizeError: estimated distance deviation of decimated mesh from the original mesh for DecimateStrategy::ShortestEdgeFirst: the shortest remaining edge in the mesh Returns a mutable pointer to a member variable of class MR::DecimateResult named errorIntroduced. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int32_t * MR_DecimateResult_GetMutable_facesDeleted | ( | MR_DecimateResult * | _this | ) |
| MRC_API int32_t * MR_DecimateResult_GetMutable_vertsDeleted | ( | MR_DecimateResult * | _this | ) |
Number deleted faces Returns a pointer to a member variable of class MR::DecimateResult named facesDeleted. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_DecimateResult * MR_DecimateResult_OffsetMutablePtr | ( | MR_DecimateResult * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API const MR_DecimateResult * MR_DecimateResult_OffsetPtr | ( | const MR_DecimateResult * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API void MR_DecimateResult_Set_cancelled | ( | MR_DecimateResult * | _this, |
| bool | value ) |
whether the algorithm was cancelled by the callback Modifies a member variable of class MR::DecimateResult named cancelled. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateResult_Set_errorIntroduced | ( | MR_DecimateResult * | _this, |
| float | value ) |
for DecimateStrategy::MinimizeError: estimated distance deviation of decimated mesh from the original mesh for DecimateStrategy::ShortestEdgeFirst: the shortest remaining edge in the mesh Modifies a member variable of class MR::DecimateResult named errorIntroduced. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateResult_Set_facesDeleted | ( | MR_DecimateResult * | _this, |
| int32_t | value ) |
Number deleted faces Returns a mutable pointer to a member variable of class MR::DecimateResult named facesDeleted. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API void MR_DecimateResult_Set_vertsDeleted | ( | MR_DecimateResult * | _this, |
| int32_t | value ) |
Number deleted verts. Same as the number of performed collapses Returns a mutable pointer to a member variable of class MR::DecimateResult named vertsDeleted. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_DecimateSettings * MR_DecimateSettings_AssignFromAnother | ( | MR_DecimateSettings * | _this, |
| MR_PassBy | _other_pass_by, | ||
| MR_DecimateSettings * | _other ) |
Generated from a method of class MR::DecimateSettings named operator=. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it. Number deleted verts. Same as the number of performed collapses Returns a pointer to a member variable of class MR::DecimateResult named vertsDeleted. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_DecimateSettings * MR_DecimateSettings_ConstructFrom | ( | MR_DecimateStrategy | strategy, |
| float | maxError, | ||
| float | maxEdgeLen, | ||
| float | maxBdShift, | ||
| float | maxTriangleAspectRatio, | ||
| float | criticalTriAspectRatio, | ||
| float | tinyEdgeLength, | ||
| float | stabilizer, | ||
| bool | angleWeightedDistToPlane, | ||
| bool | optimizeVertexPos, | ||
| int32_t | maxDeletedVertices, | ||
| int32_t | maxDeletedFaces, | ||
| MR_FaceBitSet * | region, | ||
| MR_UndirectedEdgeBitSet * | notFlippable, | ||
| bool | collapseNearNotFlippable, | ||
| MR_UndirectedEdgeBitSet * | edgesToCollapse, | ||
| MR_phmap_flat_hash_map_MR_UndirectedEdgeId_MR_UndirectedEdgeId * | twinMap, | ||
| bool | touchNearBdEdges, | ||
| bool | touchBdVerts, | ||
| MR_VertBitSet * | bdVerts, | ||
| float | maxAngleChange, | ||
| MR_PassBy | preCollapse_pass_by, | ||
| MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * | preCollapse, | ||
| MR_PassBy | adjustCollapse_pass_by, | ||
| MR_std_function_void_from_MR_UndirectedEdgeId_float_ref_MR_Vector3f_ref * | adjustCollapse, | ||
| MR_PassBy | onEdgeDel_pass_by, | ||
| MR_std_function_void_from_MR_EdgeId_MR_EdgeId * | onEdgeDel, | ||
| MR_Vector_MR_QuadraticForm3f_MR_VertId * | vertForms, | ||
| bool | packMesh, | ||
| MR_PassBy | progressCallback_pass_by, | ||
| MR_std_function_bool_from_float * | progressCallback, | ||
| int32_t | subdivideParts, | ||
| bool | decimateBetweenParts, | ||
| MR_std_vector_MR_FaceBitSet * | partFaces, | ||
| int32_t | minFacesInPart ) |
Constructs MR::DecimateSettings elementwise. Never returns null. Returns an instance allocated on the heap! Must call MR_DecimateSettings_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateSettings * MR_DecimateSettings_ConstructFromAnother | ( | MR_PassBy | _other_pass_by, |
| MR_DecimateSettings * | _other ) |
Generated from a constructor of class MR::DecimateSettings. Never returns null. Returns an instance allocated on the heap! Must call MR_DecimateSettings_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateSettings * MR_DecimateSettings_DefaultConstruct | ( | void | ) |
Constructs an empty (default-constructed) instance. Never returns null. Returns an instance allocated on the heap! Must call MR_DecimateSettings_Destroy() to free it when you're done using it.
| MRC_API MR_DecimateSettings * MR_DecimateSettings_DefaultConstructArray | ( | size_t | num_elems | ) |
Constructs an array of empty (default-constructed) instances, of the specified size. Will never return null. The array must be destroyed using MR_DecimateSettings_DestroyArray(). Use MR_DecimateSettings_OffsetMutablePtr() and MR_DecimateSettings_OffsetPtr() to access the array elements.
| MRC_API void MR_DecimateSettings_Destroy | ( | const MR_DecimateSettings * | _this | ) |
Destroys a heap-allocated instance of MR_DecimateSettings. Does nothing if the pointer is null.
| MRC_API void MR_DecimateSettings_DestroyArray | ( | const MR_DecimateSettings * | _this | ) |
Destroys a heap-allocated array of MR_DecimateSettings. Does nothing if the pointer is null.
| MRC_API const MR_std_function_void_from_MR_UndirectedEdgeId_float_ref_MR_Vector3f_ref * MR_DecimateSettings_Get_adjustCollapse | ( | const MR_DecimateSettings * | _this | ) |
The user can provide this optional callback for adjusting error introduced by this edge collapse and the collapse position.
On input the callback gets the squared error and position computed by standard means, and callback can modify any of them. The larger the error, the later this edge will be collapsed. This callback can be called from many threads in parallel and must be thread-safe. This callback can be called many times for each edge before real collapsing, and it is important to make the same adjustment. Returns a pointer to a member variable of class MR::DecimateSettings named adjustCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_DecimateSettings_Get_angleWeightedDistToPlane | ( | const MR_DecimateSettings * | _this | ) |
if false, then quadratic error metric is equal to the sum of distances to the planes of original mesh triangles; if true, then the sum is weighted, and the weight is equal to the angle of adjacent triangle at the vertex divided on PI (to get one after summing all 3 vertices of the triangle) Returns a pointer to a member variable of class MR::DecimateSettings named angleWeightedDistToPlane. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_VertBitSet *const * MR_DecimateSettings_Get_bdVerts | ( | const MR_DecimateSettings * | _this | ) |
if touchNearBdEdges=false or touchBdVerts=false then the algorithm needs to know about all boundary vertices; if the pointer is not null then boundary vertices detection is replaced with testing values in this bit-set; the algorithm updates this set if it packs the mesh Returns a pointer to a member variable of class MR::DecimateSettings named bdVerts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_DecimateSettings_Get_collapseNearNotFlippable | ( | const MR_DecimateSettings * | _this | ) |
Whether to allow collapse of edges incident to notFlippable edges, which can move vertices of notFlippable edges unless they are fixed Returns a pointer to a member variable of class MR::DecimateSettings named collapseNearNotFlippable. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_criticalTriAspectRatio | ( | const MR_DecimateSettings * | _this | ) |
the algorithm will ignore dihedral angle check if one of triangles had aspect ratio equal or more than this value; and the algorithm will permit temporary increase in aspect ratio after collapse, if before collapse one of the triangles had larger aspect ratio Returns a pointer to a member variable of class MR::DecimateSettings named criticalTriAspectRatio. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_DecimateSettings_Get_decimateBetweenParts | ( | const MR_DecimateSettings * | _this | ) |
After parallel decimation of all mesh parts is done, whether to perform final decimation of whole mesh region to eliminate small edges near the border of individual parts Returns a pointer to a member variable of class MR::DecimateSettings named decimateBetweenParts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_UndirectedEdgeBitSet *const * MR_DecimateSettings_Get_edgesToCollapse | ( | const MR_DecimateSettings * | _this | ) |
If pointer is not null, then only edges from here can be collapsed (and some nearby edges can disappear); the algorithm updates this map during collapses, removing or replacing elements Returns a pointer to a member variable of class MR::DecimateSettings named edgesToCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_maxAngleChange | ( | const MR_DecimateSettings * | _this | ) |
Permit edge flips (in addition to collapsing) to improve Delone quality of the mesh if it does not change dihedral angle more than on this value (negative value prohibits any edge flips) Returns a pointer to a member variable of class MR::DecimateSettings named maxAngleChange. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_maxBdShift | ( | const MR_DecimateSettings * | _this | ) |
Maximal shift of a boundary during one edge collapse Returns a pointer to a member variable of class MR::DecimateSettings named maxBdShift. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const int32_t * MR_DecimateSettings_Get_maxDeletedFaces | ( | const MR_DecimateSettings * | _this | ) |
Limit on the number of deleted faces Returns a pointer to a member variable of class MR::DecimateSettings named maxDeletedFaces. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const int32_t * MR_DecimateSettings_Get_maxDeletedVertices | ( | const MR_DecimateSettings * | _this | ) |
Limit on the number of deleted vertices Returns a pointer to a member variable of class MR::DecimateSettings named maxDeletedVertices. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_maxEdgeLen | ( | const MR_DecimateSettings * | _this | ) |
Maximal possible edge length created during decimation Returns a pointer to a member variable of class MR::DecimateSettings named maxEdgeLen. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_maxError | ( | const MR_DecimateSettings * | _this | ) |
for DecimateStrategy::MinimizeError: stop the decimation as soon as the estimated distance deviation from the original mesh is more than this value for DecimateStrategy::ShortestEdgeFirst only: stop the decimation as soon as the shortest edge in the mesh is greater than this value Returns a pointer to a member variable of class MR::DecimateSettings named maxError. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_maxTriangleAspectRatio | ( | const MR_DecimateSettings * | _this | ) |
Maximal possible aspect ratio of a triangle introduced during decimation Returns a pointer to a member variable of class MR::DecimateSettings named maxTriangleAspectRatio. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const int32_t * MR_DecimateSettings_Get_minFacesInPart | ( | const MR_DecimateSettings * | _this | ) |
minimum number of faces in one subdivision part for ( subdivideParts > 1 ) mode Returns a pointer to a member variable of class MR::DecimateSettings named minFacesInPart. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_UndirectedEdgeBitSet *const * MR_DecimateSettings_Get_notFlippable | ( | const MR_DecimateSettings * | _this | ) |
Edges specified by this bit-set will never be flipped, but they can be collapsed or replaced during collapse of nearby edges so it is updated during the operation Returns a pointer to a member variable of class MR::DecimateSettings named notFlippable. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_function_void_from_MR_EdgeId_MR_EdgeId * MR_DecimateSettings_Get_onEdgeDel | ( | const MR_DecimateSettings * | _this | ) |
this function is called each time edge (del) is deleted; if valid (rem) is given then dest(del) = dest(rem) and their origins are in different ends of collapsing edge, (rem) shall take the place of (del) Returns a pointer to a member variable of class MR::DecimateSettings named onEdgeDel. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_DecimateSettings_Get_optimizeVertexPos | ( | const MR_DecimateSettings * | _this | ) |
if true then after each edge collapse the position of remaining vertex is optimized to minimize local shape change, if false then the edge is collapsed in one of its vertices, which keeps its position Returns a pointer to a member variable of class MR::DecimateSettings named optimizeVertexPos. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_DecimateSettings_Get_packMesh | ( | const MR_DecimateSettings * | _this | ) |
whether to pack mesh at the end Returns a pointer to a member variable of class MR::DecimateSettings named packMesh. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_vector_MR_FaceBitSet *const * MR_DecimateSettings_Get_partFaces | ( | const MR_DecimateSettings * | _this | ) |
if not null, then it contains the faces of each subdivision part on input, which must not overlap, and after decimation of all parts, the region inside each part is put here; decimateBetweenParts=true or packMesh=true are not compatible with this option Returns a pointer to a member variable of class MR::DecimateSettings named partFaces. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * MR_DecimateSettings_Get_preCollapse | ( | const MR_DecimateSettings * | _this | ) |
The user can provide this optional callback that is invoked immediately before edge collapse;.
It receives the edge being collapsed: its destination vertex will disappear, and its origin vertex will get new position (provided as the second argument) after collapse; If the callback returns false, then the collapse is prohibited Returns a pointer to a member variable of class MR::DecimateSettings named preCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_function_bool_from_float * MR_DecimateSettings_Get_progressCallback | ( | const MR_DecimateSettings * | _this | ) |
callback to report algorithm progress and cancel it by user request Returns a pointer to a member variable of class MR::DecimateSettings named progressCallback. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_FaceBitSet *const * MR_DecimateSettings_Get_region | ( | const MR_DecimateSettings * | _this | ) |
Region on mesh to be decimated, it is updated during the operation Returns a pointer to a member variable of class MR::DecimateSettings named region. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_stabilizer | ( | const MR_DecimateSettings * | _this | ) |
Small stabilizer is important to achieve good results on completely planar mesh parts, if your mesh is not-planer everywhere, then you can set it to zero Returns a pointer to a member variable of class MR::DecimateSettings named stabilizer. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_DecimateStrategy * MR_DecimateSettings_Get_strategy | ( | const MR_DecimateSettings * | _this | ) |
Returns a pointer to a member variable of class MR::DecimateSettings named strategy. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const int32_t * MR_DecimateSettings_Get_subdivideParts | ( | const MR_DecimateSettings * | _this | ) |
If this value is more than 1, then virtually subdivides the mesh on given number of parts to process them in parallel (using many threads); IMPORTANT: please call mesh.packOptimally() before calling decimating with subdivideParts > 1, otherwise performance will be bad Returns a pointer to a member variable of class MR::DecimateSettings named subdivideParts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_DecimateSettings_Get_tinyEdgeLength | ( | const MR_DecimateSettings * | _this | ) |
edges not longer than this value will be collapsed even if it results in appearance of a triangle with high aspect ratio Returns a pointer to a member variable of class MR::DecimateSettings named tinyEdgeLength. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_DecimateSettings_Get_touchBdVerts | ( | const MR_DecimateSettings * | _this | ) |
touchBdVerts=true: allow moving and eliminating boundary vertices during edge collapses; touchBdVerts=false: allow only collapsing an edge having only one boundary vertex in that vertex, so position and count of boundary vertices do not change; this setting is ignored if touchNearBdEdges=false Returns a pointer to a member variable of class MR::DecimateSettings named touchBdVerts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_DecimateSettings_Get_touchNearBdEdges | ( | const MR_DecimateSettings * | _this | ) |
Whether to allow collapsing or flipping edges having at least one vertex on (region) boundary Returns a pointer to a member variable of class MR::DecimateSettings named touchNearBdEdges. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_phmap_flat_hash_map_MR_UndirectedEdgeId_MR_UndirectedEdgeId *const * MR_DecimateSettings_Get_twinMap | ( | const MR_DecimateSettings * | _this | ) |
if an edge present as a key in this map is flipped or collapsed, then same happens to the value-edge (with same collapse position); the algorithm updates this map during collapses, removing or replacing elements Returns a pointer to a member variable of class MR::DecimateSettings named twinMap. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_Vector_MR_QuadraticForm3f_MR_VertId *const * MR_DecimateSettings_Get_vertForms | ( | const MR_DecimateSettings * | _this | ) |
If not null, then vertex quadratic forms are stored there; if on input the vector is not empty then initialization is skipped in favor of values from there; on output: quadratic form for each remaining vertex is returned there.
Returns a pointer to a member variable of class MR::DecimateSettings named vertForms. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_void_from_MR_UndirectedEdgeId_float_ref_MR_Vector3f_ref * MR_DecimateSettings_GetMutable_adjustCollapse | ( | MR_DecimateSettings * | _this | ) |
The user can provide this optional callback for adjusting error introduced by this edge collapse and the collapse position.
On input the callback gets the squared error and position computed by standard means, and callback can modify any of them. The larger the error, the later this edge will be collapsed. This callback can be called from many threads in parallel and must be thread-safe. This callback can be called many times for each edge before real collapsing, and it is important to make the same adjustment. Returns a mutable pointer to a member variable of class MR::DecimateSettings named adjustCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_DecimateSettings_GetMutable_angleWeightedDistToPlane | ( | MR_DecimateSettings * | _this | ) |
if false, then quadratic error metric is equal to the sum of distances to the planes of original mesh triangles; if true, then the sum is weighted, and the weight is equal to the angle of adjacent triangle at the vertex divided on PI (to get one after summing all 3 vertices of the triangle) Returns a mutable pointer to a member variable of class MR::DecimateSettings named angleWeightedDistToPlane. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_VertBitSet ** MR_DecimateSettings_GetMutable_bdVerts | ( | MR_DecimateSettings * | _this | ) |
if touchNearBdEdges=false or touchBdVerts=false then the algorithm needs to know about all boundary vertices; if the pointer is not null then boundary vertices detection is replaced with testing values in this bit-set; the algorithm updates this set if it packs the mesh Returns a mutable pointer to a member variable of class MR::DecimateSettings named bdVerts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_DecimateSettings_GetMutable_collapseNearNotFlippable | ( | MR_DecimateSettings * | _this | ) |
Whether to allow collapse of edges incident to notFlippable edges, which can move vertices of notFlippable edges unless they are fixed Returns a mutable pointer to a member variable of class MR::DecimateSettings named collapseNearNotFlippable. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_criticalTriAspectRatio | ( | MR_DecimateSettings * | _this | ) |
the algorithm will ignore dihedral angle check if one of triangles had aspect ratio equal or more than this value; and the algorithm will permit temporary increase in aspect ratio after collapse, if before collapse one of the triangles had larger aspect ratio Returns a mutable pointer to a member variable of class MR::DecimateSettings named criticalTriAspectRatio. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_DecimateSettings_GetMutable_decimateBetweenParts | ( | MR_DecimateSettings * | _this | ) |
After parallel decimation of all mesh parts is done, whether to perform final decimation of whole mesh region to eliminate small edges near the border of individual parts Returns a mutable pointer to a member variable of class MR::DecimateSettings named decimateBetweenParts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_UndirectedEdgeBitSet ** MR_DecimateSettings_GetMutable_edgesToCollapse | ( | MR_DecimateSettings * | _this | ) |
If pointer is not null, then only edges from here can be collapsed (and some nearby edges can disappear); the algorithm updates this map during collapses, removing or replacing elements Returns a mutable pointer to a member variable of class MR::DecimateSettings named edgesToCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_maxAngleChange | ( | MR_DecimateSettings * | _this | ) |
Permit edge flips (in addition to collapsing) to improve Delone quality of the mesh if it does not change dihedral angle more than on this value (negative value prohibits any edge flips) Returns a mutable pointer to a member variable of class MR::DecimateSettings named maxAngleChange. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_maxBdShift | ( | MR_DecimateSettings * | _this | ) |
Maximal shift of a boundary during one edge collapse Returns a mutable pointer to a member variable of class MR::DecimateSettings named maxBdShift. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int32_t * MR_DecimateSettings_GetMutable_maxDeletedFaces | ( | MR_DecimateSettings * | _this | ) |
Limit on the number of deleted faces Returns a mutable pointer to a member variable of class MR::DecimateSettings named maxDeletedFaces. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int32_t * MR_DecimateSettings_GetMutable_maxDeletedVertices | ( | MR_DecimateSettings * | _this | ) |
Limit on the number of deleted vertices Returns a mutable pointer to a member variable of class MR::DecimateSettings named maxDeletedVertices. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_maxEdgeLen | ( | MR_DecimateSettings * | _this | ) |
Maximal possible edge length created during decimation Returns a mutable pointer to a member variable of class MR::DecimateSettings named maxEdgeLen. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_maxError | ( | MR_DecimateSettings * | _this | ) |
for DecimateStrategy::MinimizeError: stop the decimation as soon as the estimated distance deviation from the original mesh is more than this value for DecimateStrategy::ShortestEdgeFirst only: stop the decimation as soon as the shortest edge in the mesh is greater than this value Returns a mutable pointer to a member variable of class MR::DecimateSettings named maxError. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_maxTriangleAspectRatio | ( | MR_DecimateSettings * | _this | ) |
Maximal possible aspect ratio of a triangle introduced during decimation Returns a mutable pointer to a member variable of class MR::DecimateSettings named maxTriangleAspectRatio. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int32_t * MR_DecimateSettings_GetMutable_minFacesInPart | ( | MR_DecimateSettings * | _this | ) |
minimum number of faces in one subdivision part for ( subdivideParts > 1 ) mode Returns a mutable pointer to a member variable of class MR::DecimateSettings named minFacesInPart. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_UndirectedEdgeBitSet ** MR_DecimateSettings_GetMutable_notFlippable | ( | MR_DecimateSettings * | _this | ) |
Edges specified by this bit-set will never be flipped, but they can be collapsed or replaced during collapse of nearby edges so it is updated during the operation Returns a mutable pointer to a member variable of class MR::DecimateSettings named notFlippable. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_void_from_MR_EdgeId_MR_EdgeId * MR_DecimateSettings_GetMutable_onEdgeDel | ( | MR_DecimateSettings * | _this | ) |
this function is called each time edge (del) is deleted; if valid (rem) is given then dest(del) = dest(rem) and their origins are in different ends of collapsing edge, (rem) shall take the place of (del) Returns a mutable pointer to a member variable of class MR::DecimateSettings named onEdgeDel. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_DecimateSettings_GetMutable_optimizeVertexPos | ( | MR_DecimateSettings * | _this | ) |
if true then after each edge collapse the position of remaining vertex is optimized to minimize local shape change, if false then the edge is collapsed in one of its vertices, which keeps its position Returns a mutable pointer to a member variable of class MR::DecimateSettings named optimizeVertexPos. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_DecimateSettings_GetMutable_packMesh | ( | MR_DecimateSettings * | _this | ) |
whether to pack mesh at the end Returns a mutable pointer to a member variable of class MR::DecimateSettings named packMesh. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_vector_MR_FaceBitSet ** MR_DecimateSettings_GetMutable_partFaces | ( | MR_DecimateSettings * | _this | ) |
if not null, then it contains the faces of each subdivision part on input, which must not overlap, and after decimation of all parts, the region inside each part is put here; decimateBetweenParts=true or packMesh=true are not compatible with this option Returns a mutable pointer to a member variable of class MR::DecimateSettings named partFaces. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * MR_DecimateSettings_GetMutable_preCollapse | ( | MR_DecimateSettings * | _this | ) |
The user can provide this optional callback that is invoked immediately before edge collapse;.
It receives the edge being collapsed: its destination vertex will disappear, and its origin vertex will get new position (provided as the second argument) after collapse; If the callback returns false, then the collapse is prohibited Returns a mutable pointer to a member variable of class MR::DecimateSettings named preCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_bool_from_float * MR_DecimateSettings_GetMutable_progressCallback | ( | MR_DecimateSettings * | _this | ) |
callback to report algorithm progress and cancel it by user request Returns a mutable pointer to a member variable of class MR::DecimateSettings named progressCallback. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_FaceBitSet ** MR_DecimateSettings_GetMutable_region | ( | MR_DecimateSettings * | _this | ) |
Region on mesh to be decimated, it is updated during the operation Returns a mutable pointer to a member variable of class MR::DecimateSettings named region. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_stabilizer | ( | MR_DecimateSettings * | _this | ) |
Small stabilizer is important to achieve good results on completely planar mesh parts, if your mesh is not-planer everywhere, then you can set it to zero Returns a mutable pointer to a member variable of class MR::DecimateSettings named stabilizer. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_DecimateStrategy * MR_DecimateSettings_GetMutable_strategy | ( | MR_DecimateSettings * | _this | ) |
Returns a mutable pointer to a member variable of class MR::DecimateSettings named strategy. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int32_t * MR_DecimateSettings_GetMutable_subdivideParts | ( | MR_DecimateSettings * | _this | ) |
If this value is more than 1, then virtually subdivides the mesh on given number of parts to process them in parallel (using many threads); IMPORTANT: please call mesh.packOptimally() before calling decimating with subdivideParts > 1, otherwise performance will be bad Returns a mutable pointer to a member variable of class MR::DecimateSettings named subdivideParts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_DecimateSettings_GetMutable_tinyEdgeLength | ( | MR_DecimateSettings * | _this | ) |
edges not longer than this value will be collapsed even if it results in appearance of a triangle with high aspect ratio Returns a mutable pointer to a member variable of class MR::DecimateSettings named tinyEdgeLength. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_DecimateSettings_GetMutable_touchBdVerts | ( | MR_DecimateSettings * | _this | ) |
touchBdVerts=true: allow moving and eliminating boundary vertices during edge collapses; touchBdVerts=false: allow only collapsing an edge having only one boundary vertex in that vertex, so position and count of boundary vertices do not change; this setting is ignored if touchNearBdEdges=false Returns a mutable pointer to a member variable of class MR::DecimateSettings named touchBdVerts. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_DecimateSettings_GetMutable_touchNearBdEdges | ( | MR_DecimateSettings * | _this | ) |
Whether to allow collapsing or flipping edges having at least one vertex on (region) boundary Returns a mutable pointer to a member variable of class MR::DecimateSettings named touchNearBdEdges. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_phmap_flat_hash_map_MR_UndirectedEdgeId_MR_UndirectedEdgeId ** MR_DecimateSettings_GetMutable_twinMap | ( | MR_DecimateSettings * | _this | ) |
if an edge present as a key in this map is flipped or collapsed, then same happens to the value-edge (with same collapse position); the algorithm updates this map during collapses, removing or replacing elements Returns a mutable pointer to a member variable of class MR::DecimateSettings named twinMap. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_Vector_MR_QuadraticForm3f_MR_VertId ** MR_DecimateSettings_GetMutable_vertForms | ( | MR_DecimateSettings * | _this | ) |
If not null, then vertex quadratic forms are stored there; if on input the vector is not empty then initialization is skipped in favor of values from there; on output: quadratic form for each remaining vertex is returned there.
Returns a mutable pointer to a member variable of class MR::DecimateSettings named vertForms. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_DecimateSettings * MR_DecimateSettings_OffsetMutablePtr | ( | MR_DecimateSettings * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API const MR_DecimateSettings * MR_DecimateSettings_OffsetPtr | ( | const MR_DecimateSettings * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API void MR_DecimateSettings_Set_adjustCollapse | ( | MR_DecimateSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_void_from_MR_UndirectedEdgeId_float_ref_MR_Vector3f_ref * | value ) |
The user can provide this optional callback for adjusting error introduced by this edge collapse and the collapse position.
On input the callback gets the squared error and position computed by standard means, and callback can modify any of them. The larger the error, the later this edge will be collapsed. This callback can be called from many threads in parallel and must be thread-safe. This callback can be called many times for each edge before real collapsing, and it is important to make the same adjustment. Modifies a member variable of class MR::DecimateSettings named adjustCollapse. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_angleWeightedDistToPlane | ( | MR_DecimateSettings * | _this, |
| bool | value ) |
if false, then quadratic error metric is equal to the sum of distances to the planes of original mesh triangles; if true, then the sum is weighted, and the weight is equal to the angle of adjacent triangle at the vertex divided on PI (to get one after summing all 3 vertices of the triangle) Modifies a member variable of class MR::DecimateSettings named angleWeightedDistToPlane. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_bdVerts | ( | MR_DecimateSettings * | _this, |
| MR_VertBitSet * | value ) |
if touchNearBdEdges=false or touchBdVerts=false then the algorithm needs to know about all boundary vertices; if the pointer is not null then boundary vertices detection is replaced with testing values in this bit-set; the algorithm updates this set if it packs the mesh Modifies a member variable of class MR::DecimateSettings named bdVerts. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_collapseNearNotFlippable | ( | MR_DecimateSettings * | _this, |
| bool | value ) |
Whether to allow collapse of edges incident to notFlippable edges, which can move vertices of notFlippable edges unless they are fixed Modifies a member variable of class MR::DecimateSettings named collapseNearNotFlippable. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_criticalTriAspectRatio | ( | MR_DecimateSettings * | _this, |
| float | value ) |
the algorithm will ignore dihedral angle check if one of triangles had aspect ratio equal or more than this value; and the algorithm will permit temporary increase in aspect ratio after collapse, if before collapse one of the triangles had larger aspect ratio Modifies a member variable of class MR::DecimateSettings named criticalTriAspectRatio. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_decimateBetweenParts | ( | MR_DecimateSettings * | _this, |
| bool | value ) |
After parallel decimation of all mesh parts is done, whether to perform final decimation of whole mesh region to eliminate small edges near the border of individual parts Modifies a member variable of class MR::DecimateSettings named decimateBetweenParts. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_edgesToCollapse | ( | MR_DecimateSettings * | _this, |
| MR_UndirectedEdgeBitSet * | value ) |
If pointer is not null, then only edges from here can be collapsed (and some nearby edges can disappear); the algorithm updates this map during collapses, removing or replacing elements Modifies a member variable of class MR::DecimateSettings named edgesToCollapse. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_maxAngleChange | ( | MR_DecimateSettings * | _this, |
| float | value ) |
Permit edge flips (in addition to collapsing) to improve Delone quality of the mesh if it does not change dihedral angle more than on this value (negative value prohibits any edge flips) Modifies a member variable of class MR::DecimateSettings named maxAngleChange. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_maxBdShift | ( | MR_DecimateSettings * | _this, |
| float | value ) |
Maximal shift of a boundary during one edge collapse Modifies a member variable of class MR::DecimateSettings named maxBdShift. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_maxDeletedFaces | ( | MR_DecimateSettings * | _this, |
| int32_t | value ) |
Limit on the number of deleted faces Modifies a member variable of class MR::DecimateSettings named maxDeletedFaces. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_maxDeletedVertices | ( | MR_DecimateSettings * | _this, |
| int32_t | value ) |
Limit on the number of deleted vertices Modifies a member variable of class MR::DecimateSettings named maxDeletedVertices. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_maxEdgeLen | ( | MR_DecimateSettings * | _this, |
| float | value ) |
Maximal possible edge length created during decimation Modifies a member variable of class MR::DecimateSettings named maxEdgeLen. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_maxError | ( | MR_DecimateSettings * | _this, |
| float | value ) |
for DecimateStrategy::MinimizeError: stop the decimation as soon as the estimated distance deviation from the original mesh is more than this value for DecimateStrategy::ShortestEdgeFirst only: stop the decimation as soon as the shortest edge in the mesh is greater than this value Modifies a member variable of class MR::DecimateSettings named maxError. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_maxTriangleAspectRatio | ( | MR_DecimateSettings * | _this, |
| float | value ) |
Maximal possible aspect ratio of a triangle introduced during decimation Modifies a member variable of class MR::DecimateSettings named maxTriangleAspectRatio. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_minFacesInPart | ( | MR_DecimateSettings * | _this, |
| int32_t | value ) |
minimum number of faces in one subdivision part for ( subdivideParts > 1 ) mode Modifies a member variable of class MR::DecimateSettings named minFacesInPart. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_notFlippable | ( | MR_DecimateSettings * | _this, |
| MR_UndirectedEdgeBitSet * | value ) |
Edges specified by this bit-set will never be flipped, but they can be collapsed or replaced during collapse of nearby edges so it is updated during the operation Modifies a member variable of class MR::DecimateSettings named notFlippable. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_onEdgeDel | ( | MR_DecimateSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_void_from_MR_EdgeId_MR_EdgeId * | value ) |
this function is called each time edge (del) is deleted; if valid (rem) is given then dest(del) = dest(rem) and their origins are in different ends of collapsing edge, (rem) shall take the place of (del) Modifies a member variable of class MR::DecimateSettings named onEdgeDel. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_optimizeVertexPos | ( | MR_DecimateSettings * | _this, |
| bool | value ) |
if true then after each edge collapse the position of remaining vertex is optimized to minimize local shape change, if false then the edge is collapsed in one of its vertices, which keeps its position Modifies a member variable of class MR::DecimateSettings named optimizeVertexPos. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_packMesh | ( | MR_DecimateSettings * | _this, |
| bool | value ) |
whether to pack mesh at the end Modifies a member variable of class MR::DecimateSettings named packMesh. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_partFaces | ( | MR_DecimateSettings * | _this, |
| MR_std_vector_MR_FaceBitSet * | value ) |
if not null, then it contains the faces of each subdivision part on input, which must not overlap, and after decimation of all parts, the region inside each part is put here; decimateBetweenParts=true or packMesh=true are not compatible with this option Modifies a member variable of class MR::DecimateSettings named partFaces. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_preCollapse | ( | MR_DecimateSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * | value ) |
The user can provide this optional callback that is invoked immediately before edge collapse;.
It receives the edge being collapsed: its destination vertex will disappear, and its origin vertex will get new position (provided as the second argument) after collapse; If the callback returns false, then the collapse is prohibited Modifies a member variable of class MR::DecimateSettings named preCollapse. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_progressCallback | ( | MR_DecimateSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_bool_from_float * | value ) |
callback to report algorithm progress and cancel it by user request Modifies a member variable of class MR::DecimateSettings named progressCallback. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_region | ( | MR_DecimateSettings * | _this, |
| MR_FaceBitSet * | value ) |
Region on mesh to be decimated, it is updated during the operation Modifies a member variable of class MR::DecimateSettings named region. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_stabilizer | ( | MR_DecimateSettings * | _this, |
| float | value ) |
Small stabilizer is important to achieve good results on completely planar mesh parts, if your mesh is not-planer everywhere, then you can set it to zero Modifies a member variable of class MR::DecimateSettings named stabilizer. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_strategy | ( | MR_DecimateSettings * | _this, |
| MR_DecimateStrategy | value ) |
Modifies a member variable of class MR::DecimateSettings named strategy. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_subdivideParts | ( | MR_DecimateSettings * | _this, |
| int32_t | value ) |
If this value is more than 1, then virtually subdivides the mesh on given number of parts to process them in parallel (using many threads); IMPORTANT: please call mesh.packOptimally() before calling decimating with subdivideParts > 1, otherwise performance will be bad Modifies a member variable of class MR::DecimateSettings named subdivideParts. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_tinyEdgeLength | ( | MR_DecimateSettings * | _this, |
| float | value ) |
edges not longer than this value will be collapsed even if it results in appearance of a triangle with high aspect ratio Modifies a member variable of class MR::DecimateSettings named tinyEdgeLength. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_touchBdVerts | ( | MR_DecimateSettings * | _this, |
| bool | value ) |
touchBdVerts=true: allow moving and eliminating boundary vertices during edge collapses; touchBdVerts=false: allow only collapsing an edge having only one boundary vertex in that vertex, so position and count of boundary vertices do not change; this setting is ignored if touchNearBdEdges=false Modifies a member variable of class MR::DecimateSettings named touchBdVerts. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_touchNearBdEdges | ( | MR_DecimateSettings * | _this, |
| bool | value ) |
Whether to allow collapsing or flipping edges having at least one vertex on (region) boundary Modifies a member variable of class MR::DecimateSettings named touchNearBdEdges. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_twinMap | ( | MR_DecimateSettings * | _this, |
| MR_phmap_flat_hash_map_MR_UndirectedEdgeId_MR_UndirectedEdgeId * | value ) |
if an edge present as a key in this map is flipped or collapsed, then same happens to the value-edge (with same collapse position); the algorithm updates this map during collapses, removing or replacing elements Modifies a member variable of class MR::DecimateSettings named twinMap. Parameter _this can not be null. It is a single object.
| MRC_API void MR_DecimateSettings_Set_vertForms | ( | MR_DecimateSettings * | _this, |
| MR_Vector_MR_QuadraticForm3f_MR_VertId * | value ) |
If not null, then vertex quadratic forms are stored there; if on input the vector is not empty then initialization is skipped in favor of values from there; on output: quadratic form for each remaining vertex is returned there.
Modifies a member variable of class MR::DecimateSettings named vertForms. Parameter _this can not be null. It is a single object.
| MRC_API MR_FaceBitSet * MR_getSubdividePart | ( | const MR_FaceBitSet * | valids, |
| MR_uint64_t | subdivideParts, | ||
| MR_uint64_t | myPart ) |
returns given subdivision part of all valid faces; parallel threads shall be able to safely modify these bits because they do not share any block with other parts
Generated from function MR::getSubdividePart. Parameter valids can not be null. It is a single object. Never returns null. Returns an instance allocated on the heap! Must call MR_FaceBitSet_Destroy() to free it when you're done using it.
| MRC_API bool MR_remesh | ( | MR_Mesh * | mesh, |
| const MR_RemeshSettings * | settings ) |
Generated from function MR::remesh. Parameter mesh can not be null. It is a single object. Parameter settings can not be null. It is a single object.
| MRC_API MR_RemeshSettings * MR_RemeshSettings_AssignFromAnother | ( | MR_RemeshSettings * | _this, |
| MR_PassBy | _other_pass_by, | ||
| MR_RemeshSettings * | _other ) |
Generated from a method of class MR::RemeshSettings named operator=. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_RemeshSettings * MR_RemeshSettings_ConstructFrom | ( | float | targetEdgeLen, |
| int32_t | maxEdgeSplits, | ||
| float | maxAngleChangeAfterFlip, | ||
| float | maxBdShift, | ||
| bool | useCurvature, | ||
| int32_t | finalRelaxIters, | ||
| bool | finalRelaxNoShrinkage, | ||
| MR_FaceBitSet * | region, | ||
| MR_UndirectedEdgeBitSet * | notFlippable, | ||
| bool | packMesh, | ||
| bool | projectOnOriginalMesh, | ||
| MR_PassBy | onEdgeSplit_pass_by, | ||
| MR_std_function_void_from_MR_EdgeId_MR_EdgeId * | onEdgeSplit, | ||
| MR_PassBy | onEdgeDel_pass_by, | ||
| MR_std_function_void_from_MR_EdgeId_MR_EdgeId * | onEdgeDel, | ||
| MR_PassBy | preCollapse_pass_by, | ||
| MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * | preCollapse, | ||
| MR_PassBy | progressCallback_pass_by, | ||
| MR_std_function_bool_from_float * | progressCallback ) |
Constructs MR::RemeshSettings elementwise. Never returns null. Returns an instance allocated on the heap! Must call MR_RemeshSettings_Destroy() to free it when you're done using it.
| MRC_API MR_RemeshSettings * MR_RemeshSettings_ConstructFromAnother | ( | MR_PassBy | _other_pass_by, |
| MR_RemeshSettings * | _other ) |
Generated from a constructor of class MR::RemeshSettings. Never returns null. Returns an instance allocated on the heap! Must call MR_RemeshSettings_Destroy() to free it when you're done using it.
| MRC_API MR_RemeshSettings * MR_RemeshSettings_DefaultConstruct | ( | void | ) |
Constructs an empty (default-constructed) instance. Never returns null. Returns an instance allocated on the heap! Must call MR_RemeshSettings_Destroy() to free it when you're done using it.
| MRC_API MR_RemeshSettings * MR_RemeshSettings_DefaultConstructArray | ( | size_t | num_elems | ) |
Constructs an array of empty (default-constructed) instances, of the specified size. Will never return null. The array must be destroyed using MR_RemeshSettings_DestroyArray(). Use MR_RemeshSettings_OffsetMutablePtr() and MR_RemeshSettings_OffsetPtr() to access the array elements.
| MRC_API void MR_RemeshSettings_Destroy | ( | const MR_RemeshSettings * | _this | ) |
Destroys a heap-allocated instance of MR_RemeshSettings. Does nothing if the pointer is null.
| MRC_API void MR_RemeshSettings_DestroyArray | ( | const MR_RemeshSettings * | _this | ) |
Destroys a heap-allocated array of MR_RemeshSettings. Does nothing if the pointer is null.
| MRC_API const int32_t * MR_RemeshSettings_Get_finalRelaxIters | ( | const MR_RemeshSettings * | _this | ) |
the number of iterations of final relaxation of mesh vertices; few iterations can give almost perfect uniformity of the vertices and edge lengths but deviate from the original surface Returns a pointer to a member variable of class MR::RemeshSettings named finalRelaxIters. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_RemeshSettings_Get_finalRelaxNoShrinkage | ( | const MR_RemeshSettings * | _this | ) |
if true prevents the surface from shrinkage after many iterations Returns a pointer to a member variable of class MR::RemeshSettings named finalRelaxNoShrinkage. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_RemeshSettings_Get_maxAngleChangeAfterFlip | ( | const MR_RemeshSettings * | _this | ) |
Improves local mesh triangulation by doing edge flips if it does not change dihedral angle more than on this value Returns a pointer to a member variable of class MR::RemeshSettings named maxAngleChangeAfterFlip. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_RemeshSettings_Get_maxBdShift | ( | const MR_RemeshSettings * | _this | ) |
Maximal shift of a boundary during one edge collapse Returns a pointer to a member variable of class MR::RemeshSettings named maxBdShift. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const int32_t * MR_RemeshSettings_Get_maxEdgeSplits | ( | const MR_RemeshSettings * | _this | ) |
Maximum number of edge splits allowed during subdivision Returns a pointer to a member variable of class MR::RemeshSettings named maxEdgeSplits. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_UndirectedEdgeBitSet *const * MR_RemeshSettings_Get_notFlippable | ( | const MR_RemeshSettings * | _this | ) |
Edges specified by this bit-set will never be flipped or collapsed, but they can be replaced during collapse of nearby edges so it is updated during the operation; also the vertices incident to these edges are excluded from relaxation Returns a pointer to a member variable of class MR::RemeshSettings named notFlippable. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_function_void_from_MR_EdgeId_MR_EdgeId * MR_RemeshSettings_Get_onEdgeDel | ( | const MR_RemeshSettings * | _this | ) |
if valid (e1) is given then dest(e) = dest(e1) and their origins are in different ends of collapsing edge, e1 shall take the place of e Returns a pointer to a member variable of class MR::RemeshSettings named onEdgeDel. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_function_void_from_MR_EdgeId_MR_EdgeId * MR_RemeshSettings_Get_onEdgeSplit | ( | const MR_RemeshSettings * | _this | ) |
this function is called each time edge (e) is split into (e1->e), but before the ring is made Delone Returns a pointer to a member variable of class MR::RemeshSettings named onEdgeSplit. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_RemeshSettings_Get_packMesh | ( | const MR_RemeshSettings * | _this | ) |
whether to pack mesh at the end Returns a pointer to a member variable of class MR::RemeshSettings named packMesh. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * MR_RemeshSettings_Get_preCollapse | ( | const MR_RemeshSettings * | _this | ) |
The user can provide this optional callback that is invoked immediately before edge collapse;.
It receives the edge being collapsed: its destination vertex will disappear, and its origin vertex will get new position (provided as the second argument) after collapse; If the callback returns false, then the collapse is prohibited Returns a pointer to a member variable of class MR::RemeshSettings named preCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const MR_std_function_bool_from_float * MR_RemeshSettings_Get_progressCallback | ( | const MR_RemeshSettings * | _this | ) |
callback to report algorithm progress and cancel it by user request Returns a pointer to a member variable of class MR::RemeshSettings named progressCallback. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_RemeshSettings_Get_projectOnOriginalMesh | ( | const MR_RemeshSettings * | _this | ) |
if true, then every new vertex after subdivision will be projected on the original mesh (before smoothing); this does not affect the vertices moved on other stages of the processing Returns a pointer to a member variable of class MR::RemeshSettings named projectOnOriginalMesh. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_FaceBitSet *const * MR_RemeshSettings_Get_region | ( | const MR_RemeshSettings * | _this | ) |
Region on mesh to be changed, it is updated during the operation Returns a pointer to a member variable of class MR::RemeshSettings named region. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_RemeshSettings_Get_targetEdgeLen | ( | const MR_RemeshSettings * | _this | ) |
the algorithm will try to keep the length of all edges close to this value, splitting the edges longer than targetEdgeLen, and then eliminating the edges shorter than targetEdgeLen Returns a pointer to a member variable of class MR::RemeshSettings named targetEdgeLen. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const bool * MR_RemeshSettings_Get_useCurvature | ( | const MR_RemeshSettings * | _this | ) |
This option in subdivision works best for natural surfaces, where all triangles are close to equilateral and have similar area, and no sharp edges in between Returns a pointer to a member variable of class MR::RemeshSettings named useCurvature. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int32_t * MR_RemeshSettings_GetMutable_finalRelaxIters | ( | MR_RemeshSettings * | _this | ) |
the number of iterations of final relaxation of mesh vertices; few iterations can give almost perfect uniformity of the vertices and edge lengths but deviate from the original surface Returns a mutable pointer to a member variable of class MR::RemeshSettings named finalRelaxIters. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_RemeshSettings_GetMutable_finalRelaxNoShrinkage | ( | MR_RemeshSettings * | _this | ) |
if true prevents the surface from shrinkage after many iterations Returns a mutable pointer to a member variable of class MR::RemeshSettings named finalRelaxNoShrinkage. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_RemeshSettings_GetMutable_maxAngleChangeAfterFlip | ( | MR_RemeshSettings * | _this | ) |
Improves local mesh triangulation by doing edge flips if it does not change dihedral angle more than on this value Returns a mutable pointer to a member variable of class MR::RemeshSettings named maxAngleChangeAfterFlip. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_RemeshSettings_GetMutable_maxBdShift | ( | MR_RemeshSettings * | _this | ) |
Maximal shift of a boundary during one edge collapse Returns a mutable pointer to a member variable of class MR::RemeshSettings named maxBdShift. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API int32_t * MR_RemeshSettings_GetMutable_maxEdgeSplits | ( | MR_RemeshSettings * | _this | ) |
Maximum number of edge splits allowed during subdivision Returns a mutable pointer to a member variable of class MR::RemeshSettings named maxEdgeSplits. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_UndirectedEdgeBitSet ** MR_RemeshSettings_GetMutable_notFlippable | ( | MR_RemeshSettings * | _this | ) |
Edges specified by this bit-set will never be flipped or collapsed, but they can be replaced during collapse of nearby edges so it is updated during the operation; also the vertices incident to these edges are excluded from relaxation Returns a mutable pointer to a member variable of class MR::RemeshSettings named notFlippable. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_void_from_MR_EdgeId_MR_EdgeId * MR_RemeshSettings_GetMutable_onEdgeDel | ( | MR_RemeshSettings * | _this | ) |
if valid (e1) is given then dest(e) = dest(e1) and their origins are in different ends of collapsing edge, e1 shall take the place of e Returns a mutable pointer to a member variable of class MR::RemeshSettings named onEdgeDel. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_void_from_MR_EdgeId_MR_EdgeId * MR_RemeshSettings_GetMutable_onEdgeSplit | ( | MR_RemeshSettings * | _this | ) |
this function is called each time edge (e) is split into (e1->e), but before the ring is made Delone Returns a mutable pointer to a member variable of class MR::RemeshSettings named onEdgeSplit. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_RemeshSettings_GetMutable_packMesh | ( | MR_RemeshSettings * | _this | ) |
whether to pack mesh at the end Returns a mutable pointer to a member variable of class MR::RemeshSettings named packMesh. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * MR_RemeshSettings_GetMutable_preCollapse | ( | MR_RemeshSettings * | _this | ) |
The user can provide this optional callback that is invoked immediately before edge collapse;.
It receives the edge being collapsed: its destination vertex will disappear, and its origin vertex will get new position (provided as the second argument) after collapse; If the callback returns false, then the collapse is prohibited Returns a mutable pointer to a member variable of class MR::RemeshSettings named preCollapse. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_std_function_bool_from_float * MR_RemeshSettings_GetMutable_progressCallback | ( | MR_RemeshSettings * | _this | ) |
callback to report algorithm progress and cancel it by user request Returns a mutable pointer to a member variable of class MR::RemeshSettings named progressCallback. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_RemeshSettings_GetMutable_projectOnOriginalMesh | ( | MR_RemeshSettings * | _this | ) |
if true, then every new vertex after subdivision will be projected on the original mesh (before smoothing); this does not affect the vertices moved on other stages of the processing Returns a mutable pointer to a member variable of class MR::RemeshSettings named projectOnOriginalMesh. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_FaceBitSet ** MR_RemeshSettings_GetMutable_region | ( | MR_RemeshSettings * | _this | ) |
Region on mesh to be changed, it is updated during the operation Returns a mutable pointer to a member variable of class MR::RemeshSettings named region. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_RemeshSettings_GetMutable_targetEdgeLen | ( | MR_RemeshSettings * | _this | ) |
the algorithm will try to keep the length of all edges close to this value, splitting the edges longer than targetEdgeLen, and then eliminating the edges shorter than targetEdgeLen Returns a mutable pointer to a member variable of class MR::RemeshSettings named targetEdgeLen. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API bool * MR_RemeshSettings_GetMutable_useCurvature | ( | MR_RemeshSettings * | _this | ) |
This option in subdivision works best for natural surfaces, where all triangles are close to equilateral and have similar area, and no sharp edges in between Returns a mutable pointer to a member variable of class MR::RemeshSettings named useCurvature. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_RemeshSettings * MR_RemeshSettings_OffsetMutablePtr | ( | MR_RemeshSettings * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API const MR_RemeshSettings * MR_RemeshSettings_OffsetPtr | ( | const MR_RemeshSettings * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API void MR_RemeshSettings_Set_finalRelaxIters | ( | MR_RemeshSettings * | _this, |
| int32_t | value ) |
the number of iterations of final relaxation of mesh vertices; few iterations can give almost perfect uniformity of the vertices and edge lengths but deviate from the original surface Modifies a member variable of class MR::RemeshSettings named finalRelaxIters. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_finalRelaxNoShrinkage | ( | MR_RemeshSettings * | _this, |
| bool | value ) |
if true prevents the surface from shrinkage after many iterations Modifies a member variable of class MR::RemeshSettings named finalRelaxNoShrinkage. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_maxAngleChangeAfterFlip | ( | MR_RemeshSettings * | _this, |
| float | value ) |
Improves local mesh triangulation by doing edge flips if it does not change dihedral angle more than on this value Modifies a member variable of class MR::RemeshSettings named maxAngleChangeAfterFlip. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_maxBdShift | ( | MR_RemeshSettings * | _this, |
| float | value ) |
Maximal shift of a boundary during one edge collapse Modifies a member variable of class MR::RemeshSettings named maxBdShift. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_maxEdgeSplits | ( | MR_RemeshSettings * | _this, |
| int32_t | value ) |
Maximum number of edge splits allowed during subdivision Modifies a member variable of class MR::RemeshSettings named maxEdgeSplits. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_notFlippable | ( | MR_RemeshSettings * | _this, |
| MR_UndirectedEdgeBitSet * | value ) |
Edges specified by this bit-set will never be flipped or collapsed, but they can be replaced during collapse of nearby edges so it is updated during the operation; also the vertices incident to these edges are excluded from relaxation Modifies a member variable of class MR::RemeshSettings named notFlippable. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_onEdgeDel | ( | MR_RemeshSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_void_from_MR_EdgeId_MR_EdgeId * | value ) |
if valid (e1) is given then dest(e) = dest(e1) and their origins are in different ends of collapsing edge, e1 shall take the place of e Modifies a member variable of class MR::RemeshSettings named onEdgeDel. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_onEdgeSplit | ( | MR_RemeshSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_void_from_MR_EdgeId_MR_EdgeId * | value ) |
this function is called each time edge (e) is split into (e1->e), but before the ring is made Delone Modifies a member variable of class MR::RemeshSettings named onEdgeSplit. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_packMesh | ( | MR_RemeshSettings * | _this, |
| bool | value ) |
whether to pack mesh at the end Modifies a member variable of class MR::RemeshSettings named packMesh. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_preCollapse | ( | MR_RemeshSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_bool_from_MR_EdgeId_const_MR_Vector3f_ref * | value ) |
The user can provide this optional callback that is invoked immediately before edge collapse;.
It receives the edge being collapsed: its destination vertex will disappear, and its origin vertex will get new position (provided as the second argument) after collapse; If the callback returns false, then the collapse is prohibited Modifies a member variable of class MR::RemeshSettings named preCollapse. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_progressCallback | ( | MR_RemeshSettings * | _this, |
| MR_PassBy | value_pass_by, | ||
| MR_std_function_bool_from_float * | value ) |
callback to report algorithm progress and cancel it by user request Modifies a member variable of class MR::RemeshSettings named progressCallback. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_projectOnOriginalMesh | ( | MR_RemeshSettings * | _this, |
| bool | value ) |
if true, then every new vertex after subdivision will be projected on the original mesh (before smoothing); this does not affect the vertices moved on other stages of the processing Modifies a member variable of class MR::RemeshSettings named projectOnOriginalMesh. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_region | ( | MR_RemeshSettings * | _this, |
| MR_FaceBitSet * | value ) |
Region on mesh to be changed, it is updated during the operation Modifies a member variable of class MR::RemeshSettings named region. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_targetEdgeLen | ( | MR_RemeshSettings * | _this, |
| float | value ) |
the algorithm will try to keep the length of all edges close to this value, splitting the edges longer than targetEdgeLen, and then eliminating the edges shorter than targetEdgeLen Modifies a member variable of class MR::RemeshSettings named targetEdgeLen. Parameter _this can not be null. It is a single object.
| MRC_API void MR_RemeshSettings_Set_useCurvature | ( | MR_RemeshSettings * | _this, |
| bool | value ) |
This option in subdivision works best for natural surfaces, where all triangles are close to equilateral and have similar area, and no sharp edges in between Modifies a member variable of class MR::RemeshSettings named useCurvature. Parameter _this can not be null. It is a single object.
| MRC_API bool MR_resolveMeshDegenerations | ( | MR_Mesh * | mesh, |
| const MR_ResolveMeshDegenSettings * | settings ) |
Removes degenerate triangles in a mesh by calling decimateMesh function with appropriate settings.
consider using fixMeshDegeneracies for more complex cases
MR::resolveMeshDegenerations. Parameter mesh can not be null. It is a single object. Parameter settings is a single object. Parameter settings has a default argument: {}, pass a null pointer to use it. | MRC_API MR_ResolveMeshDegenSettings * MR_ResolveMeshDegenSettings_AssignFromAnother | ( | MR_ResolveMeshDegenSettings * | _this, |
| const MR_ResolveMeshDegenSettings * | _other ) |
Generated from a method of class MR::ResolveMeshDegenSettings named operator=. Parameter _this can not be null. It is a single object. Parameter _other can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_ResolveMeshDegenSettings * MR_ResolveMeshDegenSettings_ConstructFrom | ( | float | maxDeviation, |
| float | tinyEdgeLength, | ||
| float | maxAngleChange, | ||
| float | criticalAspectRatio, | ||
| float | stabilizer, | ||
| MR_FaceBitSet * | region ) |
Constructs MR::ResolveMeshDegenSettings elementwise. Never returns null. Returns an instance allocated on the heap! Must call MR_ResolveMeshDegenSettings_Destroy() to free it when you're done using it.
| MRC_API MR_ResolveMeshDegenSettings * MR_ResolveMeshDegenSettings_ConstructFromAnother | ( | const MR_ResolveMeshDegenSettings * | _other | ) |
Generated from a constructor of class MR::ResolveMeshDegenSettings. Parameter _other can not be null. It is a single object. Never returns null. Returns an instance allocated on the heap! Must call MR_ResolveMeshDegenSettings_Destroy() to free it when you're done using it.
| MRC_API MR_ResolveMeshDegenSettings * MR_ResolveMeshDegenSettings_DefaultConstruct | ( | void | ) |
Constructs an empty (default-constructed) instance. Never returns null. Returns an instance allocated on the heap! Must call MR_ResolveMeshDegenSettings_Destroy() to free it when you're done using it.
| MRC_API MR_ResolveMeshDegenSettings * MR_ResolveMeshDegenSettings_DefaultConstructArray | ( | size_t | num_elems | ) |
Constructs an array of empty (default-constructed) instances, of the specified size. Will never return null. The array must be destroyed using MR_ResolveMeshDegenSettings_DestroyArray(). Use MR_ResolveMeshDegenSettings_OffsetMutablePtr() and MR_ResolveMeshDegenSettings_OffsetPtr() to access the array elements.
| MRC_API void MR_ResolveMeshDegenSettings_Destroy | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
Destroys a heap-allocated instance of MR_ResolveMeshDegenSettings. Does nothing if the pointer is null.
| MRC_API void MR_ResolveMeshDegenSettings_DestroyArray | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
Destroys a heap-allocated array of MR_ResolveMeshDegenSettings. Does nothing if the pointer is null.
| MRC_API const float * MR_ResolveMeshDegenSettings_Get_criticalAspectRatio | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
the algorithm will ignore dihedral angle check if one of triangles had aspect ratio equal or more than this value; and the algorithm will permit temporary increase in aspect ratio after collapse, if before collapse one of the triangles had larger aspect ratio Returns a pointer to a member variable of class MR::ResolveMeshDegenSettings named criticalAspectRatio. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_ResolveMeshDegenSettings_Get_maxAngleChange | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
Permit edge flips if it does not change dihedral angle more than on this value Returns a pointer to a member variable of class MR::ResolveMeshDegenSettings named maxAngleChange. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_ResolveMeshDegenSettings_Get_maxDeviation | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
maximum permitted deviation from the original surface Returns a pointer to a member variable of class MR::ResolveMeshDegenSettings named maxDeviation. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_FaceBitSet *const * MR_ResolveMeshDegenSettings_Get_region | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
degenerations will be fixed only in given region, which is updated during the processing Returns a pointer to a member variable of class MR::ResolveMeshDegenSettings named region. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_ResolveMeshDegenSettings_Get_stabilizer | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
Small stabilizer is important to achieve good results on completely planar mesh parts, if your mesh is not-planer everywhere, then you can set it to zero Returns a pointer to a member variable of class MR::ResolveMeshDegenSettings named stabilizer. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API const float * MR_ResolveMeshDegenSettings_Get_tinyEdgeLength | ( | const MR_ResolveMeshDegenSettings * | _this | ) |
edges not longer than this value will be collapsed ignoring normals and aspect ratio checks Returns a pointer to a member variable of class MR::ResolveMeshDegenSettings named tinyEdgeLength. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_ResolveMeshDegenSettings_GetMutable_criticalAspectRatio | ( | MR_ResolveMeshDegenSettings * | _this | ) |
the algorithm will ignore dihedral angle check if one of triangles had aspect ratio equal or more than this value; and the algorithm will permit temporary increase in aspect ratio after collapse, if before collapse one of the triangles had larger aspect ratio Returns a mutable pointer to a member variable of class MR::ResolveMeshDegenSettings named criticalAspectRatio. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_ResolveMeshDegenSettings_GetMutable_maxAngleChange | ( | MR_ResolveMeshDegenSettings * | _this | ) |
Permit edge flips if it does not change dihedral angle more than on this value Returns a mutable pointer to a member variable of class MR::ResolveMeshDegenSettings named maxAngleChange. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_ResolveMeshDegenSettings_GetMutable_maxDeviation | ( | MR_ResolveMeshDegenSettings * | _this | ) |
maximum permitted deviation from the original surface Returns a mutable pointer to a member variable of class MR::ResolveMeshDegenSettings named maxDeviation. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_FaceBitSet ** MR_ResolveMeshDegenSettings_GetMutable_region | ( | MR_ResolveMeshDegenSettings * | _this | ) |
degenerations will be fixed only in given region, which is updated during the processing Returns a mutable pointer to a member variable of class MR::ResolveMeshDegenSettings named region. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_ResolveMeshDegenSettings_GetMutable_stabilizer | ( | MR_ResolveMeshDegenSettings * | _this | ) |
Small stabilizer is important to achieve good results on completely planar mesh parts, if your mesh is not-planer everywhere, then you can set it to zero Returns a mutable pointer to a member variable of class MR::ResolveMeshDegenSettings named stabilizer. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API float * MR_ResolveMeshDegenSettings_GetMutable_tinyEdgeLength | ( | MR_ResolveMeshDegenSettings * | _this | ) |
edges not longer than this value will be collapsed ignoring normals and aspect ratio checks Returns a mutable pointer to a member variable of class MR::ResolveMeshDegenSettings named tinyEdgeLength. Parameter _this can not be null. It is a single object. The returned pointer will never be null. It is non-owning, do NOT destroy it.
| MRC_API MR_ResolveMeshDegenSettings * MR_ResolveMeshDegenSettings_OffsetMutablePtr | ( | MR_ResolveMeshDegenSettings * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API const MR_ResolveMeshDegenSettings * MR_ResolveMeshDegenSettings_OffsetPtr | ( | const MR_ResolveMeshDegenSettings * | ptr, |
| ptrdiff_t | i ) |
Offsets a pointer to an array element by i positions (not bytes). Use only if you're certain that the pointer points to an array element.
| MRC_API void MR_ResolveMeshDegenSettings_Set_criticalAspectRatio | ( | MR_ResolveMeshDegenSettings * | _this, |
| float | value ) |
the algorithm will ignore dihedral angle check if one of triangles had aspect ratio equal or more than this value; and the algorithm will permit temporary increase in aspect ratio after collapse, if before collapse one of the triangles had larger aspect ratio Modifies a member variable of class MR::ResolveMeshDegenSettings named criticalAspectRatio. Parameter _this can not be null. It is a single object.
| MRC_API void MR_ResolveMeshDegenSettings_Set_maxAngleChange | ( | MR_ResolveMeshDegenSettings * | _this, |
| float | value ) |
Permit edge flips if it does not change dihedral angle more than on this value Modifies a member variable of class MR::ResolveMeshDegenSettings named maxAngleChange. Parameter _this can not be null. It is a single object.
| MRC_API void MR_ResolveMeshDegenSettings_Set_maxDeviation | ( | MR_ResolveMeshDegenSettings * | _this, |
| float | value ) |
maximum permitted deviation from the original surface Modifies a member variable of class MR::ResolveMeshDegenSettings named maxDeviation. Parameter _this can not be null. It is a single object.
| MRC_API void MR_ResolveMeshDegenSettings_Set_region | ( | MR_ResolveMeshDegenSettings * | _this, |
| MR_FaceBitSet * | value ) |
degenerations will be fixed only in given region, which is updated during the processing Modifies a member variable of class MR::ResolveMeshDegenSettings named region. Parameter _this can not be null. It is a single object.
| MRC_API void MR_ResolveMeshDegenSettings_Set_stabilizer | ( | MR_ResolveMeshDegenSettings * | _this, |
| float | value ) |
Small stabilizer is important to achieve good results on completely planar mesh parts, if your mesh is not-planer everywhere, then you can set it to zero Modifies a member variable of class MR::ResolveMeshDegenSettings named stabilizer. Parameter _this can not be null. It is a single object.
| MRC_API void MR_ResolveMeshDegenSettings_Set_tinyEdgeLength | ( | MR_ResolveMeshDegenSettings * | _this, |
| float | value ) |
edges not longer than this value will be collapsed ignoring normals and aspect ratio checks Modifies a member variable of class MR::ResolveMeshDegenSettings named tinyEdgeLength. Parameter _this can not be null. It is a single object.
1.11.0
