3D Mesh Boolean vs 3D CAD Boolean (B-Reps)
To start our overview, let’s recount some basics. Any ‘3D Boolean’ refers to a particular set of operations performed to combine or modify 3D objects, building upon their respective overlapping volumes. Named after ‘Boolean algebra,’ implying that complex results can be built from simpler logical expressions, Boolean operations encompass:
- ‘Union’ means adding. That is, it merges distinct objects into a single continuous volume;
- ‘Difference’ means subtracting. In other words, removes the volume of one object from another;
- Finally, ‘Intersection’ means keeping only the area where our objects overlap.
In line with Boolean algebra, one literally starts with basic shapes (e.g., cubes, spheres, or cylinders) and builds intricate models, using those shapes.
3D Boolean is invaluable part in:
- First, prototyping. It is not uncommon for 3D data professionals to iterate on ideas quickly. In everyday professional practice, they do so by adding or removing features on their models to verify how they eventually function or look. 3D Boolean operations make such modifications much more straightforward and streamlined;
- Second, creating complex shapes. In this respect, some shapes are simply too intricate to model from scratch, when pure sculpting or parametric approaches alone do not suffice. Through combining simpler solid objects, 3D Boolean operations enable one to compose these complex forms incrementally.
- Third, as long as 3D printing workflows are involved, the following issues are frequently tackled via 3D Boolean operations. 3D-printed models regularly require “negative” spaces for functional parts, e.g., screws, bolts, internal cavities, etc. A Boolean Difference operation can instantly create these precise cutouts. Regarding Union, it is utilized when combining multiple parts—like merging separate mechanical components or decorative elements—so that they can be printed as a single and cohesive piece. Finally, intersection is helpful for isolating the overlapping region of two shapes. For example, to ensure two parts fit together perfectly, one could intersect them to verify that a mating surface or channel is precisely aligned.
3D Mesh Boolean and 3D CAD Boolean. Main Diviging Lines

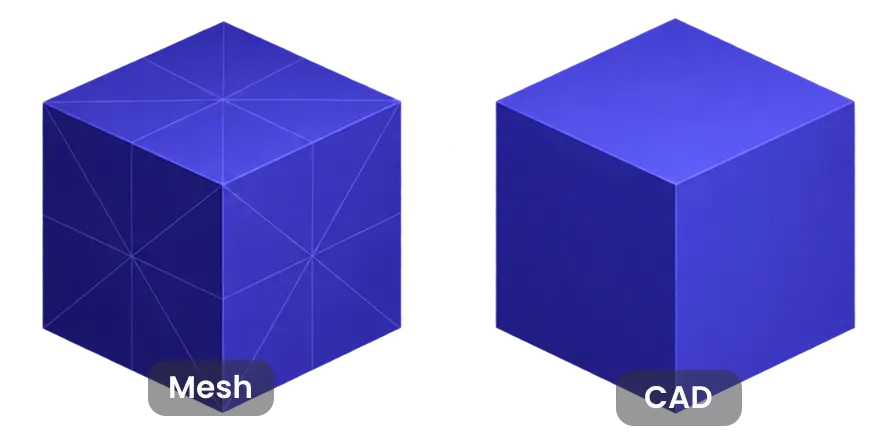

Speaking of Boolean operations in 3D modeling, everything hinges on where exactly your 3D data comes from. Assume, you work on a design via a typical CAD system, you naturally operate with a CAD Boolean. Once you export your design to a mesh format (e.g., STL, which is common for 3D printing), you convert all those curves and surfaces into a collection of triangles. At that point, any Boolean operation you perform is a 3D mesh Boolean. Alternatively, if you’re working with 3D scan data or sculpting software, you start out with a mesh right from the beginning.
Mind one caveat: Going from CAD to mesh, sometimes, introduces various defects, so a post-export mesh repair step might be necessary before you can reliably run mesh-based Boolean operations.
3D Mesh Boolean
Mesh-based Booleans operate on polygonal meshes (usually triangles). Essentially, such algorithms look at how polygons intersect and then merge, subtract, or isolate the resulting geometry. This property results in the following characteristics:
- Speed over accuracy. 3D Mesh Booleans can be quite swift, when absolute precision is not critical;
- Discrete, finite resolution. Meshes are inevitably limited by the density of their polygons. Fine details require a high vertex count. That factor can both slow down computation;
- Potential geometry issues. That is to say, meshes can have holes, non-manifold edges, etc. Such issues are even not necessarily related to resolution—ill-formed geometry could occur even in simple meshes. thus, fixing these flaws is often necessary before performing Boolean operations.
B-Rep aka 3D CAD Booleans
B-Rep stands for boundary representation. This is a more precise way of describing an object via mathematically defined surfaces (e.g., NURBS), along with the topological relationships between faces, edges, and vertices. As an outcome, with 3D Boolean in CAD we have:
- Mathematical exactness. Instead of approximating with polygons, B-Reps store curves and surfaces as parametric equations. This infinite precision means a circular hole is truly circular, not a many-sided polygon;
- Decreased proneness to breakages. Since each face and every edge is explicitly defined, 3D Boolean CAD operations are generally more robust (assuming that one’s CAD model is valid). For sure, geometry errors can still arise, but they are less frequent than with a poorly formed mesh;
- Complexity vs. flexibility. B-Rep operations can handle intricate, mathematically accurate parts. However, the overhead and learning curve may be higher compared to simple mesh editing, and specialized CAD software is typically required.
Such 3D Boolean capabilities—building upon B-Rep—are widely implemented in professional CAD programs like SOLIDWORKS, Autodesk Fusion 360, and PTC Creo (among others). Tools of this sort harness boundary representation to provide robust and precise Boolean operations in 3D modelling.
Boiling Things Down to Major Properties
Mesh-based Booleans often struggle with non-manifold geometry. This, in turn, can create artifacts such as gaps or overlaps that demand “healing” or other corrective measures. Meanwhile, although B-Reps do ensure higher precision, they might become computationally intensive when dealing with models containing thousands of faces, reducing their suitability for complex or organic shapes.
Aspect | 3D Mesh Boolean | 3D CAD Boolean |
|---|---|---|
Representation | Utilizes polygonal meshes to approximate surfaces | Relies on precise mathematical surfaces bounded by edges and vertices |
Precision | Resolution-dependent but can achieve precise results, if the mesh is well-formed (excluding voxel-based methods) | Exact, micron-level accuracy for mechanical and engineering designs |
Topology handling | Focuses on local mesh modifications at intersections | Maintains explicit topological relationships (faces, edges, vertices) with boundary operators |
Performance | Generally better for speed, with some implementations that can handle large meshes swiftly | Slower for highly complex models due to topological validation |
Some Advice and Best 3D Boolean Practices
Purposeful 3D Boolean operations require careful preparation of geometries, be that about working with meshes or B-Rep models. Based on our understanding and track record, we would put forward these best practices making clean and dependable outcomes possible:
- Meshes. Ensure your mesh has clean topology and is also free from issues, e.g., self-intersections, non-manifold edges, and open holes, before performing 3D Boolean operations. While Boolean operations can actually process meshes with varying densities, poor topology and geometric errors are the primary causes of failures or artifacts. Employ mesh healing tools to detect and resolve these issues in advance for more reliable results.
- CAD. When it comes to B-reps, properly organized your geometry matters. To achieve this goal, well-defined features and parametric constraints work fine. Keeping a structured design—which means having named features and clear dependencies—gives one strengthened control over modifications.
It also prevents unintended errors. Finally, unleash the potential of reference geometry—such as planes, axes, and sketches—to guide 3D Boolean operations. This measure will keep the risk of misalignment or failed unions low.
