MR.Box_Matrix4d Class Reference

arbitrary 4x4 matrix Generated from class MR.Matrix4d. This is the non-const reference to the struct. More...

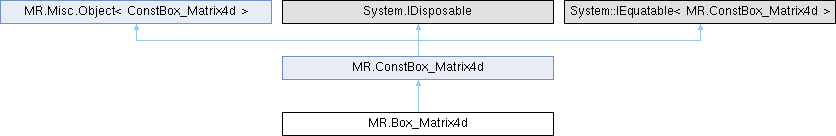

Inheritance diagram for MR.Box_Matrix4d:

Public Member Functions
unsafe	Box_Matrix4d (Matrix4d other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	Box_Matrix4d (ConstBox_Matrix4d _other)
	Generated copy constructor.
void	Assign (ConstBox_Matrix4d _other)
	Generated copy assignment.
unsafe	Box_Matrix4d ()
	Constructs an empty (default-constructed) instance.
unsafe	Box_Matrix4d (in MR.Vector4d x, in MR.Vector4d y, in MR.Vector4d z, in MR.Vector4d w)
	initializes matrix from 4 row-vectors Generated from constructor MR.Matrix4d.Matrix4d.
unsafe	Box_Matrix4d (in MR.Matrix3d r, in MR.Vector3d t)
	construct from rotation matrix and translation vector Generated from constructor MR.Matrix4d.Matrix4d.
unsafe	Box_Matrix4d (in MR.AffineXf3d xf)
	Generated from constructor MR.Matrix4d.Matrix4d.
unsafe new ref double	call (int row, int col)
	Generated from method MR.Matrix4d.operator().
unsafe void	setRotation (in MR.Matrix3d rot)
	Generated from method MR.Matrix4d.setRotation.
unsafe void	setTranslation (in MR.Vector3d t)
	Generated from method MR.Matrix4d.setTranslation.
unsafe new MR.Misc.? Ref< double >	data ()
	Generated from method MR.Matrix4d.data.
unsafe ref MR.Matrix4d	addAssign (in MR.Matrix4d b)
	Generated from function MR.operator+=.
unsafe ref MR.Matrix4d	subAssign (in MR.Matrix4d b)
	Generated from function MR.operator-=.
unsafe ref MR.Matrix4d	mulAssign (double b)
	Generated from function MR.operator*=.
unsafe ref MR.Matrix4d	divAssign (double b)
	Generated from function MR.operator/=.
Public Member Functions inherited from MR.ConstBox_Matrix4d
virtual void	Dispose ()
unsafe	ConstBox_Matrix4d (Matrix4d other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	ConstBox_Matrix4d (ConstBox_Matrix4d _other)
	Generated copy constructor.
unsafe	ConstBox_Matrix4d ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Matrix4d (in MR.Vector4d x, in MR.Vector4d y, in MR.Vector4d z, in MR.Vector4d w)
	initializes matrix from 4 row-vectors Generated from constructor MR.Matrix4d.Matrix4d.
unsafe	ConstBox_Matrix4d (in MR.Matrix3d r, in MR.Vector3d t)
	construct from rotation matrix and translation vector Generated from constructor MR.Matrix4d.Matrix4d.
unsafe	ConstBox_Matrix4d (in MR.AffineXf3d xf)
	Generated from constructor MR.Matrix4d.Matrix4d.
unsafe double	call (int row, int col)
	element access Generated from method MR.Matrix4d.operator().
unsafe MR.Vector4d	col (int i)
	column access Generated from method MR.Matrix4d.col.
unsafe double	trace ()
	computes trace of the matrix Generated from method MR.Matrix4d.trace.
unsafe double	normSq ()
	compute sum of squared matrix elements Generated from method MR.Matrix4d.normSq.
unsafe double	norm ()
	Generated from method MR.Matrix4d.norm.
unsafe MR.Matrix3d	submatrix3 (int i, int j)
	computes submatrix of the matrix with excluded i-th row and j-th column Generated from method MR.Matrix4d.submatrix3.
unsafe double	det ()
	computes determinant of the matrix Generated from method MR.Matrix4d.det.
unsafe MR.Matrix4d	inverse ()
	computes inverse matrix Generated from method MR.Matrix4d.inverse.
unsafe MR.Matrix4d	transposed ()
	computes transposed matrix Generated from method MR.Matrix4d.transposed.
unsafe MR.Matrix3d	getRotation ()
	Generated from method MR.Matrix4d.getRotation.
unsafe MR.Vector3d	getTranslation ()
	Generated from method MR.Matrix4d.getTranslation.
unsafe? double	data ()
	Generated from method MR.Matrix4d.data.
unsafe MR.Vector3d	call (in MR.Vector3d b)
	converts 3d-vector b in 4d-vector (b,1), multiplies matrix on it, and assuming the result is in homogeneous coordinates returns it as 3d-vector Generated from method MR.Matrix4d.operator().
bool	Equals (MR.ConstBox_Matrix4d? b)
override bool	Equals (object? other)

Static Public Member Functions
static unsafe implicit	operator Box_Matrix4d (in MR.AffineXf3d xf)
	Generated from constructor MR.Matrix4d.Matrix4d.
Static Public Member Functions inherited from MR.ConstBox_Matrix4d
static implicit	operator ConstBox_Matrix4d (Matrix4d other)
	Convert from a struct by copying it. Note that only ConstBox_Matrix4d has this conversion, Box_Matrix4d intentionally doesn't.
static unsafe implicit	operator ConstBox_Matrix4d (in MR.AffineXf3d xf)
	Generated from constructor MR.Matrix4d.Matrix4d.
static unsafe implicit	operator MR.AffineXf3d (MR.ConstBox_Matrix4d _this)
	Generated from conversion operator MR.Matrix4d.operator MR.AffineXf3d.
static MR.Matrix4d	zero ()
	Generated from method MR.Matrix4d.zero.
static MR.Matrix4d	identity ()
	Generated from method MR.Matrix4d.identity.
static MR.Matrix4d	scale (double s)
	returns a matrix that scales uniformly Generated from method MR.Matrix4d.scale.
static unsafe bool	operator== (MR.ConstBox_Matrix4d a, MR.ConstBox_Matrix4d b)
	Generated from function MR.operator==.
static unsafe bool	operator!= (MR.ConstBox_Matrix4d a, MR.ConstBox_Matrix4d b)
static unsafe MR.Matrix4d	operator+ (MR.ConstBox_Matrix4d a, in MR.Matrix4d b)
	Generated from function MR.operator+.
static unsafe MR.Matrix4d	operator- (MR.ConstBox_Matrix4d a, in MR.Matrix4d b)
	Generated from function MR.operator-.
static unsafe MR.Matrix4d	operator* (double a, MR.ConstBox_Matrix4d b)
	Generated from function MR.operator*.
static unsafe MR.Matrix4d	operator* (MR.ConstBox_Matrix4d b, double a)
	Generated from function MR.operator*.
static unsafe MR.Matrix4d	operator/ (ConstBox_Matrix4d b, double a)
	Generated from function MR.operator/.
static unsafe MR.Vector4d	operator* (MR.ConstBox_Matrix4d a, in MR.Vector4d b)
	x = a * b Generated from function MR.operator*.
static unsafe MR.Matrix4d	operator* (MR.ConstBox_Matrix4d a, in MR.Matrix4d b)
	product of two matrices Generated from function MR.operator*.

Properties
new ref MR.Vector4d	x [get]
	rows, identity matrix by default
new ref MR.Vector4d	y [get]
new ref MR.Vector4d	z [get]
new ref MR.Vector4d	w [get]
unsafe new ref MR.Vector4d	this[int row] [get]
	Generated from method MR.Matrix4d.operator[].
Properties inherited from MR.ConstBox_Matrix4d
ref readonly MR.Vector4d	x [get]
	rows, identity matrix by default
ref readonly MR.Vector4d	y [get]
ref readonly MR.Vector4d	z [get]
ref readonly MR.Vector4d	w [get]
unsafe ref readonly MR.Vector4d	this[int row] [get]
	row access Generated from method MR.Matrix4d.operator[].

Additional Inherited Members
Protected Member Functions inherited from MR.ConstBox_Matrix4d
virtual unsafe void	Dispose (bool disposing)

Detailed Description

arbitrary 4x4 matrix Generated from class MR.Matrix4d. This is the non-const reference to the struct.

Constructor & Destructor Documentation

Box_Matrix4d() [1/6]

unsafe MR.Box_Matrix4d.Box_Matrix4d ( Matrix4d other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

Box_Matrix4d() [2/6]

unsafe MR.Box_Matrix4d.Box_Matrix4d ( ConstBox_Matrix4d _other )

inline

Generated copy constructor.

Box_Matrix4d() [3/6]

unsafe MR.Box_Matrix4d.Box_Matrix4d ( )

inline

Constructs an empty (default-constructed) instance.

Box_Matrix4d() [4/6]

unsafe MR.Box_Matrix4d.Box_Matrix4d ( in MR.Vector4d x, in MR.Vector4d y, in MR.Vector4d z, in MR.Vector4d w )

inline

initializes matrix from 4 row-vectors Generated from constructor MR.Matrix4d.Matrix4d.

Box_Matrix4d() [5/6]

unsafe MR.Box_Matrix4d.Box_Matrix4d ( in MR.Matrix3d r, in MR.Vector3d t )

inline

construct from rotation matrix and translation vector Generated from constructor MR.Matrix4d.Matrix4d.

Box_Matrix4d() [6/6]

unsafe MR.Box_Matrix4d.Box_Matrix4d ( in MR.AffineXf3d xf )

inline

Generated from constructor MR.Matrix4d.Matrix4d.

Member Function Documentation

addAssign()

unsafe ref MR.Matrix4d MR.Box_Matrix4d.addAssign ( in MR.Matrix4d b )

inline

Generated from function MR.operator+=.

Assign()

void MR.Box_Matrix4d.Assign ( ConstBox_Matrix4d _other )

inline

Generated copy assignment.

call()

unsafe new ref double MR.Box_Matrix4d.call ( int row, int col )

inline

Generated from method MR.Matrix4d.operator().

data()

unsafe new MR.Misc.? Ref< double > MR.Box_Matrix4d.data ( )

inline

Generated from method MR.Matrix4d.data.

divAssign()

unsafe ref MR.Matrix4d MR.Box_Matrix4d.divAssign ( double b )

inline

Generated from function MR.operator/=.

mulAssign()

unsafe ref MR.Matrix4d MR.Box_Matrix4d.mulAssign ( double b )

inline

Generated from function MR.operator*=.

operator Box_Matrix4d()

static unsafe implicit MR.Box_Matrix4d.operator Box_Matrix4d ( in MR.AffineXf3d xf )

inlinestatic

Generated from constructor MR.Matrix4d.Matrix4d.

setRotation()

unsafe void MR.Box_Matrix4d.setRotation ( in MR.Matrix3d rot )

inline

Generated from method MR.Matrix4d.setRotation.

setTranslation()

unsafe void MR.Box_Matrix4d.setTranslation ( in MR.Vector3d t )

inline

Generated from method MR.Matrix4d.setTranslation.

subAssign()

unsafe ref MR.Matrix4d MR.Box_Matrix4d.subAssign ( in MR.Matrix4d b )

inline

Generated from function MR.operator-=.

Property Documentation

this[int row]

unsafe new ref MR.Vector4d MR.Box_Matrix4d.this[int row]

get

Generated from method MR.Matrix4d.operator[].

w

new ref MR.Vector4d MR.Box_Matrix4d.w

get

x

new ref MR.Vector4d MR.Box_Matrix4d.x

get

rows, identity matrix by default

y

new ref MR.Vector4d MR.Box_Matrix4d.y

get

z

new ref MR.Vector4d MR.Box_Matrix4d.z

get

---

The documentation for this class was generated from the following file:

• MRMatrix4.cs
