MR.ConstBox_Matrix4d Class Reference

arbitrary 4x4 matrix Generated from class MR.Matrix4d. This is the const reference to the struct. More...

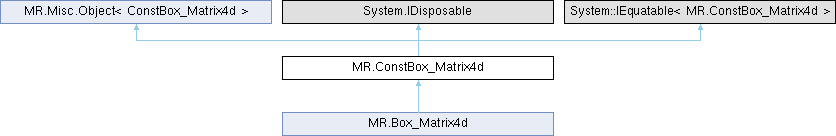

Inheritance diagram for MR.ConstBox_Matrix4d:

Classes
struct	_Underlying

Public Member Functions
unsafe	ConstBox_Matrix4d (Matrix4d other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
virtual void	Dispose ()
unsafe	ConstBox_Matrix4d (ConstBox_Matrix4d _other)
	Generated copy constructor.
unsafe	ConstBox_Matrix4d ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Matrix4d (in MR.Vector4d x, in MR.Vector4d y, in MR.Vector4d z, in MR.Vector4d w)
	initializes matrix from 4 row-vectors Generated from constructor MR.Matrix4d.Matrix4d.
unsafe	ConstBox_Matrix4d (in MR.Matrix3d r, in MR.Vector3d t)
	construct from rotation matrix and translation vector Generated from constructor MR.Matrix4d.Matrix4d.
unsafe	ConstBox_Matrix4d (in MR.AffineXf3d xf)
	Generated from constructor MR.Matrix4d.Matrix4d.
unsafe double	call (int row, int col)
	element access Generated from method MR.Matrix4d.operator().
unsafe MR.Vector4d	col (int i)
	column access Generated from method MR.Matrix4d.col.
unsafe double	trace ()
	computes trace of the matrix Generated from method MR.Matrix4d.trace.
unsafe double	normSq ()
	compute sum of squared matrix elements Generated from method MR.Matrix4d.normSq.
unsafe double	norm ()
	Generated from method MR.Matrix4d.norm.
unsafe MR.Matrix3d	submatrix3 (int i, int j)
	computes submatrix of the matrix with excluded i-th row and j-th column Generated from method MR.Matrix4d.submatrix3.
unsafe double	det ()
	computes determinant of the matrix Generated from method MR.Matrix4d.det.
unsafe MR.Matrix4d	inverse ()
	computes inverse matrix Generated from method MR.Matrix4d.inverse.
unsafe MR.Matrix4d	transposed ()
	computes transposed matrix Generated from method MR.Matrix4d.transposed.
unsafe MR.Matrix3d	getRotation ()
	Generated from method MR.Matrix4d.getRotation.
unsafe MR.Vector3d	getTranslation ()
	Generated from method MR.Matrix4d.getTranslation.
unsafe? double	data ()
	Generated from method MR.Matrix4d.data.
unsafe MR.Vector3d	call (in MR.Vector3d b)
	converts 3d-vector b in 4d-vector (b,1), multiplies matrix on it, and assuming the result is in homogeneous coordinates returns it as 3d-vector Generated from method MR.Matrix4d.operator().
bool	Equals (MR.ConstBox_Matrix4d? b)
override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Matrix4d (Matrix4d other)
	Convert from a struct by copying it. Note that only ConstBox_Matrix4d has this conversion, Box_Matrix4d intentionally doesn't.
static unsafe implicit	operator ConstBox_Matrix4d (in MR.AffineXf3d xf)
	Generated from constructor MR.Matrix4d.Matrix4d.
static unsafe implicit	operator MR.AffineXf3d (MR.ConstBox_Matrix4d _this)
	Generated from conversion operator MR.Matrix4d.operator MR.AffineXf3d.
static MR.Matrix4d	zero ()
	Generated from method MR.Matrix4d.zero.
static MR.Matrix4d	identity ()
	Generated from method MR.Matrix4d.identity.
static MR.Matrix4d	scale (double s)
	returns a matrix that scales uniformly Generated from method MR.Matrix4d.scale.
static unsafe bool	operator== (MR.ConstBox_Matrix4d a, MR.ConstBox_Matrix4d b)
	Generated from function MR.operator==.
static unsafe bool	operator!= (MR.ConstBox_Matrix4d a, MR.ConstBox_Matrix4d b)
static unsafe MR.Matrix4d	operator+ (MR.ConstBox_Matrix4d a, in MR.Matrix4d b)
	Generated from function MR.operator+.
static unsafe MR.Matrix4d	operator- (MR.ConstBox_Matrix4d a, in MR.Matrix4d b)
	Generated from function MR.operator-.
static unsafe MR.Matrix4d	operator* (double a, MR.ConstBox_Matrix4d b)
	Generated from function MR.operator*.
static unsafe MR.Matrix4d	operator* (MR.ConstBox_Matrix4d b, double a)
	Generated from function MR.operator*.
static unsafe MR.Matrix4d	operator/ (ConstBox_Matrix4d b, double a)
	Generated from function MR.operator/.
static unsafe MR.Vector4d	operator* (MR.ConstBox_Matrix4d a, in MR.Vector4d b)
	x = a * b Generated from function MR.operator*.
static unsafe MR.Matrix4d	operator* (MR.ConstBox_Matrix4d a, in MR.Matrix4d b)
	product of two matrices Generated from function MR.operator*.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Properties
unsafe ref readonly Matrix4d	_Ref [get]
	Get the underlying struct.
ref readonly MR.Vector4d	x [get]
	rows, identity matrix by default
ref readonly MR.Vector4d	y [get]
ref readonly MR.Vector4d	z [get]
ref readonly MR.Vector4d	w [get]
unsafe ref readonly MR.Vector4d	this[int row] [get]
	row access Generated from method MR.Matrix4d.operator[].
Properties inherited from MR.Misc.Object< ConstBox_Matrix4d >
virtual bool	_IsOwning [get]
	Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.

Additional Inherited Members
Protected Attributes inherited from MR.Misc.Object< ConstBox_Matrix4d >
bool	_IsOwningVal

Detailed Description

arbitrary 4x4 matrix Generated from class MR.Matrix4d. This is the const reference to the struct.

---

The documentation for this class was generated from the following file:

• MRMatrix4.cs
